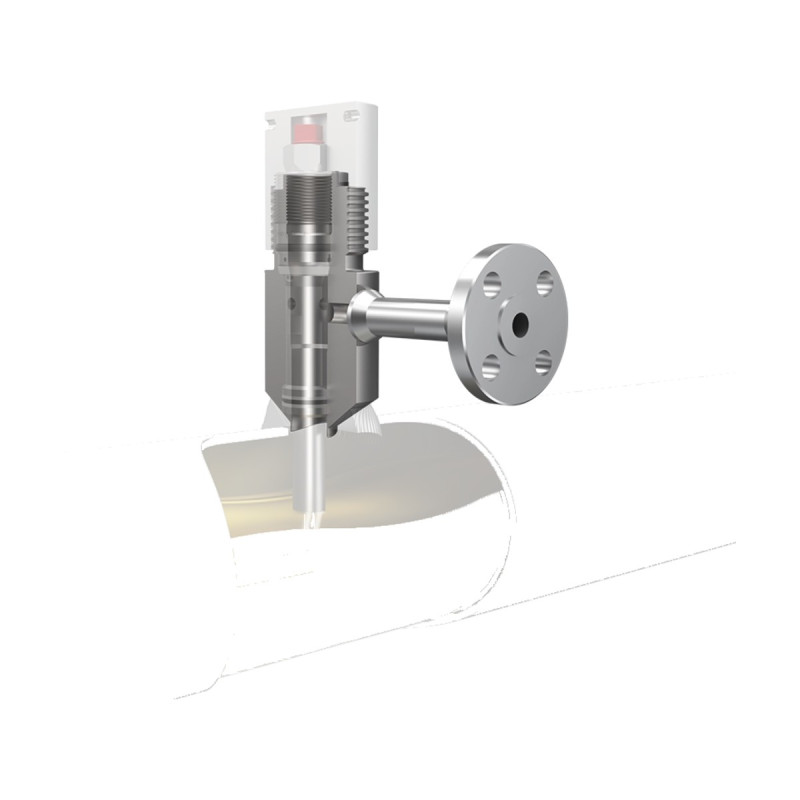

EuropCorr Mechanical Tee Access Fitting for Injection & Sampling
Mechanical 2" access fitting with side tee for chemical injection and sampling or sand probes. Flareweld, Buttweld, Socketweld, NPT or Flanged; tee 1/4" to 2", NPT or flanged.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Tee fittings are the most common configuration for chemical injection and sampling and for sand erosion probe assemblies. The main line connection is available as Flareweld, Buttweld, Socketweld, NPT or Flanged (ASME or API); the side tee connection is available in 1/4", 1/2", 3/4", 1" or 2", NPT threaded or flanged welded. Threaded tees are not recommended in sour service. If needed, the side NPT tee can be closed with a pipe plug so that the fitting can also carry coupons or probes.
Chemical inhibitors are one of the most practical ways to minimise and control corrosion in pipelines and vessels. With the EuropCorr retrievable injection and sampling system, inhibitors can be injected continuously or intermittently, and process fluids sampled, while the injection or sampling tube can be removed for cleaning under full line pressure with the Retrieval Tool Kit. The system consists of a Tee Access Fitting with a Solid Plug, to which a tube is fitted by means of an injection/sampling nut; an optional internal check valve between nut and tube prevents back-flow to the injection equipment.
Key features
- Line connection: Flareweld (2" to 36" or flat), Buttweld, Socketweld, NPT, Flanged ASME 150# to 2500# (RF, RJ, FF) or API 3000# to 10000#
- Side tee: 1/4", 1/2", 3/4", 1" or 2", Buttweld, Socketweld, NPT or Flanged
- Part number built from system, line connection, tee size and tee type (see datasheet)
- Optional check valve between nut and tube
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Maximum pressure | 6,000 psi (420 bar) or according to flange rating |
| Maximum temperature | 450 °F (232 °C) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156, PED (EU) |
| System | EuropCorr Mechanical Access System (2") |
| Spare parts for NPT threaded tees | ||
|---|---|---|
| Tee size | NPT nipple Part No. | Pipe plug Part No. |
| 1/4" | 360023 | 300002 |
| 1/2" | 360024 | 300003 |
| 3/4" | 360025 | 300004 |
| 1" | 360026 | 300005 |
| 2" | 360130 | 300009 |
Please state the line connection, line size or flange class, tee size and tee type in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
