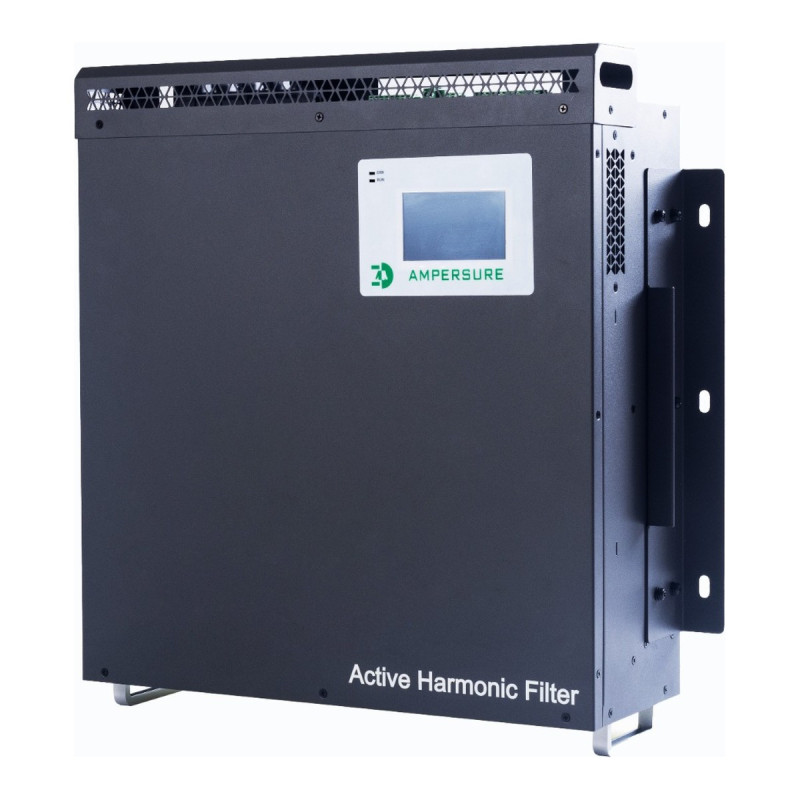

AHF Active Harmonic Filter
Modular active harmonic filter for 220 V to 800 V networks. Cancels harmonics from the 2nd to the 50th order (≥ 95%) with optional three-phase unbalance compensation. 15 A to 200 A per module, unlimited paralleling, wall or rack mounting.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The Active Harmonic Filter (AHF) measures the load current in real time, separates the harmonic components and drives IGBT power stages to inject a compensation current of equal amplitude and opposite phase. Harmonic currents generated by variable speed drives, rectifiers, UPS, LED lighting and other non-linear loads are cancelled at the source, protecting transformers, cables and capacitor banks and helping sites meet utility power quality limits.
The filter is built as compact modules (wall or rack mounting) that can be paralleled without limit to reach the required capacity, from 15 A up to several hundred amperes, on 220 V to 800 V networks.
Key features
- Fully digital DSP + CPLD control core, three-level topology and PWM control for precise compensation
- Harmonic compensation from the 2nd to the 50th order, compensation rate adjustable per order, capability ≥ 95%
- Selectable mode: harmonic compensation, or harmonic + three-phase unbalance compensation (unbalance ≤ 5%)
- Settable 100% current limiting for continuous operation without tripping on overload
- Modular design, unlimited paralleling, small footprint and easy maintenance
- Independent air ducts and compartment structure for stable long-term operation
- Touch screen display, 2 x RS485 and Wi-Fi monitoring
Available models
| Model | Capacity (A) | System voltage (V) | W x D x H (mm) | Weight (kg) |
|---|---|---|---|---|
| AMS AHF-0.4-25A/4L-W | 25 | 400 | 550 x 460 x 92.2 | 17.4 |
| AMS AHF-0.4-50A/4L-W | 50 | 400 | 550 x 460 x 92.2 | 17.9 |
| AMS AHF-0.4-75A/4L-W | 75 | 400 | 587 x 500 x 193.2 | 30.1 |
| AMS AHF-0.4-100A/4L-W | 100 | 400 | 624 x 500 x 243.2 | 39.6 |
| AMS AHF-0.4-150A/4L-W | 150 | 400 | 624 x 500 x 243.2 | 41.6 |
| AMS AHF-0.4-200A/4L-W | 200 | 400 | 785 x 511 x 252.0 | 48.9 |
| AMS AHF-0.5-100A/4L-W | 100 | 500 | 839 x 500 x 328.5 | 70.1 |
| AMS AHF-0.69-100A/4L-W | 100 | 690 | 839 x 500 x 328.5 | 70.1 |
| AMS AHF-0.8-100A/4L-W | 100 | 800 | 839 x 500 x 328.5 | 70.1 |
Model code: AMS AHF - voltage (0.22 / 0.4 / 0.5 / 0.69 / 0.8 kV) - rated current / 2L (single phase), 3L (3P3W) or 4L (3P4W) - W (wall), R (rack) or C (cabinet). A 220 V single-phase 25 A model and a 400 V 15 A model are also available.
Technical specifications
| Operating voltage | AC220V, AC380V, AC500V (±20%), AC690V (-20% to +15%), AC800V |
|---|---|
| Frequency | 50/60 Hz (45 to 63 Hz) |
| Grid structure | L/N (220 V), 3P3W and 3P4W (380 to 690 V), 3P3W (800 V) |
| Harmonic compensation range | 2nd to 50th order, adjustable rate per order |
| Harmonic compensation capability | ≥ 95% |
| Unbalance compensation | ≤ 5% (380 to 690 V series) |
| Full response time | < 40 ms |
| System efficiency | ≥ 97% |
| Switching frequency | 16 kHz (220/380 V), 12.8 kHz (500 to 800 V) |
| Modules in parallel | Unlimited |
| Overload capacity | 1.2 x rated current for 60 s |
| Cooling | Forced air |
| Noise | ≤ 60 dB (220 V), ≤ 65 dB |
| Communication | 2 x RS485 (Wi-Fi supported) |
| Protection | Overload, hardware/software overcurrent, over/undervoltage, unbalance, power supply fault, overtemperature, frequency anomaly, short circuit |
| Installation | Wall-mounted (W) or rack-mounted (R), cabinet on request |
| Cable entry | Top (wall-mounted), rear (rack-mounted) |
| Ambient temperature | -10 to +50 °C (derated above 40 °C) |
| Altitude | < 2000 m (derated above) |
| Relative humidity | ≤ 90%, non-condensing |
| Protection degree | IP20 (IP54 on request) |
Applications
Oil and gas facilities, chemical and petrochemical plants, metallurgy, cement and mining, water and wastewater treatment, automotive manufacturing, semiconductor plants, data centers, distributed photovoltaic plants, rail transit and distribution networks.
Documentation
Datasheet, EMC verification and EMC test report are available in the attachments. EMC tested by Global Testing Services (Shanghai) to EN IEC 61000-6-2:2019 and EN IEC 61000-6-4:2019 (report TEJS26082493751). Manufacturer quality, environmental and OH&S management systems certified to ISO 9001, ISO 14001 and ISO 45001. Sizing support is available: send us your single-line diagram or harmonic measurements with your quotation request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-PQ-101
Data sheet
- Manufacturer series
- AHF
- System voltage
- 220 V to 800 V
- Module capacity
- 15 A to 200 A
- Response time
- Less than 40 ms
- Harmonic compensation
- 2nd to 50th order (95% or more)
- Protection degree
- IP20 (IP54 on request)
- Mounting
- Wall or rack
- EMC standards
- EN IEC 61000-6-2 and 61000-6-4
