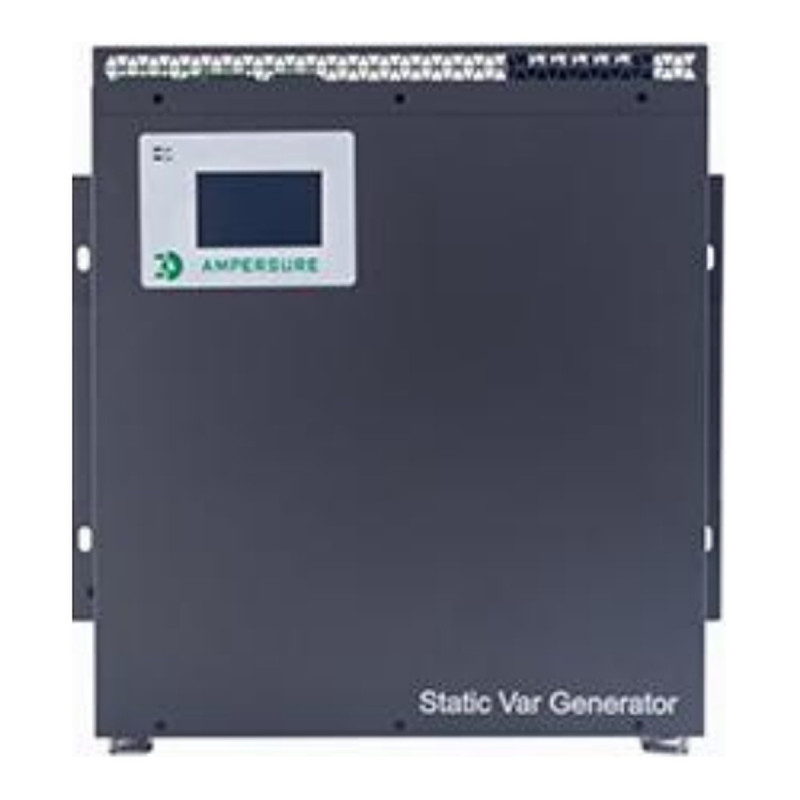

SVG Static Var Generator
Modular static var generator for 220 V to 800 V networks. Stepless inductive and capacitive reactive power compensation (≥ 99%) with full response under 10 ms and optional three-phase unbalance correction. 5 to 150 kvar per module, unlimited paralleling.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The Static Var Generator (SVG) connects a voltage source converter in parallel with the grid through a filter. By controlling the amplitude and phase of the converter output voltage, it supplies exactly the inductive or capacitive reactive power the load needs, continuously and without steps. Transient response is under 50 µs and full response under 10 ms, so there is no over- or under-compensation, even with fast fluctuating loads such as welders, cranes, compressors and motor starts.
Compared with capacitor banks, the SVG has no switching transients, no risk of resonance with network harmonics and keeps its output at low voltage, helping sites keep a high power factor and avoid utility reactive energy penalties.
Key features
- Fully digital DSP + CPLD control core, three-level topology and PWM control
- Reactive power compensation rate ≥ 99%, inductive and capacitive
- Optional three-phase unbalance compensation (unbalance ≤ 5%)
- Two external current sampling channels: low-voltage side sampling and compensation, or high-voltage side sampling with low-voltage side compensation
- Modular design, unlimited paralleling, small footprint and easy maintenance
- Independent air ducts and compartment structure for stable operation
- Touch screen display, 2 x RS485 and Wi-Fi monitoring
Available models
| Model | Capacity (kvar) | System voltage (V) | W x D x H (mm) | Weight (kg) |
|---|---|---|---|---|
| AMS SVG-0.22-5k/2L-W | 5 | 220 | 495 x 350 x 90.5 | 12 |
| AMS SVG-0.4-10k/4L-W | 10 | 400 | 550 x 460 x 92.2 | 17.4 |
| AMS SVG-0.4-15k/4L-W | 15 | 400 | 550 x 460 x 92.2 | 17.4 |
| AMS SVG-0.4-35k/4L-W | 35 | 400 | 550 x 460 x 92.2 | 17.9 |
| AMS SVG-0.4-50k/4L-W | 50 | 400 | 587 x 500 x 193.2 | 30.1 |
| AMS SVG-0.4-75k/4L-W | 75 | 400 | 624 x 500 x 243.2 | 39.6 |
| AMS SVG-0.4-100k/4L-W | 100 | 400 | 624 x 500 x 243.2 | 41.6 |
| AMS SVG-0.4-150k/4L-W | 150 | 400 | 785 x 511 x 252.0 | 48.9 |
| AMS SVG-0.5-90k/4L-W | 90 | 500 | 839 x 500 x 328.5 | 70.1 |
| AMS SVG-0.69-120k/4L-W | 120 | 690 | 839 x 500 x 328.5 | 70.1 |
| AMS SVG-0.8-150k/4L-W | 150 | 800 | 839 x 500 x 328.5 | 70.1 |
Model code: AMS SVG - voltage (0.22 / 0.4 / 0.5 / 0.69 / 0.8 kV) - rated capacity / 2L (single phase), 3L (3P3W) or 4L (3P4W) - W (wall), R (rack) or C (cabinet). 20 kvar modules are also available in the 400 V series.
Technical specifications
| Operating voltage | AC220V, AC380V, AC500V (±20%), AC690V (-20% to +15%), AC800V |
|---|---|
| Frequency | 50/60 Hz (45 to 63 Hz) |
| Grid structure | L/N (220 V), 3P3W and 3P4W (380 to 690 V), 3P3W (800 V) |
| Function | Reactive power, or reactive power + three-phase unbalance (380 to 690 V) |
| Reactive power compensation | ≥ 99% |
| Unbalance after compensation | ≤ 5% |
| Full response time | < 10 ms (transient < 50 µs) |
| System efficiency | ≥ 97% |
| Switching frequency | 16 kHz (220/380 V), 12.8 kHz (500 to 800 V) |
| Modules in parallel | Unlimited |
| Overload capacity | 1.2 x rated for 60 s |
| Noise | ≤ 60 dB (220 V), ≤ 65 dB |
| Communication | 2 x RS485 (Wi-Fi supported) |
| Protection | Overload, hardware/software overcurrent, over/undervoltage, unbalance, power supply fault, overtemperature, frequency anomaly, short circuit |
| Installation | Wall-mounted or rack-mounted, cabinet on request |
| Cable entry | Top (wall-mounted), rear (rack-mounted) |
| Ambient temperature | -10 to +50 °C (derated above 40 °C) |
| Altitude | < 2000 m (derated above) |
| Relative humidity | ≤ 90%, non-condensing |
| Protection degree | IP20 (IP54 on request) |
Applications
Oil and gas facilities, chemical and petrochemical plants, metallurgy, cement and mining, water and wastewater treatment, automotive manufacturing, semiconductor plants, data centers, distributed photovoltaic plants, rail transit and distribution networks.
Documentation
Datasheet, EMC verification and EMC test report are available in the attachments. EMC tested by Global Testing Services (Shanghai) to EN IEC 61000-6-2:2019 and EN IEC 61000-6-4:2019 (report TEJS26082493753). Manufacturer quality, environmental and OH&S management systems certified to ISO 9001, ISO 14001 and ISO 45001. Sizing support is available: send us your single-line diagram, power factor readings or harmonic measurements with your quotation request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-PQ-102
Data sheet
- Manufacturer series
- SVG
- System voltage
- 220 V to 800 V
- Module capacity
- 5 to 150 kvar
- Response time
- Less than 10 ms
- Protection degree
- IP20 (IP54 on request)
- Reactive power compensation
- 99% or more
- Mounting
- Wall or rack
- EMC standards
- EN IEC 61000-6-2 and 61000-6-4
