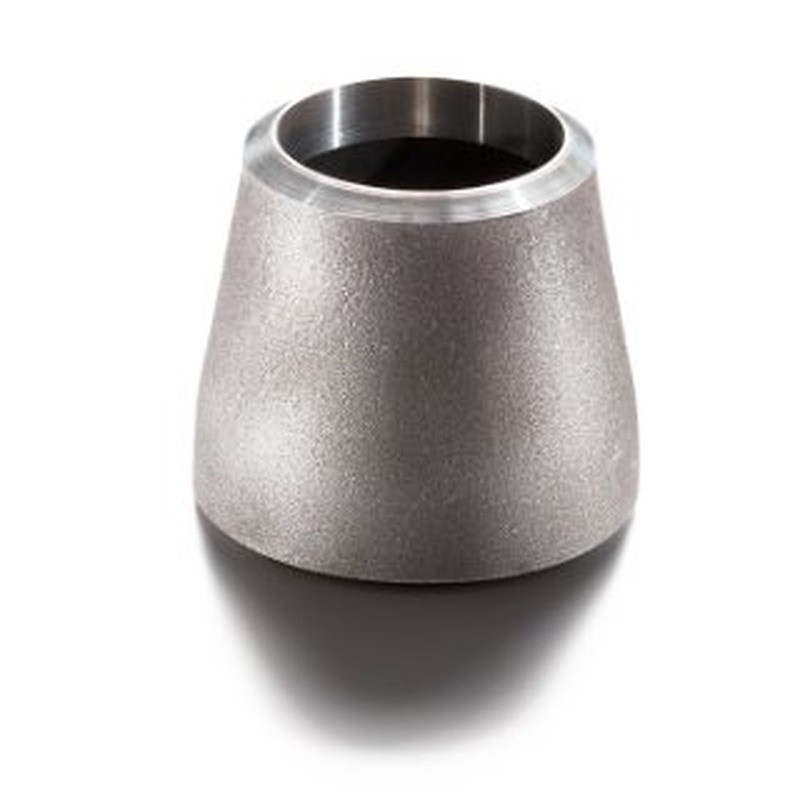

SARA Concentric and Eccentric Reducer, EN 10253-2 Type A

Carbon steel concentric and eccentric butt-weld reducers covering the standard transitions, manufactured by SARA to EN 10253-2 Type A. Available from DN 20 to DN 24" (large end), in seamless or welded execution depending on size and wall thickness, with 346 catalogued dimensions.

EN 10253-2 Type A: fittings with a reduced pressure factor, with wall thickness at the welding ends matching the connected pipe. SARA, a family-owned Romanian manufacturer since 1991, produces the complete range of carbon steel butt-weld fittings in Buzau under ISO 9001, PED 2014/68/EU (TÜV Rheinland) and DNV approvals, with its own ISO/IEC 17025 accredited test laboratory.

Key features

• Standard: EN 10253-2 Type A
• Size range: DN 20 to DN 24" (large end)
• Materials: ASTM A234 WPB, ASTM A420 WPL6, P235GH, P235GH TC1, P265GH, P265GH TC1, P355NH, P355NL1, P275NL1, P275NL2, L360N, S355J2H and 16Mo3 (other grades on request)
• Bevelled ends ready for butt welding
• EN 10204 3.1 inspection certificate as standard, 3.2 on request
• Manufactured under PED 2014/68/EU, ISO 9001, ISO 14001 and ISO 45001

Dimension overview

The attached PDF gives the full dimension table with all wall thicknesses and unit weights. Indicate size, wall thickness (or schedule), material grade and quantity in your quotation request.

Applications

Oil and gas pipelines and facilities, refineries and petrochemical plants, power plants, district heating, water networks, shipbuilding and general industrial piping.
