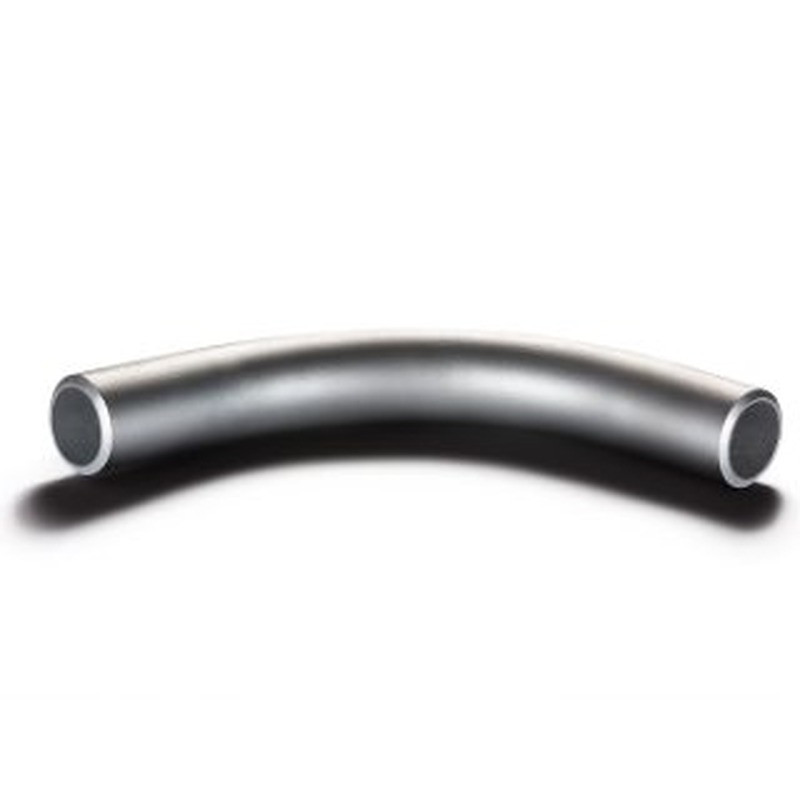

SARA Induction Bend up to R=10D, DN 50 to DN 1400

Hot induction bends manufactured by SARA to project geometry, with bending radius up to R=10D, from DN 50 to DN 1400. Induction bending gives long-radius bends with controlled wall thinning and ovality, used where standard elbows would cause excessive pressure drop or where pipeline pigging requires large radii.

Bends are produced to EN 10253-2 Type B, EN 14870-1 or ASME B16.49, with optional tangent lengths at each end. SARA, a family-owned Romanian manufacturer since 1991, works under ISO 9001, PED 2014/68/EU (TÜV Rheinland) and DNV approvals, with its own ISO/IEC 17025 accredited test laboratory.

Key features

• Standards: EN 10253-2 Type B, EN 14870-1, ASME B16.49
• Size range: DN 50 to DN 1400
• Bending radius up to R=10D, any angle
• Tangent lengths to customer specification
• Materials: ASTM A234 WPB, ASTM A420 WPL6, P235GH, P235GH TC1, P265GH, P265GH TC1, P355NH, P355NL1, P275NL1, P275NL2, L360N, S355J2H and 16Mo3 (other grades on request)
• EN 10204 3.1 inspection certificate as standard, 3.2 on request

How to order

Dimensions are made to order. Send us for each bend: DN (or OD), wall thickness, material grade, bending radius, angle, tangent lengths, standard and quantity. Our team returns a quotation with drawing and lead time.

Applications

Oil and gas transmission pipelines, piggable lines, gathering networks, refinery and petrochemical piping, power plants and district heating.
