KOSO 501T / 511T Top Guided Control Valve (Globe and Angle)
Top guided single seated control valve, globe (501T) or angle (511T) body, 1/2" to 8" (DN 15 to DN 200), ASME Class 150 to 2500. Linear, equal percentage or on-off characteristics, leakage class IV to VI, NACE MR0175 available.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The KOSO series 501T (globe) and 511T (angle) are top guided single seated control valves with unbalanced and balanced plug designs. Compact and simple, they cover small to large flow capacities for cavitation-free liquid service as well as steam and gas service within noise limits. For severe duty, the multi-hole cage guided 550G/560G and KOSO VECTOR series are available.
Designed by Nihon KOSO (Japan) and manufactured by KOSO India in Nashik to ASME B16.34, with quality systems to ISO 9001 and API Spec Q1.
Key features
- High trim capacity: wide range of trim Cv per valve size, giving high flow capacity per size
- Suitable for services with solid particles
- Tight shut-off easily achieved, up to ANSI/FCI 70-2 Class VI
- Fine flow control and wide rangeability with contoured plug design
- Easy maintenance: all internal components removable from the top
- Pneumatic diaphragm, pneumatic cylinder, electric or hydraulic actuation
Standard specification
| Series | 501T globe / 511T angle |
|---|---|
| Body size | Unbalanced plug: 1/2" to 8" (DN 15 to DN 200), Class 150 to 600; 1" to 4" (DN 25 to DN 100), Class 900 to 2500. Balanced plug: 5" to 8" (DN 125 to DN 200), Class 150 to 600 |
| Body rating | ASME Class 150, 300, 600, 900, 1500 and 2500 (EN / PN on request) |
| End connections | Flanged RF, FF, RTJ (ASME B16.5 / B16.47), socket weld 2" and below (ASME B16.11), butt weld 3" and above (ASME B16.25) |
| Plug form | P-port or Q-port single seated |
| Flow characteristics | Linear, equal percentage, on-off |
| Body and bonnet materials | WCB, WCC, WC6, WC9, C5, C12A, LCB, LCC, CF8, CF8M, CF3M, CF8C, duplex SS, Alloy 625, Alloy 825, Monel, Hastelloy C |
| Trim materials | 300 and 400 series SS, 17-4 PH, alloy steels, duplex SS, Alloy 625/825, Monel, Hastelloy C, Stellite overlay |
| Bonnet types | Standard -17 to +230 °C, fin extension -45 to -17 °C or above +230 °C, long extension -196 to -45 °C, bellows seal option |
| Gland packing | PTFE V-ring, PTFE carbon fibre, graphite |
| Leakage class | ANSI/FCI 70-2 Class IV, V or VI, MSS SP-61 |
| NACE | NACE MR0175 / MR0103 as applicable |
| Optional tests | Fugitive emission ISO 15848-1/-2 (Class A, B, C), Cv test, helium leak, cryogenic, vacuum |
| Certifications available | PED/CE 2014/68/EU, ATEX 2014/34/EU, SIL, IBR, CRN, TR CU |
Applications
Oil and gas onshore and offshore, FPSO, LNG, refineries and petrochemical plants, power plants, fertilizer and steel plants: flow, pressure, level and temperature control, drain, cryogenic and high temperature service.
Documentation
The KOSO India 501T/511T standard specification (sectional views, Cv tables per pressure class and dimensions) is available in the attachments. Send us your process data sheet (fluid, flow, pressures, temperature) with your quotation request so that KOSO can size the valve and actuator.

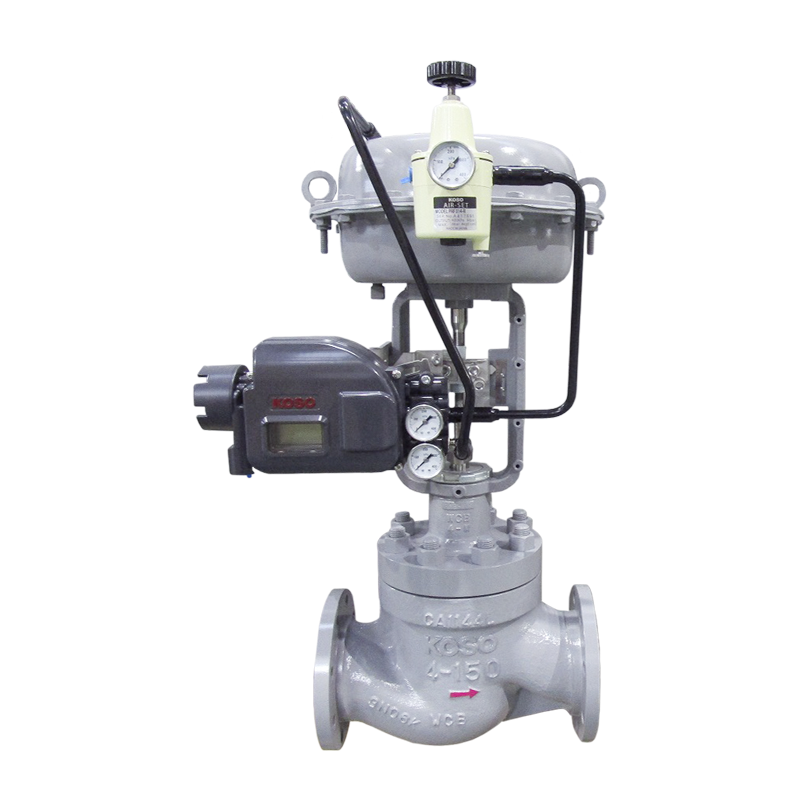

KOSO-501T
Data sheet
- Manufacturer series
- 501T / 511T
- Size range
- 1/2 in to 8 in (DN 15 to DN 200)
- Origin
- KOSO India (Nashik)
- Valve type
- Top guided globe and angle control valve
- Pressure class
- ASME 150 to 2500
- Leakage class
- ANSI/FCI 70-2 Class IV to VI
- Actuation
- Pneumatic / electric / hydraulic
