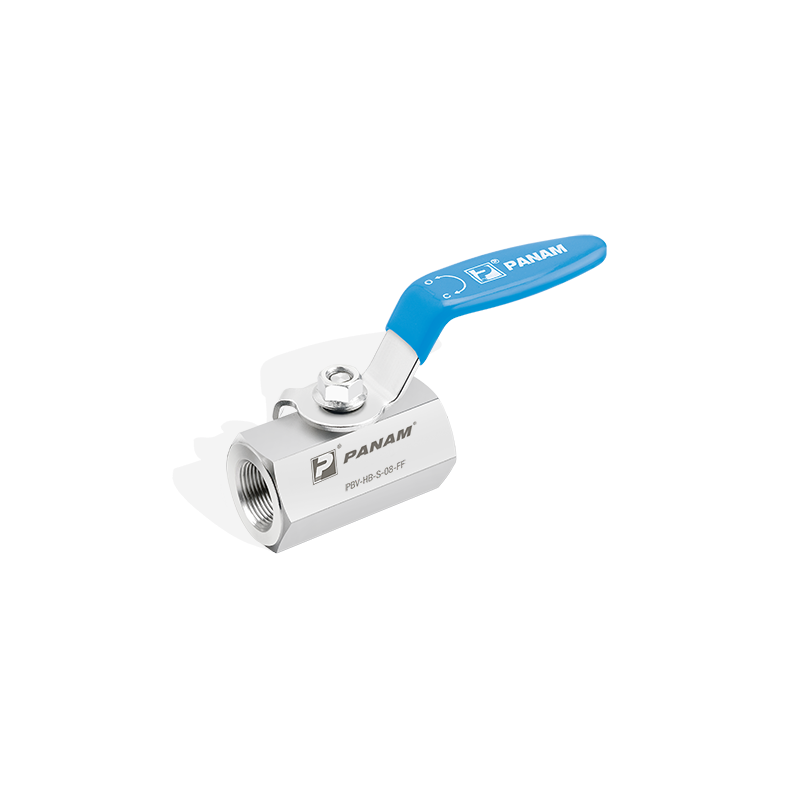

PANAM Ball Valve HB Series One-Piece (Medium Pressure, 2,000 psi)
Compact one-piece hex body ball valves with large orifice, 1/4" to 1" and 6 to 25 mm OD, threaded (NPT, BSPT, BSPP, M20x1.5), PANAM tube fitting or male x tube ends, 2,000 psi (138 bar), Cv 1.25 to 17.35. SS 316 standard, modified PTFE or PCTFE seats.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM Ball Valves HB Series of one-piece design are compact medium pressure valves for general applications. Their larger orifice gives higher flow rates, and they are characterised by long service life and low torque. They are designed for bi-directional flow in fully open or fully closed position.
The range includes threaded versions (female, male and male x female) and versions with PANAM tube fittings at both ends or a male thread x tube fitting combination, in inch and metric sizes. A two-position stainless steel handle shows open and closed positions, with a locking mechanism as an option.
Every valve is hydrostatically tested in accordance with MSS-SP-99 (body at 1.5 times, seat at 1.1 times the maximum working pressure) and the seat and stem seal are tested in nitrogen at 1,000 psi (6.9 MPa).
Key features
- One-piece compact design with large orifice for high flow
- Bi-directional flow, full open or full closed service
- Long service life and low torque
- Two-position SS handle, optional locking mechanism
- Modified PTFE (std) or PCTFE seats
- Options: NACE MR-01-75, oxygen cleaning, 1,000 psi rating
Standard specification
| Maximum working pressure | 2,000 psi (138 bar) standard; 1,000 psi (68 bar) option |
|---|---|
| Flow coefficient | Cv 1.25 to 17.35 |
| Connection sizes | 1/4" to 1", 6 mm to 25 mm OD, M20x1.5 |
| End connections | Female x female, male x female, male x male, PANAM tube fitting, male x tube fitting |
| Threads | NPT, BSPT, BSPP, metric |
| Body material | SS 316 (ASTM A479) standard; Monel 400, Hastelloy C276, duplex, super duplex, 6MO, Inconel on request |
| Temperature (modified PTFE) | -40 to 204°C (-40 to 400°F) |
| Temperature (PCTFE) | -54 to 149°C (-65 to 300°F) |
| Testing | MSS-SP-99, nitrogen test at 1,000 psi |
Configurations
| Ends | Sizes | Example part number |
|---|---|---|
| Female x Female (NPT, BSPT, BSPP, M20x1.5) | 1/4" to 1" | PBV-HB-S-08-FF |
| Male x Female (NPT, BSPT, BSPP, M20x1.5) | 1/4" to 1" | PBV-HB-S-08G-MF |
| Male x Male | 1/4" to 1" | PBV-HB-S-08G-MM |
| PANAM tube fitting (inch / metric) | 1/4" to 1", 6 mm to 25 mm | PBV-HB-S-M12-OD |
| Male NPT x PANAM tube fitting | 1/4" to 1" | PBV-HB-S-08-MOD |
The part number gives PBV-HB, material, connection size, thread type, connection type, seat material (LH modified PTFE std, PCTFE), working pressure (blank 2,000 psi, 1K 1,000 psi) and options (SG, OXY, LH locking handle). Example: PBV-HB-S-08G-MM = SS 316, 1/2" BSPP male x male, 2,000 psi.
Applications
General purpose shut-off on utility, instrument air, water and process lines where high flow is needed. Instrumentation and process lines in oil and gas, refineries, petrochemical and chemical plants, power generation and offshore installations.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-BV-HB-2K
Data sheet
- Manufacturer series
- HB Series one-piece
- Product type
- Instrumentation ball valve
- Size range
- 1/4 in to 1 in
- Pressure rating
- 2000 psi
- Material
- SS 316 standard
- Origin
- India
