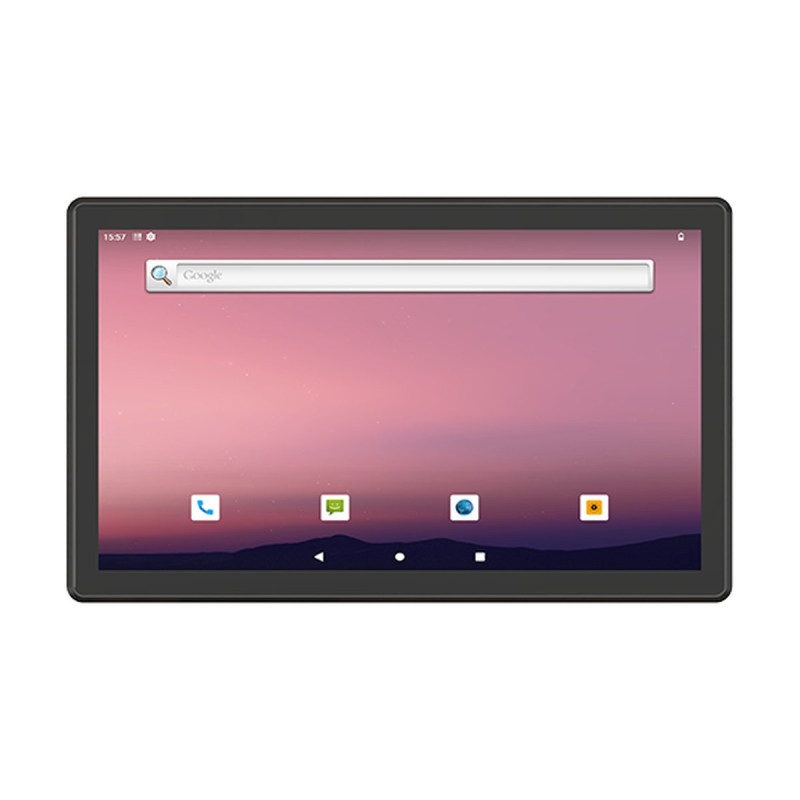

Emdoor EM-P18R 18.5 inch Industrial Panel PC
18.5″ industrial panel PC for embedded control and smart terminals.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Emdoor 18.5 inch industrial panel pc P18R integrates the industrial-grade RK3568 ARM chip, delivering powerful performance and energy efficiency for harsh industrial scenarios. Running Android 12, it enables flexible customization and intuitive operation, optimizing productivity across applications.
Key features
- CPU: RK3568
- GPU: Mali-G52-2EE
- Operating system: Android 12
- Resolution: 1920*1080
- Screen size: 18.5 inches
Specifications
| Basic parameters | |
|---|---|
| Dimensions | 457*279*54 mm |
| Machine weight | 3..22kg |
| Machine color | Black |
| Display | 18.5 inch LCD 16:9, resolution 1920*1080 , 250nits |
| Touch screen | 10 PCAP |
| Camera | / |
| I/O Interface | Type A USB: USB3.0*1,USB3.0*1OTG USB2.0 *2 DC IN 12V-24V Power connector *1 3.5mm Standard Earphone Jack *1 RJ45 *1 (10M/100M/i000M adaptive) DB9 PORT RS232*2 (Mainboard switchable to RS485:RS485*1,RS232*1) HDMI*1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | WiFi 802.11a/b/g/n/ac Frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | No |
| 1D | No |
| 2D | No |
| Fingerprint | No |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
Specifications may change without notice. Final configuration, certifications and lead time are confirmed in our quotation.
EMDOOR-EM-P18R
