- New

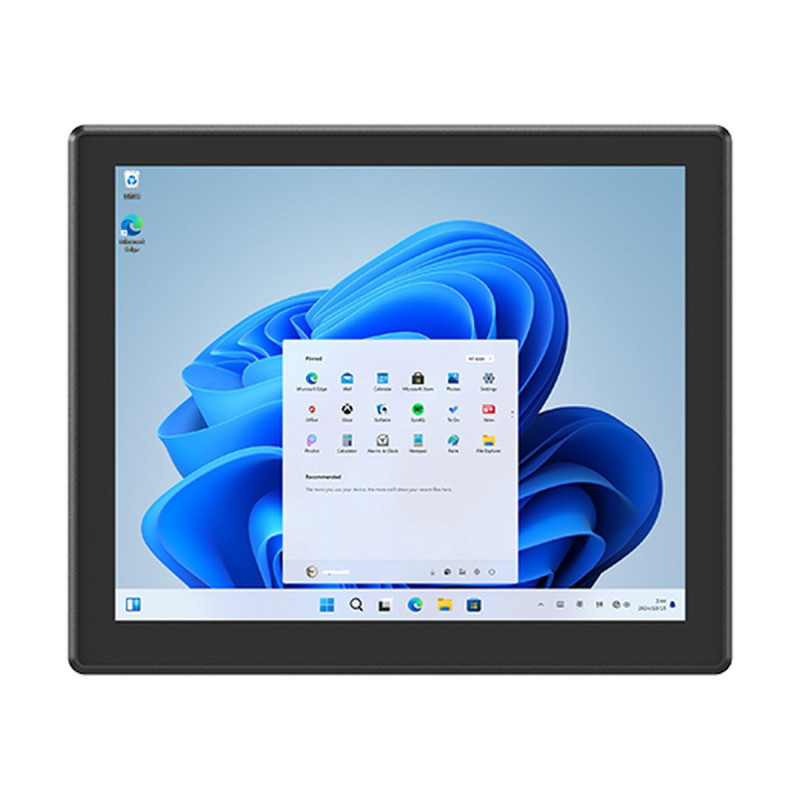

Emdoor EM-P17J 17 inch Industrial Panel PC Windows
17″ Windows industrial panel PC for HMI and machine control.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The 17 inch industrial panel pc P17J is a powerhouse. Powered by Intel® Celeron® Processor N5100 and running Windows 11. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
Key features
- CPU: Intel® Celeron® Processor N5100
- GPU: Intel UHD
- Operating system: Windows 11 Pro
- Resolution: 1280*1024
- Screen size: 17 inches
Specifications
| Basic parameters | |
|---|---|
| Dimensions | 401*332*57 mm |
| Machine weight | 4.18kg |
| Machine color | Black |
| Display | 17 inch LCD 4:3, resolution 1280*1024, 500nits |
| Touch screen | 10 PCAP |
| Camera | / |
| I/O Interface | TypeA USB:USB3.0*2 + USB2.0 *2 DC IN 12V-24V Power connector *1 3.5mm Standard Earphone Jack *1 RJ45 *2 (10M/100M/i000M adaptive) DB9 PORT RS232*2 (Configurable via onboard jumper cap to: RS485*1, RS232*1) HDMI2.0 TypeA*1 |
| Power adapter | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Wireless Communications | |
| WIFI | WIFI 802.11 (a/b/g/n/ac), frequency 2.4G+5G dual frequency WIFI |
| Bluetooth | BT5.0 |
| 2G/3G/4G/5G | 2G/3G/4G |
| GNSS | / |
| Performance parameters | |
| CPU | Intel® Celeron® Processor N5100 |
| GPU | Intel UHD |
| Operating system | Windows 11 Pro |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | / |
| Data collection | |
| NFC | No |
| 1D | No |
| 2D | No |
| Fingerprint | No |
| Product reliability | |
| Operating temperature | -30℃~70℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 Front Panel |
| Drop height | 1.22m drop resistance |
Specifications may change without notice. Final configuration, certifications and lead time are confirmed in our quotation.
