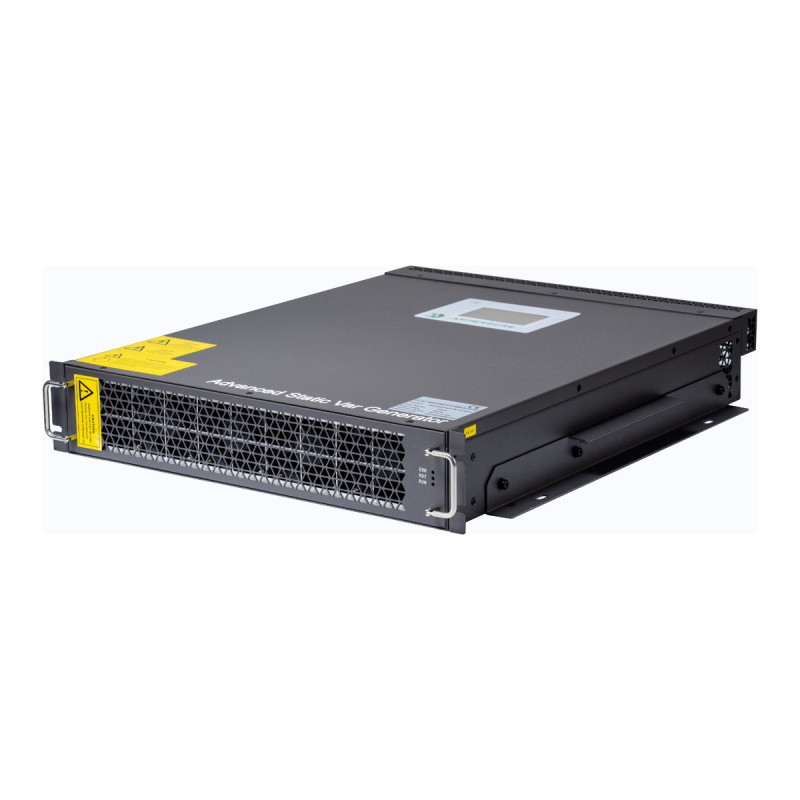

ASVG Advanced Static Var Generator
All-in-one advanced static var generator: reactive power (≥ 99%), harmonics from the 2nd to the 50th order (≥ 95%) and three-phase unbalance compensation in one module. 5 to 150 kvar, 220 V to 800 V, wall, rack or cabinet installation.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The Advanced Static Var Generator (ASVG) is a current-type power quality device that monitors the load current in real time and adjusts the phase and amplitude of its inverter output to compensate reactive power, harmonic currents and three-phase unbalance simultaneously. One device replaces a separate SVG and active harmonic filter, with fast response and high cost-effectiveness.
Its neutral conductor filtering capability is twice that of the phase conductors (three times on request), which makes it well suited to buildings and plants with many single-phase non-linear loads.
Key features
- Fully digital DSP + CPLD control core with three-level topology
- Any combination of reactive power, harmonic and unbalance compensation
- Reactive power compensation ≥ 99%, harmonic compensation ≥ 95% from the 2nd to the 50th order, adjustable per order
- Unbalance after compensation ≤ 5%
- Neutral zero-sequence current filtering 2 x phase capability (3 x on request)
- Two external current sampling channels, low-voltage or high-voltage side sampling
- Modular, unlimited paralleling: wall-mounted, rack-mounted modules or complete ASVG cabinets
Available models
| Model | Capacity (kvar) | System voltage (V) | W x D x H (mm) | Weight (kg) |
|---|---|---|---|---|
| AMS ASVG-0.22-5k/4L-W | 5 | 220 | 495 x 350 x 90.5 | 12 |
| AMS ASVG-0.4-10k/4L-W | 10 | 400 | 550 x 460 x 92.2 | 17.4 |
| AMS ASVG-0.4-15k/4L-W | 15 | 400 | 550 x 460 x 92.2 | 17.4 |
| AMS ASVG-0.4-35k/4L-W | 35 | 400 | 550 x 460 x 92.2 | 17.9 |
| AMS ASVG-0.4-50k/4L-W | 50 | 400 | 587 x 500 x 193.2 | 30.1 |
| AMS ASVG-0.4-75k/4L-W | 75 | 400 | 624 x 500 x 243.2 | 39.6 |
| AMS ASVG-0.4-100k/4L-W | 100 | 400 | 624 x 500 x 243.2 | 41.6 |
| AMS ASVG-0.4-150k/4L-W | 150 | 400 | 785 x 511 x 252.0 | 48.9 |
| AMS ASVG-0.5-90k/4L-W | 90 | 500 | 839 x 500 x 328.5 | 70.1 |
| AMS ASVG-0.69-120k/4L-W | 120 | 690 | 839 x 500 x 328.5 | 70.1 |
| AMS ASVG-0.8-120k/4L-W | 120 | 800 | 839 x 500 x 328.5 | 70.1 |
Model code: AMS ASVG - voltage (0.22 / 0.4 / 0.5 / 0.69 / 0.8 kV) - rated capacity / 3L (3P3W) or 4L (3P4W) - W (wall), R (rack) or C (cabinet). 20 kvar modules are also available in the 400 V series. Modules can be assembled into ready-to-install ASVG cabinets.
Technical specifications
| Operating voltage | AC220V, AC380V, AC500V (±20%), AC690V (-20% to +15%), AC800V |
|---|---|
| Frequency | 50/60 Hz (45 to 63 Hz) |
| Grid structure | L/N (220 V), 3P3W and 3P4W (380 to 690 V), 3P3W (800 V) |
| Functions | Reactive power, harmonics and unbalance in any combination (unbalance not on 220 V L/N and 800 V series) |
| Reactive power compensation | ≥ 99% |
| Harmonic compensation | ≥ 95%, 2nd to 50th order |
| Unbalance after compensation | ≤ 5% |
| Neutral filtering capability | 2 x phase capability (3 x on request) |
| Full response time | Reactive power < 10 ms, harmonics < 40 ms |
| System efficiency | ≥ 97% |
| Switching frequency | 32 kHz (220 V), 16 kHz (380 V), 12.8 kHz (500 to 800 V) |
| Modules in parallel | Unlimited |
| Overload capacity | 1.2 x rated for 60 s |
| Noise | ≤ 60 dB (220 V), ≤ 65 dB |
| Communication | 2 x RS485 (Wi-Fi supported) |
| Protection | Overload, hardware/software overcurrent, over/undervoltage, unbalance, power supply fault, overtemperature, frequency anomaly, short circuit |
| Installation | Wall-mounted, rack-mounted or cabinet |
| Cable entry | Top (wall-mounted), rear (rack-mounted) |
| Ambient temperature | -10 to +50 °C (derated above 40 °C) |
| Altitude | < 2000 m (derated above) |
| Relative humidity | ≤ 90%, non-condensing |
| Protection degree | IP20 (IP54 on request) |
Applications
Oil and gas facilities, chemical and petrochemical plants, metallurgy, cement and mining, water and wastewater treatment, automotive manufacturing, semiconductor plants, data centers, distributed photovoltaic plants, rail transit and distribution networks.
Documentation
Datasheet, EMC verification and EMC test report are available in the attachments. EMC tested by Global Testing Services (Shanghai) to EN IEC 61000-6-2:2019 and EN IEC 61000-6-4:2019 (report TEJS26082493752). Manufacturer quality, environmental and OH&S management systems certified to ISO 9001, ISO 14001 and ISO 45001. Sizing support is available: send us your single-line diagram, power factor readings or harmonic measurements with your quotation request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-PQ-103
Data sheet
- Manufacturer series
- ASVG
- System voltage
- 220 V to 800 V
- Module capacity
- 5 to 150 kvar
- Response time
- Less than 10 ms (reactive) and 40 ms (harmonics)
- Harmonic compensation
- 2nd to 50th order (95% or more)
- Protection degree
- IP20 (IP54 on request)
- Reactive power compensation
- 99% or more
- Mounting
- Wall or rack or cabinet
- EMC standards
- EN IEC 61000-6-2 and 61000-6-4
