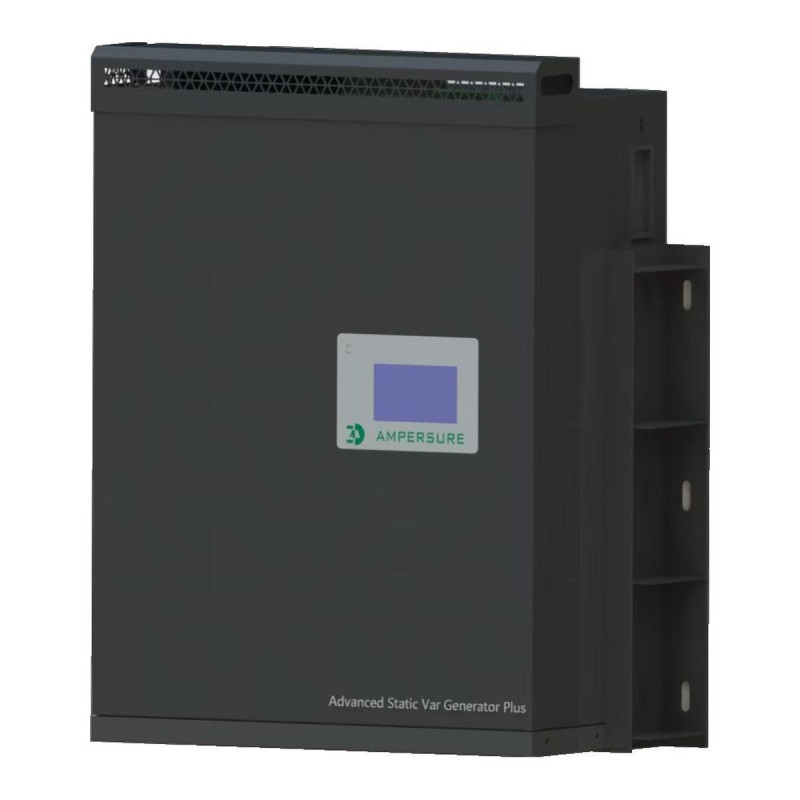

ASVG-Plus Advanced Static Var Generator
High-capacity advanced static var generator: reactive power, harmonic (2nd to 50th) and unbalance compensation, neutral filtering 3 x phase capability and Class A EMC emissions. 37 to 100 kvar per module on 220 V and 400 V networks.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The ASVG-Plus connects a voltage source converter in parallel with the grid through a filter and uses advanced reactive power, harmonic and three-phase active power detection to compensate reactive current, harmonic currents and unbalance at the same time. Its neutral zero-sequence filtering capability reaches three times the phase capability, and its radiated and conducted emissions meet Class A limits according to the manufacturer, giving superior EMC behaviour and stability.
Typical uses include hospitals, data centers, pharmaceutical and semiconductor plants, petrochemical sites and buildings with heavy single-phase non-linear loads.
Key features
- DSP + CPLD fully digital control core with three-level topology
- Any combination of reactive power, harmonic and unbalance compensation
- Reactive power compensation ≥ 99%, harmonic compensation ≥ 95% (2nd to 50th, adjustable per order), unbalance ≤ 5%
- Neutral zero-sequence current filtering 3 x phase capability
- Radiated and conducted emissions to Class A (manufacturer data), resonance protection
- Two external current sampling channels, modular and parallelable without limit
Available models
| Model | Capacity (kvar) | System voltage (V) | W x D x H (mm) | Weight (kg) |
|---|---|---|---|---|
| AMS ASVG-Plus-0.22-37k/4L-W | 37 | 220 | 760 x 600 x 241.2 | 74 |
| AMS ASVG-Plus-0.22-50k/4L-W | 50 | 220 | 760 x 600 x 241.2 | 74 |
| AMS ASVG-Plus-0.4-75k/4L-W | 75 | 400 | 760 x 600 x 241.2 | 74 |
| AMS ASVG-Plus-0.4-100k/4L-W | 100 | 400 | 760 x 600 x 241.2 | 74 |
Model code: AMS ASVG-Plus - voltage (0.22 / 0.4 kV) - rated capacity / 3L (3P3W) or 4L (3P4W) - W (wall), R (rack) or C (cabinet).
Technical specifications
| Operating voltage | AC220V or AC380V (±20%) |
|---|---|
| Frequency | 50/60 Hz (45 to 63 Hz) |
| Grid structure | 3P3W, 3P4W |
| Functions | Reactive power, harmonics and unbalance in any combination |
| Reactive power compensation | ≥ 99% |
| Harmonic compensation | ≥ 95%, 2nd to 50th order |
| Unbalance after compensation | ≤ 5% |
| Neutral filtering capability | 3 x phase capability |
| Full response time | Reactive power < 10 ms, harmonics < 40 ms |
| System efficiency | ≥ 97% |
| Switching frequency | 16 kHz |
| Modules in parallel | Unlimited |
| Overload capacity | 1.2 x rated for 60 s |
| Noise | ≤ 65 dB |
| Communication | 2 x RS485 (Wi-Fi supported) |
| Protection | Overload, hardware/software overcurrent, over/undervoltage, unbalance, power supply fault, overtemperature, frequency anomaly, short circuit, resonance |
| EMC (manufacturer data) | Radiated and conducted emissions meet Class A limits |
| Installation | Wall-mounted or rack-mounted |
| Ambient temperature | -10 to +50 °C (derated above 40 °C) |
| Altitude | < 2000 m (derated above) |
| Relative humidity | ≤ 90%, non-condensing |
| Protection degree | IP20 (IP54 on request) |
Applications
Oil and gas facilities, chemical and petrochemical plants, metallurgy, cement and mining, water and wastewater treatment, automotive manufacturing, semiconductor plants, data centers, distributed photovoltaic plants, rail transit and distribution networks.
Documentation
The manufacturer datasheet is available in the attachments. Manufacturer quality, environmental and OH&S management systems certified to ISO 9001, ISO 14001 and ISO 45001. Test reports are available on request. Sizing support is available: send us your single-line diagram and measurements with your quotation request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-PQ-104
Data sheet
- Manufacturer series
- ASVG-Plus
- System voltage
- 220 V and 400 V
- Module capacity
- 37 to 100 kvar
- Harmonic compensation
- 2nd to 50th order (95% or more)
- Protection degree
- IP20 (IP54 on request)
- Reactive power compensation
- 99% or more
- Mounting
- Wall or rack
- Neutral filtering
- 3 x phase capability
