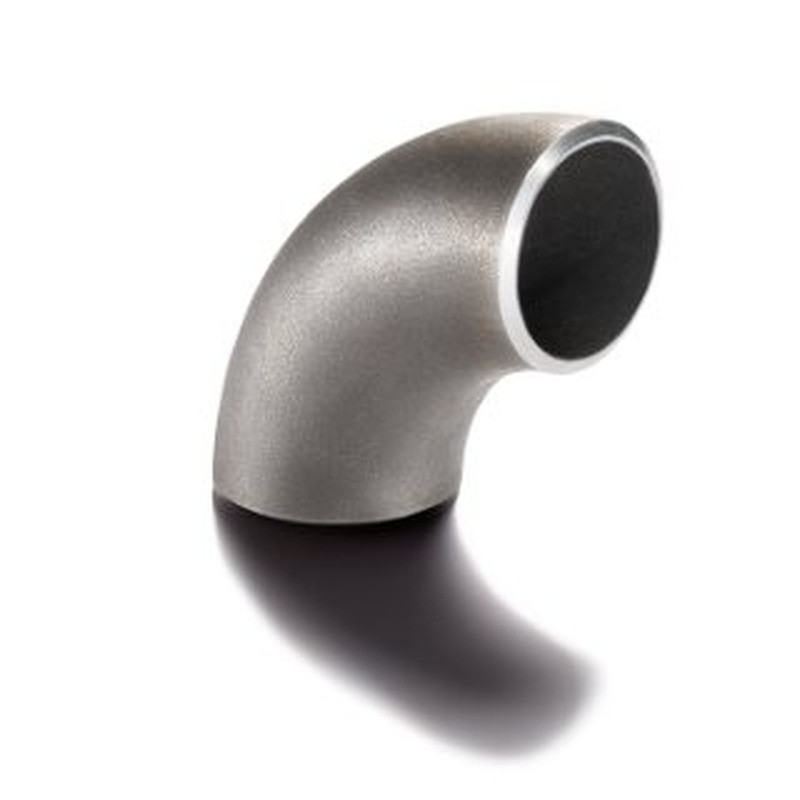

SARA Butt-Weld Elbow R=1.5D, ASME B16.9
Carbon steel butt-weld elbows 90° and 45°, bending radius R=1.5D (Long Radius), manufactured by SARA to ASME B16.9. 1/2" to 48", 133 dimensions. Carbon and low-temperature steel grades, EN 10204 3.1 certificates. Full dimension table in the attached PDF.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Carbon steel butt-weld elbows 90° and 45°, bending radius R=1.5D (Long Radius), manufactured by SARA to ASME B16.9. Available from 1/2" to 48", in seamless or welded execution depending on size and wall thickness, with 133 catalogued dimensions.
Dimensions to ASME B16.9 (factory-made wrought butt-welding fittings), NPS sizes with wall thickness by schedule. Typical material: ASTM A234 WPB, or A420 WPL6 for low-temperature service. SARA, a family-owned Romanian manufacturer since 1991, produces the complete range of carbon steel butt-weld fittings in Buzau under ISO 9001, PED 2014/68/EU (TÜV Rheinland) and DNV approvals, with its own ISO/IEC 17025 accredited test laboratory.
Key features
- Standard: ASME B16.9
- Size range: 1/2" to 48"
- Materials: ASTM A234 WPB, ASTM A420 WPL6, P235GH, P235GH TC1, P265GH, P265GH TC1, P355NH, P355NL1, P275NL1, P275NL2, L360N, S355J2H and 16Mo3 (other grades on request)
- Bevelled ends ready for butt welding
- EN 10204 3.1 inspection certificate as standard, 3.2 on request
- Manufactured under PED 2014/68/EU, ISO 9001, ISO 14001 and ISO 45001
Dimension overview
| Size | OD mm | Center to end 90° (mm) | Center to end 45° (mm) | Wall thickness mm (schedule) |
|---|---|---|---|---|
| 1/2" | 21.3 (0.840") | 38 | 16 | 2.77 (STD), 3.73 (XS) |
| 3/4" | 26.7 (1.050") | 38 | 19 | 2.87 (STD), 3.91 (XS) |
| 1" | 33.4 (1.315") | 38 | 22 | 3.38 (STD), 4.55 (XS), 6.35 (SCH 160) |
| 1¼" | 42.2 (1.660") | 48 | 25 | 3.56 (STD), 4.85 (XS), 6.35 (SCH 160) |
| 1½" | 48.3 (1.900") | 57 | 29 | 3.68 (STD), 5.08 (XS), 7.14 (SCH 160), 10.15 (XXS) |
| 2" | 60.3 (2.375") | 76 | 35 | 3.91 (STD), 5.54 (XS), 8.74 (SCH 160), 11.07 (XXS) |
| 2½" | 73 (2.875") | 95 | 44 | 5.16 (STD), 7.01 (XS) |
| 3" | 88.9 (3.500") | 114 | 51 | 5.49 (STD), 7.62 (XS), 11.13 (SCH 160), 15.24 (XXS) |
| 3½" | 101.6 (4.000") | 133 | 57 | 5.74 (STD), 8.08 (XS) |
| 4" | 114.3 (4.500") | 152 | 64 | 6.02 (STD), 8.56 (XS), 11.13 (SCH 120), 13.49 (SCH 160), 17.12 (XXS) |
| 5" | 141.3 (5.563") | 190 | 79 | 6.55 (STD), 9.53 (XS), 12.7 (SCH 120), 19.05 (XXS) |
| 6" | 168.3 (6.625") | 229 | 95 | 7.11 (STD), 10.97 (XS), 14.27 (SCH 120), 18.26 (SCH 160), 21.95 (XXS) |
| 8" | 219.1 (8.625") | 305 | 127 | 6.35 (SCH 20), 7.04 (SCH 30), 8.18 (STD), 10.31 (SCH 60), 12.7 (XS), 15.09 (SCH 100), 18.26 (SCH 120), 20.62 (SCH 140), 22.23 (XXS), 23.01 (SCH 160) |
| 10" | 273 (10.75") | 381 | 159 | 6.35 (SCH 20), 7.8 (SCH 30), 9.27 (STD), 12.7 (XS), 15.09 (SCH 80), 18.26 (SCH 100), 21.44 (SCH 120), 25.4 (SCH 140), 28.58 (SCH 160) |
| 12" | 323.8 (12.75") | 457 | 190 | 6.35 (SCH 20), 8.38 (SCH 30), 9.53 (STD), 10.31 (SCH 40), 12.7 (XS), 14.27 (SCH 60), 17.48 (SCH 80), 21.44 (SCH 100), 28.58 (SCH 140) |
| 14" | 355.6 (14.00") | 533 | 222 | 6.35 (SCH 10), 7.92 (SCH 20), 9.53 (STD), 11.13 (SCH 40), 12.7 (XS), 15.09 (SCH 60), 19.05 (SCH 80), 23.83 (SCH 100) |
| 16" | 406.4 (16.00") | 610 | 254 | 6.35 (SCH 10), 7.92 (SCH 20), 9.53 (STD), 12.7 (XS), 16.66 (SCH 60), 21.44 (SCH 80) |
| 18" | 457 (18.00") | 686 | 286 | 9.53 (STD), 11.13 (SCH 30), 12.7 (XS), 14.27 (SCH 40) |
| 20" | 508 (20.00") | 762 | 318 | 6.35 (SCH 10), 9.53 (STD), 12.7 (XS), 15.09 (SCH 40), 20.62 (SCH 60), 26.19 (SCH 80) |
| 22" | 559 (22.00") | 838 | 343 | 9.53 (STD), 12.7 (XS) |
| 24" | 610 (24.00") | 914 | 381 | 9.53 (STD), 12.7 (XS), 14.27 (SCH 30), 17.48 (SCH 40), 24.61 (SCH 60), 30.96 (SCH 80) |
| 28" | 711 (28.00") | 1067 | 438 | 7.92 (SCH 10), 9.53 (STD), 12.7 (XS), 15.88 (SCH 30) |
| 30" | 762 (30.00") | 1143 | 470 | 7.92 (SCH 10), 9.53 (STD), 12.7 (XS), 15.88 (SCH 30) |
| 32" | 813 (32.00") | 1219 | 502 | 7.92 (SCH 20), 9.53 (STD), 12.7 (XS), 15.88 (SCH 30), 17.48 (SCH 40) |
| 34" | 864 (34.00") | 1295 | 533 | 7.92 (SCH 20), 9.53 (STD), 12.7 (XS), 15.88 (SCH 30), 17.48 (SCH 40) |
| 36" | 914 (36.00") | 1372 | 565 | 7.92 (SCH 10), 9.53 (STD), 12.7 (XS), 15.88 (SCH 30), 19.05 (SCH 40) |
| 38" | 965 (38.00") | 1448 | 600 | 9.53 (STD), 12.7 (XS) |
| 40" | 1016 (40.00") | 1524 | 632 | 9.53 (STD), 12.7 (XS) |
| 42" | 1067 (40.00") | 1600 | 660 | 9.53 (STD), 12.7 (XS) |
| 44" | 1118 (44.00") | 1676 | 695 | 9.53 (STD), 12.7 (XS) |
| 48" | 1219 (48.00") | 1829 | 759 | 9.53 (STD), 12.7 (XS) |
The attached PDF gives the full dimension table with all wall thicknesses, inch values and unit weights. Indicate size, wall thickness (or schedule), material grade and quantity in your quotation request.
Applications
Oil and gas pipelines and facilities, refineries and petrochemical plants, power plants, district heating, water networks, shipbuilding and general industrial piping.
SARA-EL15D-ASME
Data sheet
- Manufacturer series
- SARA butt-weld fittings
- Size range
- 1/2" to 48"
- Material
- Carbon steel (WPB P235GH P265GH and others)
- Standard
- ASME B16.9
- Fitting type
- 90° and 45° elbows R=1.5D
- Bending radius
- R=1.5D
- Certificate
- EN 10204 3.1 (3.2 on request)
