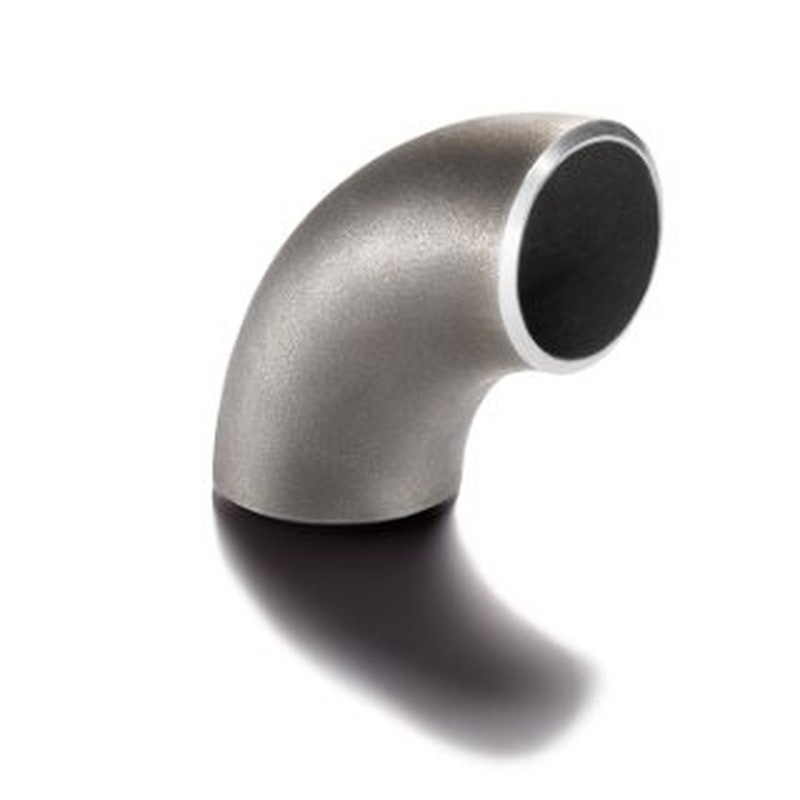

SARA Butt-Weld Elbow R=1D, DIN 2605
Carbon steel butt-weld elbows 90°, bending radius R=1D (Short Radius), manufactured by SARA to DIN 2605. DN 32 to DN 1400, 15 dimensions. Carbon and low-temperature steel grades, EN 10204 3.1 certificates. Full dimension table in the attached PDF.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Carbon steel butt-weld elbows 90°, bending radius R=1D (Short Radius), manufactured by SARA to DIN 2605. Available from DN 32 to DN 1400, in seamless or welded execution depending on size and wall thickness, with 15 catalogued dimensions.
DIN 2605 is the former German elbow standard, replaced by EN 10253 but still widely specified for existing installations. SARA, a family-owned Romanian manufacturer since 1991, produces the complete range of carbon steel butt-weld fittings in Buzau under ISO 9001, PED 2014/68/EU (TÜV Rheinland) and DNV approvals, with its own ISO/IEC 17025 accredited test laboratory.
Key features
- Standard: DIN 2605
- Size range: DN 32 to DN 1400
- Materials: ASTM A234 WPB, ASTM A420 WPL6, P235GH, P235GH TC1, P265GH, P265GH TC1, P355NH, P355NL1, P275NL1, P275NL2, L360N, S355J2H and 16Mo3 (other grades on request)
- Bevelled ends ready for butt welding
- EN 10204 3.1 inspection certificate as standard, 3.2 on request
- Manufactured under PED 2014/68/EU, ISO 9001, ISO 14001 and ISO 45001
Dimension overview
| Size | OD mm | Center to end 90° (mm) | Wall thickness mm |
|---|---|---|---|
| DN 32 | 38 | 32 | 3.6 |
| DN 100 | 108 | 100 | 5.6, 6.3, 8.8 |
| DN 125 | 133 | 125 | 5 |
| DN 150 | 159 | 150 | 5.6 |
| DN 1400 | 1420 | 1420 | 8, 8.8, 10, 11, 12.5, 14.2, 16, 17.5, 20 |
The attached PDF gives the full dimension table with all wall thicknesses and unit weights. Indicate size, wall thickness (or schedule), material grade and quantity in your quotation request.
Applications
Oil and gas pipelines and facilities, refineries and petrochemical plants, power plants, district heating, water networks, shipbuilding and general industrial piping.
SARA-EL1D-DIN
Data sheet
- Manufacturer series
- SARA butt-weld fittings
- Size range
- DN 32 to DN 1400
- Material
- Carbon steel (WPB P235GH P265GH and others)
- Standard
- DIN 2605
- Fitting type
- 90° elbows R=1D
- Bending radius
- R=1D
- Certificate
- EN 10204 3.1 (3.2 on request)
