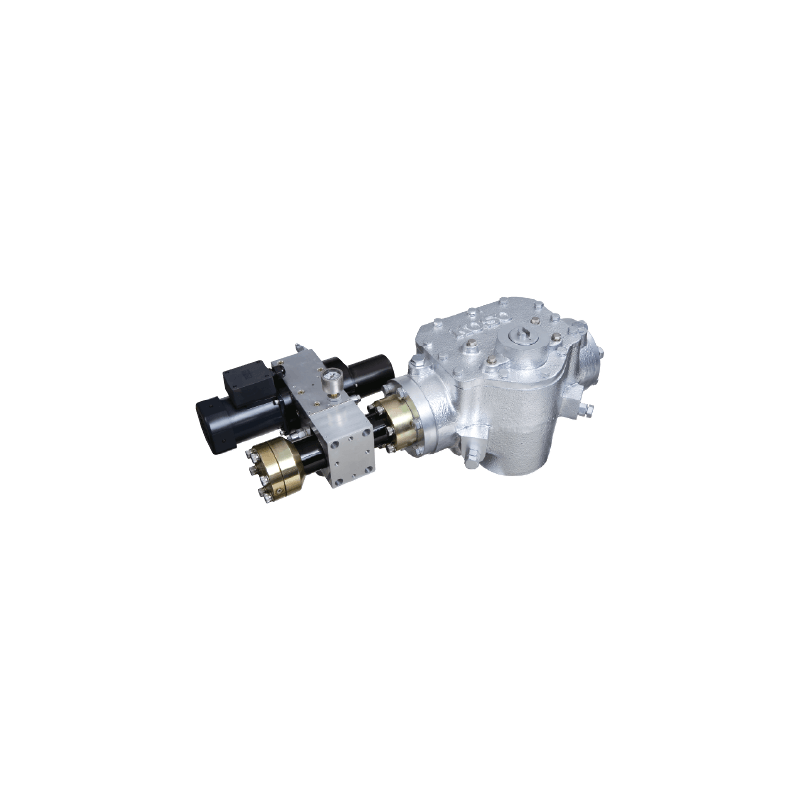

KOSO M-MAC 4800 Electro-Hydraulic Actuator
Compact modular electro-hydraulic actuator, linear up to 110,000 N or rotary up to 20,000 N·m, 4-20 mA control, positioning accuracy better than 0.1 %, IP65.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The KOSO M-MAC 4800 series electro-hydraulic actuator combines the power of hydraulics, the reliability of solid state electronics and user-configured control. All hydraulic components are packaged in a stand-alone modular actuator: simply install and connect power and signal.
Key features
- Linear, rotary and crank arm versions
- Positioning accuracy better than 0.1 %
- 4-20 mA, 1-5 V or two-position control
- IP65 enclosure
- Manual hand pump and accumulator options
Standard specification
| Type | Linear Stem Motion Type / Rotary Stem Motion Type / Crank Arm Motion Type |
|---|---|
| Models | 4800LA / 4800RA / 4800DA |
| Max. output | 110000 N / 20000 N·m / 10000 N·m |
| Power source | 100/200V AC 50/60Hz Options: 200 to 240V AC, 380 to 440V AC 50/60Hz |
| Max. stroke/angle | 150mm / 90° |
| Control signal | 4 to 20mA DC, 1 to 5V DC, Two position, Manual(up/down push-button) |
| Environment temp. | Actuator: -10 to +60°C Control Enclosure; -10 to +50°C |
| Positioning accuracy | < 0.1% of full stroke |
| Enclosure type | Protection class IP65 or equivalent |
| Options | Manual Handpump, Accumulator |
Applications
Automation of linear and rotary control and on-off valves in oil and gas, power, chemical and process plants.
Documentation
Detailed datasheets are available on request. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
KOSO-4800
Data sheet
- Manufacturer series
- 4800 M-MAC
- Product type
- Electro-hydraulic actuator
- Size range
- On request
- Origin
- KOSO group
- Rating / output
- Up to 110000 N
