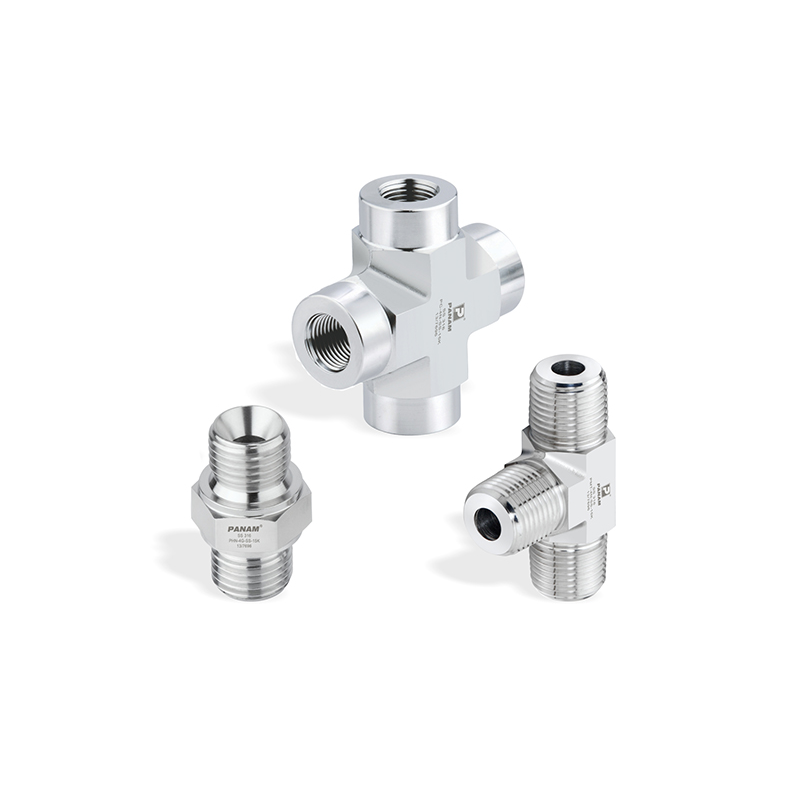

PANAM High Pressure Pipe Fittings (NPT, BSPP, 37° JIC, up to 15,000 psi)
High pressure threaded pipe fittings, 1/16" to 2", NPT, ISO parallel (BSPP), ISO tapered, 37° JIC and swivel ends, rated 15,000 psi (1034 bar) or 10,000 psi depending on size. Nipples, couplings, adapters, plugs, caps, elbows, tees, crosses and swivel unions. SS 316 standard.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM High Pressure Pipe Fittings cover a complete range of threaded connections for high pressure instrumentation and hydraulic systems, with working pressures up to 15,000 psi (1034 bar) and higher ratings on request. Working pressure meets the requirements of ANSI/ASME B31.3 at ambient temperature.
Straight fittings are machined from bar stock and shaped fittings from forgings; elbows have a radius junction for a smooth flow path. All NPT threads meet ASME/ANSI B1.20.1, every fitting is marked with size, material and heat code, and threads are capped for protection. Fittings are offered in SS 316 as standard, with brass, Alloy 400, Alloy 600, carbon steel, Hastelloy, duplex 2205 and duplex 2507 on request.
PANAM fittings are 100% factory tested and comply with NACE MR0175 and NACE MR0103 with heat code traceability.
Key features
- Working pressure up to 15,000 psi (1034 bar), higher on request
- Bar stock straight fittings and forged shaped fittings
- Radius junction elbows for smooth flow
- Marked with size, material and heat code
- NPT threads to ASME B1.20.1; ISO parallel to ISO 228; ISO tapered to ISO 7-1
- Threads capped and properly packaged
Standard specification
| Working pressure | 15,000 psig (15K) or 10,000 psig (10K) depending on size |
|---|---|
| Size range | 1/16" to 2" |
| Threads | NPT, ISO tapered (BSPT), ISO parallel (BSPP), metric, SAE/MS straight, 37° flare (JIC), swivel |
| Standard material | SS 316 (bar stock ASTM A276 / ASME SA479, forgings ASTM A182 / ASME SA182) |
| Other materials | Brass, Alloy 400, Alloy 600, carbon steel, Hastelloy, duplex 2205, duplex 2507 |
| Design code | ANSI/ASME B31.3 at ambient temperature |
Product range
| Fitting | Code | Ends | Example part number |
|---|---|---|---|
| Hex nipple / reducing hex nipple | PHN / PRHN | NPT, BSPP, NPT x BSPP, 37° JIC, swivel | PHN-4N-SS-15K |
| Hex long nipple | PHLN | NPT x NPT | PHLN-4N-SS-L1 |
| Swivel union | PSU | BSPP swivel | PSU-8GSWL-6GSWL-SS-10K |
| Hex coupling / reducing hex coupling | PHC / PRHC | NPT, BSPP | PHC-8N-SS-15K |
| Adapter | PA | NPT, BSPP | PA-2N-4N-SS-15K |
| Hex plug / tube plug | PHP / PTP | NPT, BSPP, 37° JIC | PHP-6G-SS-15K |
| Pipe cap | PPC | NPT, BSPP, 37° JIC | PPC-6N-SS-15K |
| Male elbow / female elbow / street elbow | PME / PFE / PSE | NPT, BSPP | PFE-8N-SS-15K |
| Swivel male elbow / swivel union elbow | PME / PUE | BSPP swivel | PUE-4GSWL-SS-10K |
| Female tee / male tee / swivel union tee | PFT / PMT / PUT | NPT, BSPP, swivel | PFT-8N-SS-15K |
| Female cross | PFC | NPT | PFC-6N-SS-15K |
Part numbers give the fitting type, each port size and thread type (N NPT, R ISO tapered, G ISO parallel, M metric, S SAE, J 37° flare, SWL swivel, JSWL JIC swivel), the material and the pressure rating (15K 15,000 psig or 10K 10,000 psig). Example: PHN-4N-4N-SS-15K = hex nipple, 1/4" NPT both ends, SS 316, 15,000 psig.
Applications
High pressure hydraulic, chemical injection and instrument piping, test equipment and wellhead control panels. Instrumentation and process lines in oil and gas, refineries, petrochemical and chemical plants, power generation and offshore installations.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-HPPF
Data sheet
- Manufacturer series
- HP Pipe Fittings
- Product type
- High pressure pipe fitting
- Size range
- 1/16 in to 2 in
- Pressure rating
- 15000 psi
- Material
- SS 316 standard (alloys on request)
- Origin
- India
