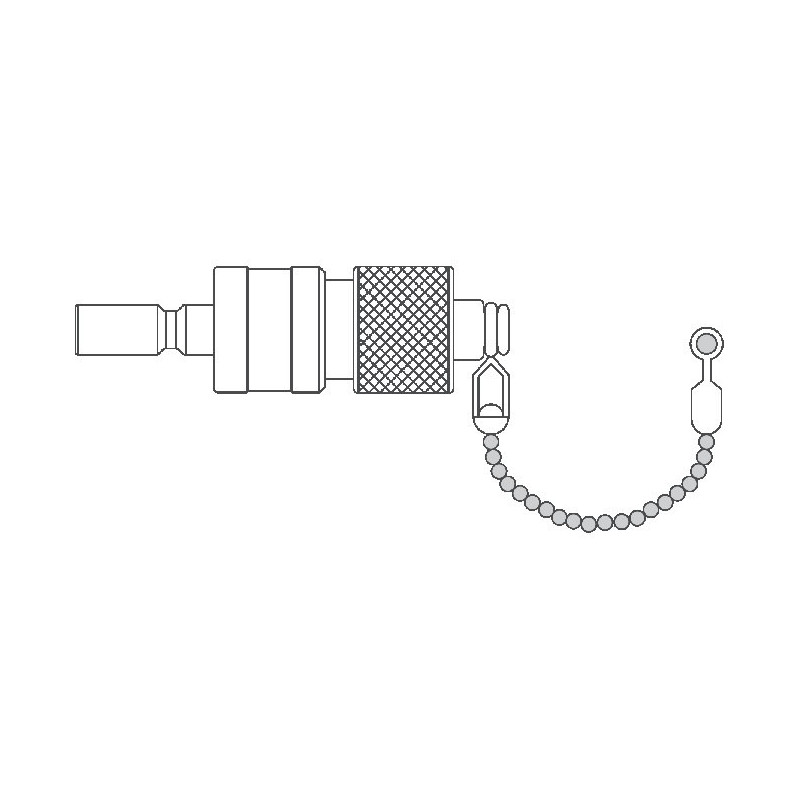

PANAM Quick Connects QC4, QC6 and QC8 (SESO, DESO and Full Flow, up to 3,000 psi)
Push-to-connect instrumentation quick connects in three series (QC4, QC6, QC8) with single-end shutoff, double-end shutoff and full flow bodies. Tube fitting, bulkhead, NPT, BSPT, JIC and hose ends, 1/8" to 1/2" and 6 to 12 mm. SS 316 / 316L, FKM O-rings, up to 3000 psig.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM quick connects provide a reliable, leak tight O-ring seal for vacuum or pressure systems and are interchangeable with other key manufacturers' products. They are push-to-connect for quick and easy operation, with a locking mechanism of large contact area to ensure reliable stem retainment.
Three configurations are offered: single-end shutoff (SESO) stems that remain open when uncoupled, double-end shutoff (DESO) stems with a valve that shuts off when uncoupled for minimal spillage and air inclusion, and full flow bodies for bidirectional flow. Bodies and stems are available with PANAM tube fitting, bulkhead tube fitting, male and female NPT, male and female BSPT, male JIC 37° flare and hose connector ends. Stem protectors, body protectors and keyed options are available.
Quick connects are 100% factory tested and comply with NACE MR0175 and NACE MR0103 with heat code traceability.
Key features
- Working pressure up to 3000 psig (207 bar) coupled (QC4)
- Single-end shutoff, double-end shutoff and full flow models
- Leak tight O-ring seal for vacuum or pressure service
- Interchangeable with other key manufacturers' products
- Push-to-connect with large contact area locking mechanism
- Stem protector, body protector and keyed options
- SS 316 / 316L standard; Hastelloy C276 and Inconel 625 options
Standard specification
| Series | QC4 (1/4"), QC6 (3/8"), QC8 (1/2") |
|---|---|
| Coupled pressure at 100 °F (37 °C) | QC4 3000 psig (206 bar), QC6 1500 psig (103 bar), QC8 750 psig (51.6 bar) |
| Uncoupled / when coupling | 250 psig (17.2 bar) at 70 °F (20 °C) |
| Temperature | FKM up to 400 °F (204 °C); FFKM up to 500 °F (260 °C); EPDM down to -50 °F (-45 °C) |
| Flow coefficient (Cv) | 0.08 to 2.40 depending on series and model |
| End connections | Tube fitting, bulkhead tube fitting, NPT M/F, BSPT M/F, JIC 37° male, hose connector |
| Sizes | 1/8" to 1/2" and 6, 8, 10, 12 mm |
| Body and stem material | 316 / 316L SS (ASTM A479), 316 SS springs (A313) |
| O-rings | FKM standard; EPDM, Buna-N, Kalrez FFKM options |
| Sour service | Compliance with NACE MR0175 and NACE MR0103 (SG option) |
Range overview
| Model | Function | Example part number | Cv |
|---|---|---|---|
| SESO stem, tube fitting | Stem open when uncoupled | PQC4-04-OD-S-SS | 0.30 |
| SESO stem, male NPT | Stem open when uncoupled | PQC6-06-NM-S-SS | 0.80 |
| DESO stem, tube fitting | Stem valve shuts off when uncoupled | PQC8-08-OD-D-SS | 1.50 |
| DESO stem, bulkhead | Stem valve shuts off when uncoupled | PQC4-04-BOD-D-SS | 0.20 |
| Body, female NPT | Body valve shuts off when uncoupled | PQC4-04-NF-B-SS | - |
| Body, JIC 37° male | Body valve shuts off when uncoupled | PQC6-06-JM-B-SS | - |
| Full flow body, tube fitting | Bidirectional full flow | PQC8-08-OD-F-SS | - |
| Stem / body protector | Protects stem or body when uncoupled | PQC4-SP / PQC4-BP | - |
Part numbers combine P (PANAM), series (QC4, QC6, QC8), end connection size (02 to 08, or M06 to M12), end type (OD tube fitting, BOD bulkhead, NM/NF NPT, RM/RF BSPT, JM JIC male, H hose), S/D/B/F for SESO stem, DESO stem, body or full flow body, material (SS, SSL, HC, I6) and options (SG NACE, EPDM, NB Buna-N, KZ Kalrez, SC Sulfinert coating). Example from the catalogue: PQC4-04-BOD-D-SSL-SG.
Applications
Sampling points, calibration and test connections, analyzer lines and frequently disconnected instrument lines in Oil and gas production, refineries, petrochemical and chemical plants, power generation, offshore installations and analyzer or instrument hook-ups.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-QC
Data sheet
- Manufacturer series
- QC4 QC6 QC8
- Product type
- Instrumentation quick connect
- Size range
- 1/8 in to 1/2 in and 6 to 12 mm
- Pressure rating
- 3000 psig
- Material
- SS 316 and 316L
- Origin
- India
