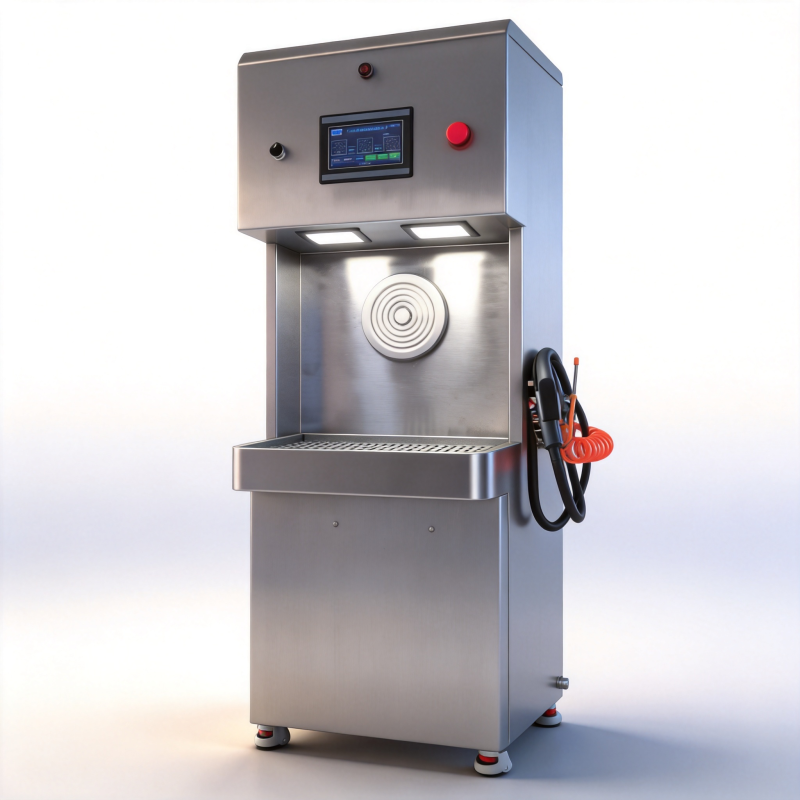

Precision Parts Steam Cleaning Station
Enclosed parts cleaning station for workshops: steam (5 bar), hot water (20 bar) and cold water cleaning from 20 to 150 °C, 60 L clean and 60 L waste water tanks, drying gun, LED lighting, negative-pressure exhaust with mist collection. 304 stainless steel, PLC touchscreen, 3 kW, 220 V.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
This unit is a cleaning station for precision and mechanical parts: valve internals, instrument parts, bearings, injectors and small components. Parts are cleaned inside a 304 stainless steel cabinet with steam, hot water or cold water, then dried with an air gun. A negative-pressure exhaust collects mist, and separate clean and waste water tanks keep the workshop clean.
Technical data
| Model | AG-CLN-114 |
| Rated power | 3 kW |
| Power supply | 220 V, 50 Hz |
| Steam pressure | 5 bar |
| Hot water pressure | 20 bar |
| Temperature range | 20 to 150 °C |
| Cleaning modes | Steam, hot water, cold water |
| Tanks | 60 L clean water, 60 L waste water |
| Drying | Independent drying gun (compressed air or hot air) |
| Exhaust | Negative-pressure exhaust with mist collection |
| Lighting | Built-in LED |
| Housing | 304 stainless steel |
| Control | PLC with touchscreen |
Documents
Datasheet, CE and quality documents of the manufacturer, and the final configuration are confirmed with each quotation.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-CLN-114
Data sheet
- Power
- 3 kW
- Steam pressure
- 5 bar
- Power supply
- 220 V 50 Hz
- Hazardous area
- Not explosion-proof
- Hot water pressure
- 20 bar
- Temperature
- 20 to 150 °C
