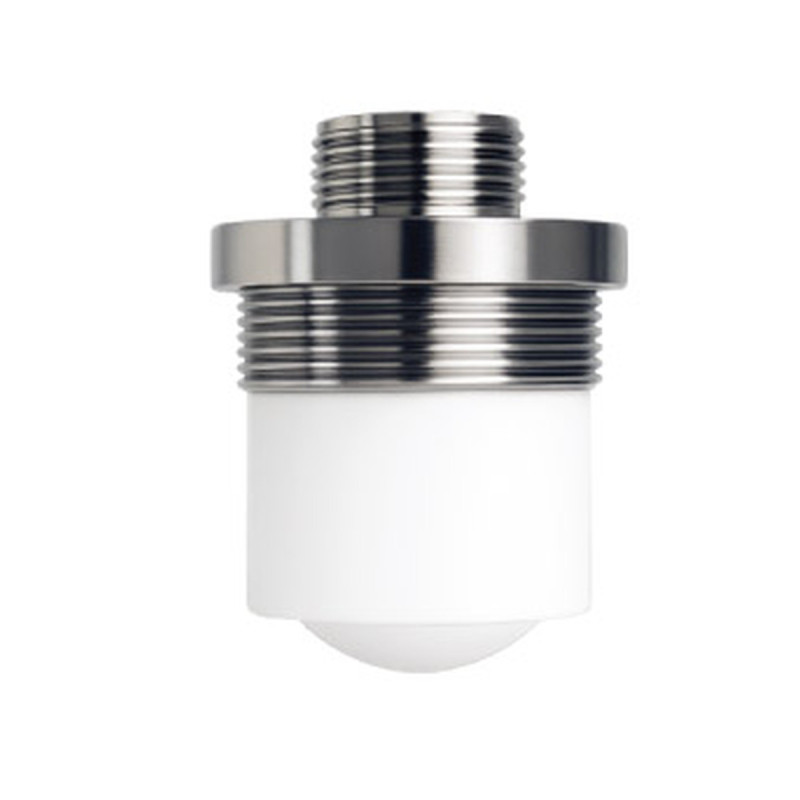

SONDAR RL100 Radar Level Sensor, 60 GHz, 20 m
Separate 60 GHz radar level sensor: 20 m range, 0.2 m dead zone, 6° beam, 4 to 20 mA and RS-485 outputs. PVDF, IP68, -30 to 70 °C, G 2" thread. Works with the SNC100 controller or directly with a PLC or RTU. KC, FCC.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The SONDAR RL100 is a compact remote radar sensor for non-contact level measurement up to 20 m. Its 6° beam at 60 GHz focuses on small openings such as wells, manholes and narrow tanks. It delivers both an analog 4 to 20 mA signal and an RS-485 digital output, so it can be connected to the SONDAR SNC100 controller, to a Smart RTU or directly to a PLC.
The fully sealed PVDF body (IP68) withstands submersion and corrosive atmospheres in water and wastewater installations.
Technical data
| Model | RL100 |
| Type | Separate radar level sensor |
| Frequency | 60 GHz |
| Measuring distance | 20 m |
| Dead zone | 0.2 m |
| Beam angle | 6° |
| Communication | 4 to 20 mA, RS-485 |
| Sensor material | PVDF |
| Operating temperature | -30 to 70 °C |
| Protection | IP68 |
| Process connection | G 2" (cable side G 1") |
| Dimensions | Ø 64 x 90.2 mm |
| Certification | KC, FCC |
Documents
Manufacturer catalogue attached below. Certification: KC, FCC. Not certified for hazardous areas (no ATEX or IECEx certificate). Made in South Korea by SONDAR.
SONDAR-RL100
Data sheet
- Hazardous area
- Not certified
- Measuring range
- 20 m
- Output
- 4 to 20 mA, RS-485
- Protection
- IP68
- Certification
- KC, FCC
- Country of origin
- South Korea
- Technology
- Radar 60 GHz
