- New

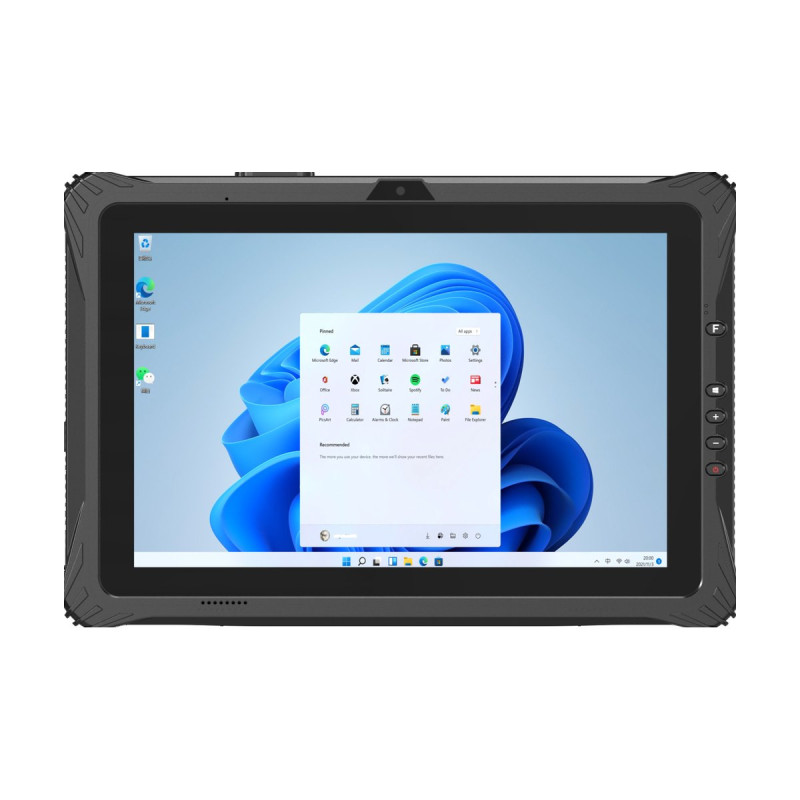

Emdoor EM-I20L 12.2 inch Rugged AI Tablet Intel Core Ultra 5
12.2-inch Rugged AI Tablet with Intel Core Ultra 5, Windows 11 Pro, 700-nit display, IP65 durability, Wi-Fi 6E, 4G LTE, GPS, and Thunderbolt 4.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The EM-I20L Rugged AI Tablet features Intel Core Ultra 5 performance, Windows 11 Pro, a 12.2-inch 700-nit FHD display, IP65 and MIL-STD-810H protection, Wi-Fi 6E, 4G LTE, GPS, Thunderbolt 4, fingerprint security, and optional NFC or barcode scanning for industrial field work.
Key features
- CPU: Intel Core Ultra 5 processor 226V
- GPU: Intel Arc 130V/140V GPU
- Operating System: Windows 11 Pro
- Resolution: 1920 x 1200
- Screen Size: 12.2 inches
- Brightness: 700 nits
- Memory: 16GB LPDDR5x
- Storage: 256GB PCIe SSD
- Connectivity: Wi-Fi 6E, Bluetooth 5.4, 4G LTE, GPS/GLONASS
Specifications
| Basic parameters | |
|---|---|
| Dimensions | 339.3 x 230.3 x 26 mm |
| Machine weight | 1500g |
| Machine color | Black |
| Display | 12.2 inch FHD, resolution: 1920 x 1200, 700 nits |
| Touch screen | 10-point capacitive touch screen, supports GP930 active pen |
| Camera | Front 2.0MP camera; Rear 13.0MP camera |
| I/O Interface | Micro SD card x1 SIM card x1 USB 3.2 Gen2 Type-A x1 Thunderbolt 4 x1 3.5 mm audio jack x1 HDMI 2.0a mini x1 5.5 mm DC in jack x1 12-pin Pogo pin x1 (charge and USB) 4-in-1 module: RJ45 x1, optional RS232 x1, USB 2.0 Type-A x1, optional 1D/2D barcode reader x1 |
| Power adapter | AC adapter: 100-240V, 50Hz-60Hz, 64.98W (19V/3.42A) |
| Wireless Communications | |
| WIFI | Intel Wi-Fi 6E (802.11ax) |
| Bluetooth | Bluetooth V5.4 |
| 2G/3G/4G/5G | 4G LTE optional 4G optional 5G |
| GNSS | GPS/GLONASS module |
| Performance parameters | |
| CPU | Intel Core Ultra 5 processor optional Intel Core Ultra 7 processor |
| GPU | Intel Arc 130V/140V GPU |
| Operating system | Windows 11 Pro; optional Windows 11 Home/IOT |
| Memory | 16GB LPDDR5x on board; 32GB LPDDR5x on board for Ultra 7 processor 258V |
| Storage capacity | 256GB PCIe SSD; optional 512GB/1TB PCIe SSD |
| Battery Performance | |
| Battery | Li-ion battery 7.4V/6300mAh, 11h; Li-ion battery 7.4V/860mAh; separate 3V/210mAh RTC |
| Data collection | |
| NFC | Optional HF-RFID (NFC) reader |
| 1D | Optional 1D/2D barcode reader |
| 2D | Optional 1D/2D barcode reader |
| Fingerprint | Fingerprint scanner |
| Product reliability | |
| Operating temperature | -20 C to 60 C (-4 F to 140 F) |
| Storage temperature | -30 C to 70 C (-22 F to 158 F) |
| Humidity | 95% (non-condensing) |
| Protection level | IP65 compliant; MIL-STD-810H certified; +/-8kV contact discharge, +/-15kV air discharge |
| Drop height | 4ft / 1.22m, 26 drops (each side, edge, and corner) |
Specifications may change without notice. Final configuration, certifications and lead time are confirmed in our quotation.
