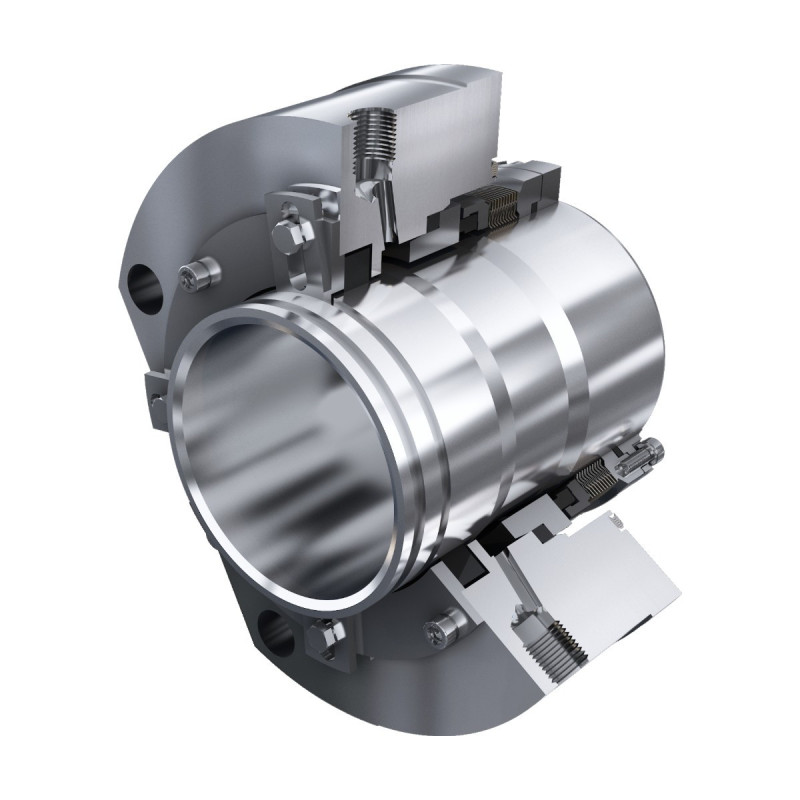

COLOSSUS C65 High Temperature Rotating Welded Metal Bellows Seal

Rotating welded metal bellows seal for high temperature service. Its dynamic performance and adaptability come from welded bellows technology: a 45 degree wave profile lowers stress peaks and spreads the stress at the inner weld to prevent early failure, keeping the seal faces in contact. Flexible graphite is used only as a static seal. Connection dimensions comply with DIN 24960 and GB 6556.

Key features

• Standardized design to DIN 24960 and GB 6556
• Welded metal bellows: good dynamic performance, wide adaptability
• Flexible graphite static seal, simple and reliable
• Set screw positioning
• Corrosion-resistant design

Technical data

Materials

• Seal faces: Antimony-impregnated graphite against silicon carbide or tungsten carbide (as quoted)
• Bellows: Precipitation hardened steel
• Metal parts: High nickel alloy
• Secondary seals: Flexible graphite

Other material combinations are available on request for specific media.

Applications

• Oil and gas, hot hydrocarbons
• Chemical and pharmaceutical
• Metallurgy and mining
• Nuclear power
• Water treatment

Standards

Reference standards listed by the manufacturer: API Std 682, JB/T 4127, JB/T 8723. Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
