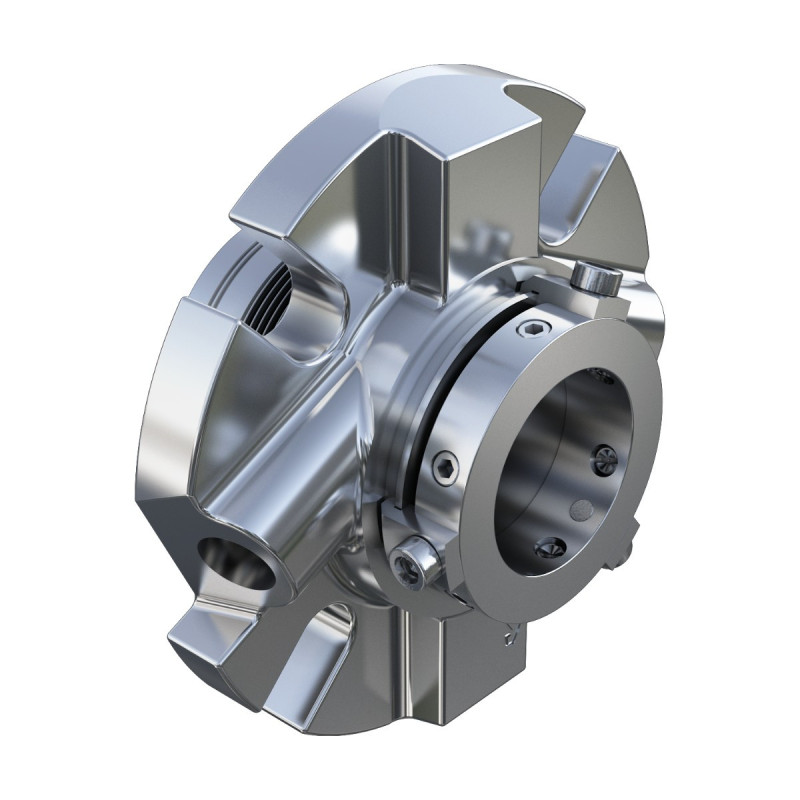

COLOSSUS CK800 Welded Metal Bellows Cartridge Seal (ANSI / DIN pumps)

Single, rotating welded metal bellows cartridge seal. Installation dimensions fit ANSI and DIN process pumps, in metric and inch sizes. The bellows uses a 45 degree inner forming angle to spread stress and raise pressure capability, and the face design was optimized by finite element analysis and validated by testing for low emissions. Available in standard and common material configurations.

Key features

• Pre-assembled cartridge, simple installation
• Fits ANSI and DIN process pumps, metric and inch series
• Quick positioning pin drive
• Welded bellows with 45 degree forming angle for pressure resistance
• Face design optimized by finite element analysis
• Wide choice of materials for different media

Technical data

Materials

• Seal faces: Antimony-impregnated graphite against silicon carbide
• Bellows: Hastelloy
• Metal parts: Chrome steel or high nickel alloy
• Secondary seals: FKM or FFKM

Other material combinations are available on request for specific media.

Applications

• Oil and gas, refining
• Chemical and pharmaceutical
• Papermaking
• Nuclear power and marine
• Water treatment
• Food

Standards

Reference standards listed by the manufacturer: API Std 682, JB/T 4127, JB/T 8723. Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
