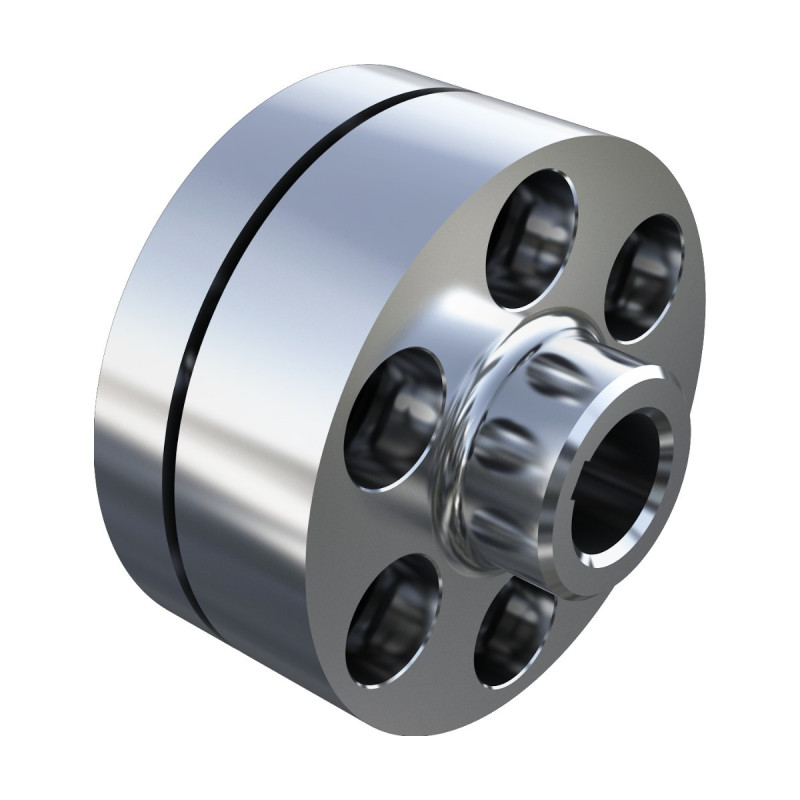

COLOSSUS CTL Elastic Sleeve Pin Coupling
Pin and bush coupling: two flanged halves connected by pins fitted with elastic sleeves, which transmit torque with some elasticity and cushioning. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Pin and bush coupling: two flanged halves connected by pins fitted with elastic sleeves, which transmit torque with some elasticity and cushioning. Compact and easy to assemble, for small and medium power drives. It compensates only small relative displacement of the shafts; large misalignment wears the elastic parts.
Key features
- For small and medium power drive trains
- Compact, easy assembly and maintenance
- Elastic sleeves for cushioning and vibration damping
- Low additional load on the connected machines
Technical data
| Model | CTL |
| Max nominal torque | 16000 N·m |
| Max speed | 6300 rpm |
| Max shaft diameter | 170 mm |
| Angular misalignment | Up to 0.5° |
| Axial compensation | Up to ±1 mm |
| Surface protection | Bluing |
Materials
- Hubs: 40Cr or 2Cr13
- Bolts: 35CrMo, 2Cr13 or 40Cr
- Elastic sleeves: Polyurethane or rubber
Applications
- Pumps and fans
- Petroleum and petrochemical
- Water treatment
- Marine and steel
- Paper and mining
Standards
Reference standards listed by the manufacturer: JB/T 9147. Certificates and test reports are provided with the quotation where applicable.
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CTL
Data sheet
- Max speed
- 6300 rpm
- Coupling type
- Elastic sleeve pin coupling
- Max torque
- 16000 N·m
- Max shaft diameter
- 170 mm
- Elastic element
- Polyurethane or rubber
