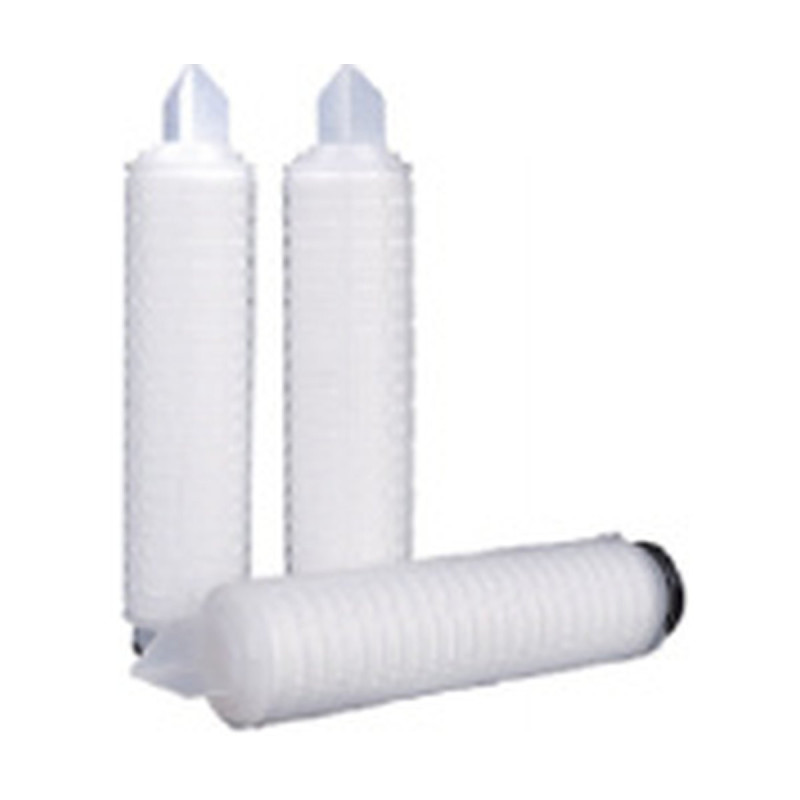

High Precision Polypropylene Folding Filter Element

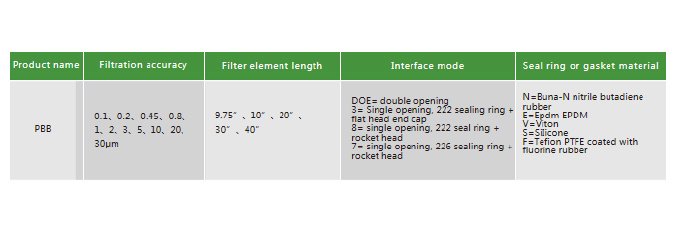

Product specifications

• Filter medium: PP polypropylene
• Support: PP polypropylene
• Central core: PP polypropylene
• End caps: PP polypropylene
• Sealing ring: silicone rubber, Buna-N nitrile rubber, Viton fluororubber, EPDM ethylene propylene diene rubber, Teflon (PTFE) coated fluororubber
• Outer diameter: 2.67" (68 mm)
• Length: 9.75" to 40" (248 mm to 1016 mm)
• Filtration accuracy: 0.1, 0.22, 0.45, 0.8, 1, 2, 3, 5, 10, 20, 30 µm
• Maximum operating differential pressure: 75 psid (5.1 bar) at 68°F (20°C); 40 psid (2.8 bar) at 150°F (65°C)

Product characteristics

• Polypropylene filter material with a multi-microporous structure provides stable filtration performance.
• No adhesive is used, minimizing contamination from extractables.
• High flow, low resistance and high dirt-holding capacity.
• Large filter area, high flow and long life reduce maintenance costs.
• The filter element is produced, cleaned, tested and packaged in a class 10000 clean room.
• Produced in a plant certified to an ISO quality management system.

Application field

• Electronics industry: pre-filtration of industrial high-purity water.
• Food and beverage industry: filtration of wine, mineral water, drinking water, etc.
• Oil industry: oilfield water injection filtration.
• Medical industry: refining of pharmaceuticals, biological products, pharmaceutical solvents, compressed air and other fluids.
• Chemical industry: filtration of various organic solvents, acids and alkalis.
• Optical film: filtration of release film, protective film, functional film, OCA adhesive and high-performance adhesives.

Dimensions, materials, filtration rating and lead time are confirmed in our quotation. Custom sizes on request.

Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
