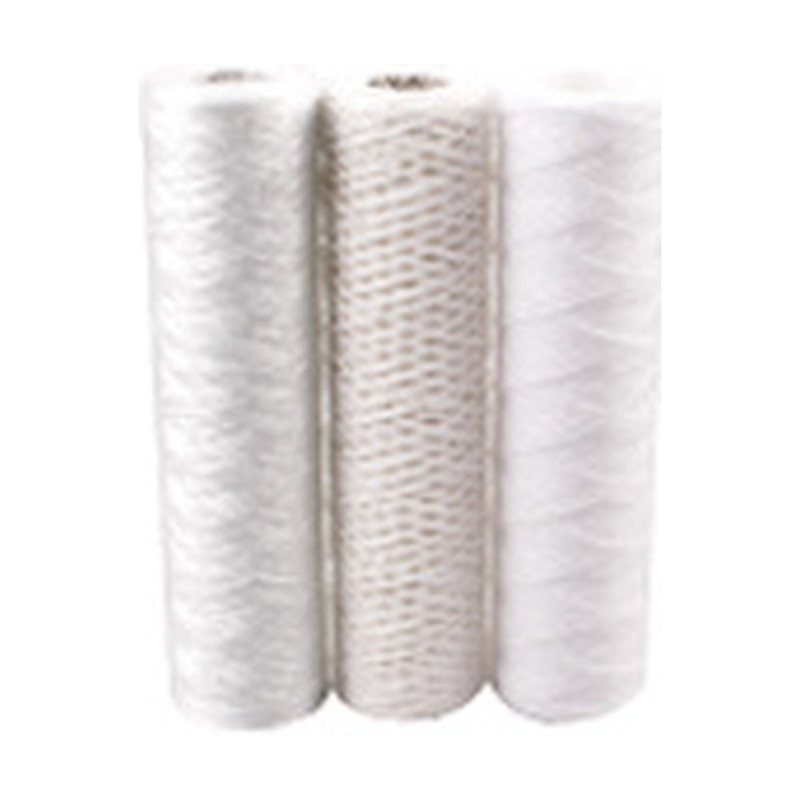

Wound Filter Element

Product characteristics

• Filter media: high-grade bleached cotton (FDA), clean-grade PP polypropylene (FDA), glass fiber
• Central core: PP polypropylene, 304 stainless steel, 316L stainless steel
• Outer diameter: 2.36" to 4.3" (60 mm to 110 mm)
• Inner diameter: 1.1" to 1.18" (28 mm to 30 mm)
• Length: 9.75" to 40" (248 mm to 1016 mm)
• Special specifications can be made to order
• Filtration accuracy: 0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30, 40, 50, 75, 100, 150, 200 µm

Product features

• Textile fiber yarn is tightly wound on a porous core, with controlled winding density and pore shape to produce filter elements of different filtration ratings.
• Withstands high filtration pressure and has good chemical compatibility.
• Cotton yarn, PP polypropylene yarn or glass fiber yarn can be selected to meet various liquid filtration needs.
• Effectively removes suspended matter and particles from liquids, with strong adsorption capacity.

Application field

Filtration of industrial water, plating solutions, chemical raw materials, organic solvents, and acid and alkali liquids in chemical processes; pre-filtration of ultra-pure water, sterile water, RO reverse osmosis and general drinking water; filtration of syrup, chocolate and other slurries.

Dimensions, materials, filtration rating and lead time are confirmed in our quotation. Custom sizes on request.

Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
