EuropCorr Mechanical Retrieval Tool Kit
Mechanical retrieval tool kit for safe installation and removal of coupons, probes and injection assemblies under full line pressure (420 bar) through EuropCorr mechanical access systems.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

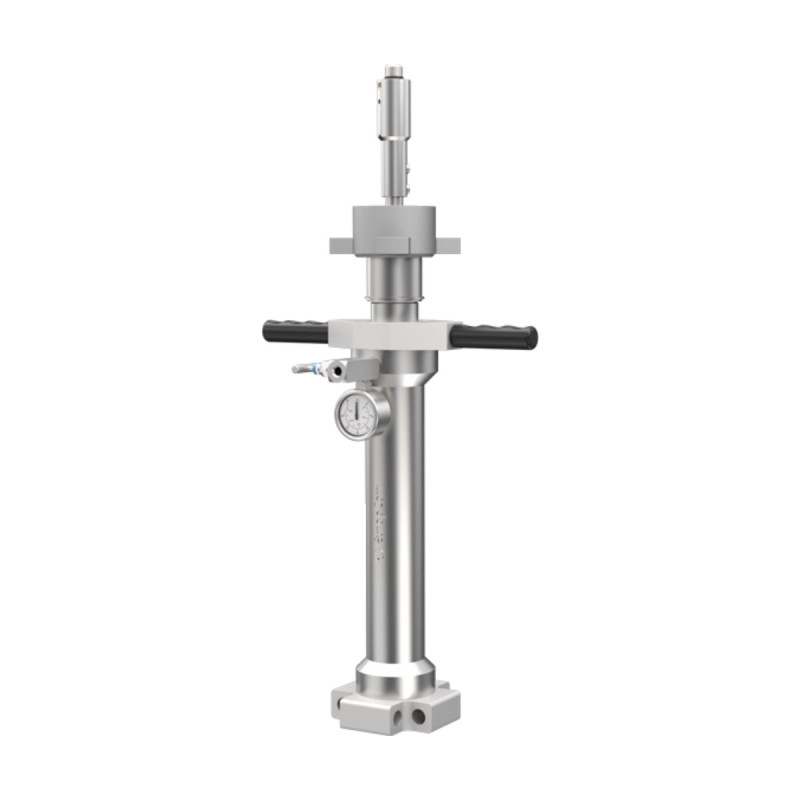

The Mechanical Retrieval Tool Kit is designed for the safe and easy installation and removal of monitoring devices from pipelines and vessels under full line pressure, through a EuropCorr Mechanical Access System. It is mainly composed of the Retrieval Tool and a Single or Double Isolation Service Valve, supplied with a steel brush, brass hammer and purge tube with adapter in a sturdy field service box. The purge tube lets the fluid in the assembly be contained in a tank (on request), sampled or released elsewhere.
Main components are stainless steel with a chrome treatment, hydrotested after assembly. The retriever works on the balanced-pressure principle, so it will not telescope in case of sudden pressure release, and includes a three-way bleed valve with pressure gauge. Sealing uses Viton O-rings and energised graphite-impregnated PTFE seals. One retriever and one service valve can service many access points.
Kit contents
- Mechanical Retriever
- Single or Double Isolation Service Valve
- Purge tube with adapter
- Steel brush and brass hammer
- Field service box
- Other accessories on request
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Maximum pressure | 6,000 psi (420 bar) |
| Maximum temperature | 450 °F (232 °C) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156, PED (EU) |
| Clearance | 200 mm, operating radius 1,000 mm |
| Seal kit / repair kit | 273030 / 273031 |
| Materials | ||
|---|---|---|
| Material | Max. pressure / temperature | Code |
| 17-4PH | 420 bar / 230 °C | -50 |
| Nitronic 50 | 420 bar / 230 °C | -71 |
| Alloy 625 | 250 bar / 150 °C | -24 |
| Retriever for Single Isolation Service Valve | ||||
|---|---|---|---|---|
| Probe length | Part No. | Length collapsed | Length extended | Weight |
| 100 mm | 271007 | 833 mm | 1000.7 mm | 22 kg |
| 200 mm | 271008 | 924 mm | 1200.7 mm | 24 kg |
| 300 mm | 271009 | 1024 mm | 1400.7 mm | 26 kg |
| 400 mm | 271010 | 1124 mm | 1600.7 mm | 28 kg |
| 500 mm | 271011 | 1224 mm | 1800.7 mm | 30 kg |
| 600 mm | 271012 | 1324 mm | 2000.7 mm | 32 kg |
| 700 mm | 271013 | 1424 mm | 2200.7 mm | 34 kg |
| 800 mm | 271014 | 1524 mm | 2400.7 mm | 36 kg |
| 900 mm | 271015 | 1624 mm | 2600.8 mm | 38 kg |
| 1000 mm | 271016 | 1724 mm | 2800.8 mm | 40 kg |
| Retriever for Double Isolation Service Valve | |||
|---|---|---|---|
| Probe length | Part No. | Length collapsed | Length extended |
| 100 mm | 272001 | 1004 mm | 1171.5 mm |
| 200 mm | 272002 | 1095 mm | 1371.5 mm |
| 300 mm | 272003 | 1195 mm | 1571.5 mm |
| 400 mm | 272004 | 1295 mm | 1771.5 mm |
| 500 mm | 272005 | 1395 mm | 1971.5 mm |
| 600 mm | 272006 | 1495 mm | 2171.5 mm |
| 700 mm | 272007 | 1595 mm | 2371.5 mm |
| 800 mm | 272008 | 1695 mm | 2571.5 mm |
| 900 mm | 272009 | 1795 mm | 2771.5 mm |
| 1000 mm | 272010 | 1895 mm | 2971.5 mm |
Please state the probe length, service valve type and material in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-MECH-RTK
7 other products in the same category:
Mechanical retrieval tool kit for safe installation and removal of coupons, probes and injection assemblies under full line pressure (420 bar) through EuropCorr mechanical access systems.
