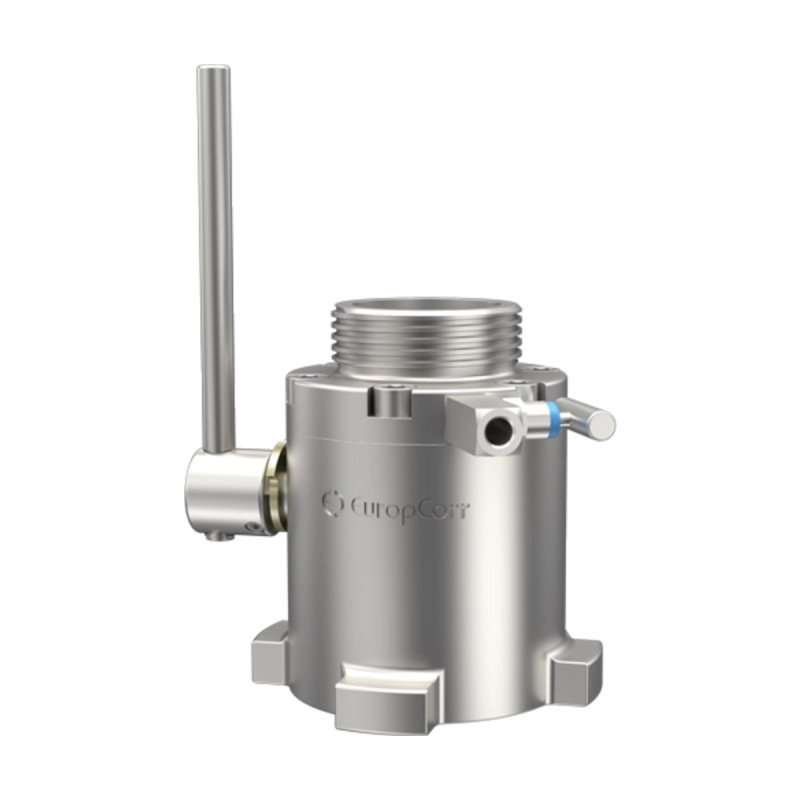

EuropCorr Hydraulic Single Isolation Service Valve
Single isolation service valve for EuropCorr hydraulic retrieval: temporary seal at the access point, two bleed valves, up to 420 bar. Standard, fire safe and alloy versions.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The Isolation Service Valve provides a temporary seal at the access point while the monitoring device is removed for inspection, maintenance or replacement. It comes in single or double isolation versions (the retriever for a single valve is not suitable for a double valve). Its two-bleed-valve design is a key safety feature: one bleeds to atmosphere, supplementing the retriever bleed valve, and the second bypasses the ball so pressure in the retriever builds up smoothly without shock, and the ball can be opened easily because the seats are no longer loaded.
This version is used with the EuropCorr Hydraulic Retrieval Tool Kit.
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Maximum pressure | 6,000 psi (420 bar) |
| Maximum temperature | 450 °F (232 °C) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156, PED (EU) |
| Seal and repair kits | 381002 / 381003 |
| Ordering information | |||
|---|---|---|---|
| Model | Material | Max. pressure / temperature | Part No. |
| Standard | 17-4PH | 420 bar / 230 °C | 181001 |
| Standard | Nitronic 50 | 420 bar / 230 °C | 181001-71 |
| Fire safe | 17-4PH | 420 bar / 230 °C | 181002 |
| Alloy | Alloy 625 | 420 bar / 100 °C | 181004-24 |
| Alloy | Alloy 825 | 365 bar / 100 °C | 181004-23 |
| Height 174 mm, weight 11 kg. | |||
Please state the material and model (standard, fire safe or alloy) in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-181001
