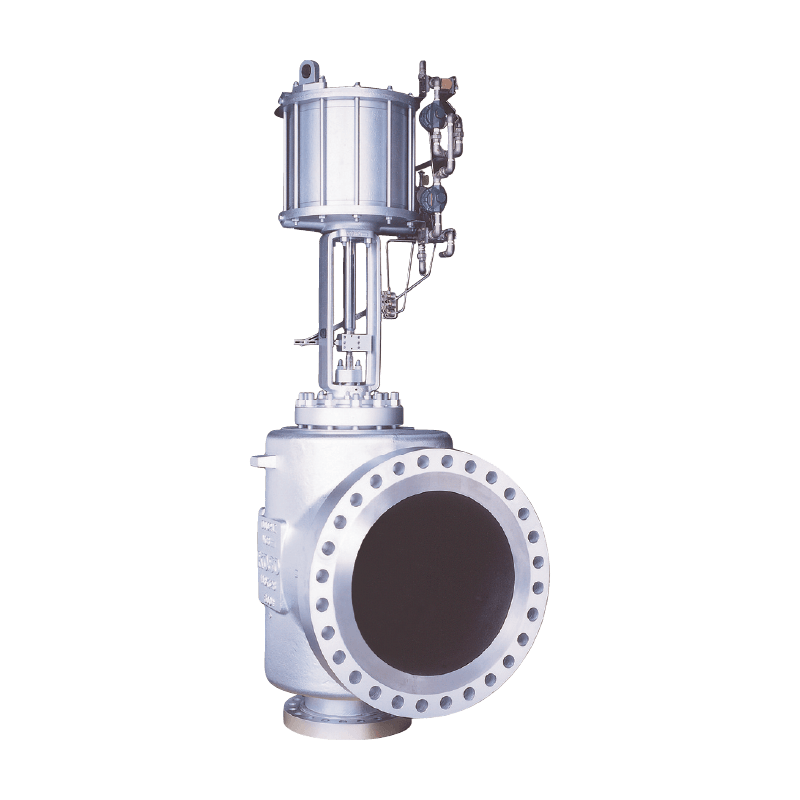

KOSO VeCTor 500M / 500D / 500J Multi-Stage Velocity Control Valve
KOSO VeCTor patented multi-stage velocity control trim for high temperature and high pressure drop service, 1" to 36", ASME Class 150 to 4500, -196 to +565 °C, free from cavitation, erosion and noise.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
In severe services of high temperature and high differential pressure, the patented KOSO VeCTor multi-stage trim gives accurate control and long life, free from cavitation erosion and noise, on compressible or incompressible fluids.
Its performance and durability reduce maintenance costs and simplify the system, as diffusers and silencers are no longer required. The 500M (up to level 24), 500D (disk stack, up to level 40) and 500J (up to level 8) models are selected according to fluid conditions and budget.
Key features
- Labyrinth disk stack trim limits fluid velocity at every stage
- Eliminates cavitation, flashing damage, erosion and noise at the source
- No need for downstream silencers or diffusers
- Up to 40 pressure reduction levels
- Globe or angle bodies, integral flanged or butt weld ends
- Pneumatic, electric or REXA electro-hydraulic actuation
Standard specification
| Body type Body Styles | 500M Globe / Angle / 500D Globe / Angle / 500J Globe / Angle |
|---|---|
| Body size | 1" to 36"(900A) / 1" to 36"(900A) / 1" to 18"(450A) |
| Body rating | ANSI Class 150 to 4500, JIS10K to 63K / ANSI Class 150 to 4500, JIS10K to 63K / ANSI Class 150 to 2500, JIS 10K to 63K |
| Fluid temperature | -196 to +565°C (-320F to +1050F) |
| Connections | Flanged (RF, RTJ), Butt Weld, Socket Weld, Integral Flanges (RF, RTJ) |
| Body materials | SCPH2/WCB, SCPH21/WC6, SCPL1/LCB, SCS13A/CF8, SCS14A/CF8M, A105, F11, F22, etc... |
| Trim materials | SUS410/410SS, SUS630/SCS24, SUS316/SCS14A, INCONEL, etc... |
| Rangeability | 50:1 to 20:1 |
| Flow characteristics | Linear , Modified Linear , Modified Eq% |
| Leakage | Metal seat / Rated ANSI/FCI 70-2 Class IV, V or MSS-SP-61 |
| Soft seat | Bubbletight ANSI/FCI 70-2 Class VI |
| Trim Levels | Up to Level 24 / Up to Level 40 / Up to Level 8 |
| Actuator combination | 5200LA: Pneumatic Diaphragm Actuator 6300LA: Pneumatic Cylinder Actuator 3500LB,3600LB: Solid State Electronic Actuator 3800LA: Microprocessor REXA Actuator |
Applications
High pressure drop and severe service duties in oil and gas, LNG, power and petrochemical plants: anti-cavitation, low noise, erosive and flashing services, pump recirculation, compressor anti-surge, separator level control and turbine bypass.
Documentation
The manufacturer brochure is available in the attachments. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
KOSO-500M
Data sheet
- Manufacturer series
- 500M / 500D / 500J
- Product type
- VeCTor velocity control valve
- Size range
- 1 in to 36 in
- Origin
- KOSO group
- Rating / output
- ASME 150 to 4500
