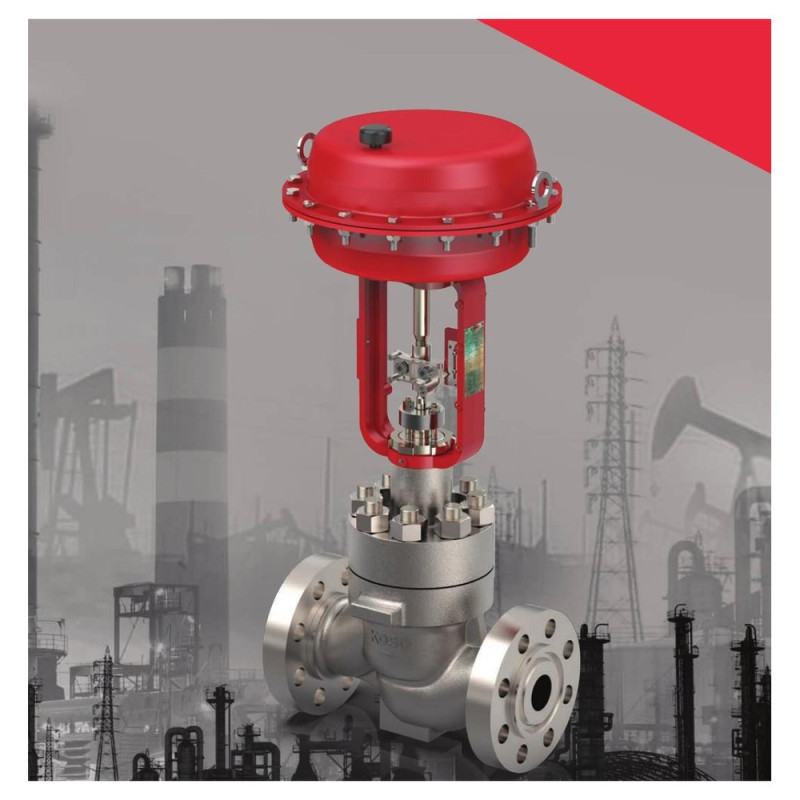

KOSO 550G / 560G M-Trim Multi-Stage Severe Service Control Valve
Patented multi-stage, multi-turn drilled hole cage trim (up to six stages) for high pressure drop, anti-cavitation and low noise service, globe or angle body, ASME Class 150 to 2500.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The KOSO 550G M-TRIM (globe) and 560G M-TRIM (angle) control valves use a patented high pressure, anti-cavitation, low noise multi-stage drilled hole cage trim with fine control, designed for severe service control valve applications.
Up to six stages of pressure reduction bring the trim outlet velocity and kinetic energy down to a safe level. The number of stages and the capacity are customized for each application, in over-the-plug or under-the-plug flow configurations.
Key features
- Up to six stages of pressure reduction
- Anti-cavitation design for liquid service, low noise for gas service
- Quick change trim, removable with the body in line
- Linear, equal percentage or modified equal percentage characteristics
- Fine flow control and high rangeability
- Manufactured by KOSO India to ASME B16.34
Standard specification
| Series | 550G M-Trim globe / 560G M-Trim angle |
|---|---|
| Body rating | ASME Class 150 to 2500 |
| Trim | Multi-stage, multi-path drilled hole cage, up to 6 stages |
| Flow direction | Over the plug or under the plug |
| Characteristics | Linear, equal percentage, modified equal percentage |
| Design standards | ASME B16.34, ASME B16.5 / B16.47, B16.25, B16.11 |
| Quality | ISO 9001, API Spec Q1; PED/CE and ATEX compliance available |
Applications
High pressure drop and severe service duties in oil and gas, LNG, power and petrochemical plants: anti-cavitation, low noise, erosive and flashing services, pump recirculation, compressor anti-surge, separator level control and turbine bypass.
Documentation
The manufacturer brochure is available in the attachments. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
KOSO-550GM
Data sheet
- Manufacturer series
- 550G / 560G M-Trim
- Product type
- Multi-stage severe service control valve
- Size range
- On request
- Origin
- KOSO group
- Rating / output
- ASME 150 to 2500
