KOSO Kent Introl Severe Service Trims (VeCTor, Multi-Spline, HF)

Kent Introl severe service trims solve cavitation, flashing, erosion, vibration and noise problems on high pressure drop duties such as separator level control, pump minimum flow recirculation, compressor anti-surge, pipeline surge relief and fire water deluge systems.

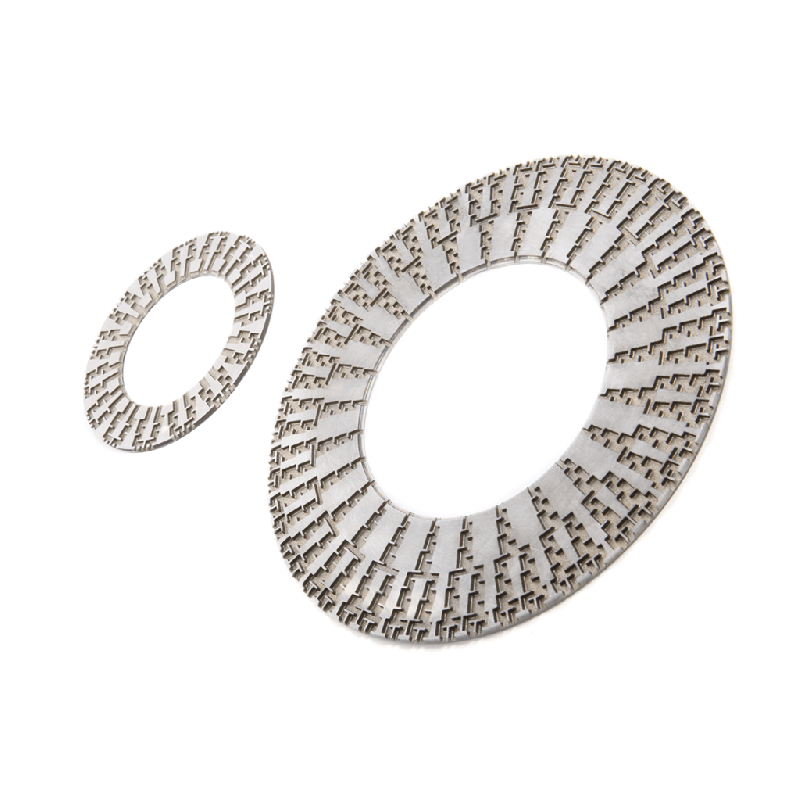

The VeCTor labyrinth trim separates the flow into many channels and stages the pressure drop across multiple turns, keeping velocities below the erosion threshold of the trim materials. Multi-Spline and multi-stage HF trims are available for low flow liquids and noise control.

Kent Introl (KOSO group, United Kingdom) operates under ISO 9001, ISO 14001, ISO/TS 29001 and OHSAS 18001, with PED, API 6A and API 17D monogram approvals.

Key features

• VeCTor labyrinth velocity control trim
• Multi-Spline cartridge trims up to five stages, rangeability above 100:1
• Multi-stage HF high friction cages
• Tungsten carbide and advanced ceramic options
• Engineering studies, dynamic response testing and noise prediction
• Retrofit of existing valves to stop recurring trim damage

Applications

High pressure drop and severe service duties in oil and gas, LNG, power and petrochemical plants: anti-cavitation, low noise, erosive and flashing services, pump recirculation, compressor anti-surge, separator level control and turbine bypass.

Documentation

The manufacturer brochure is available in the attachments. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
