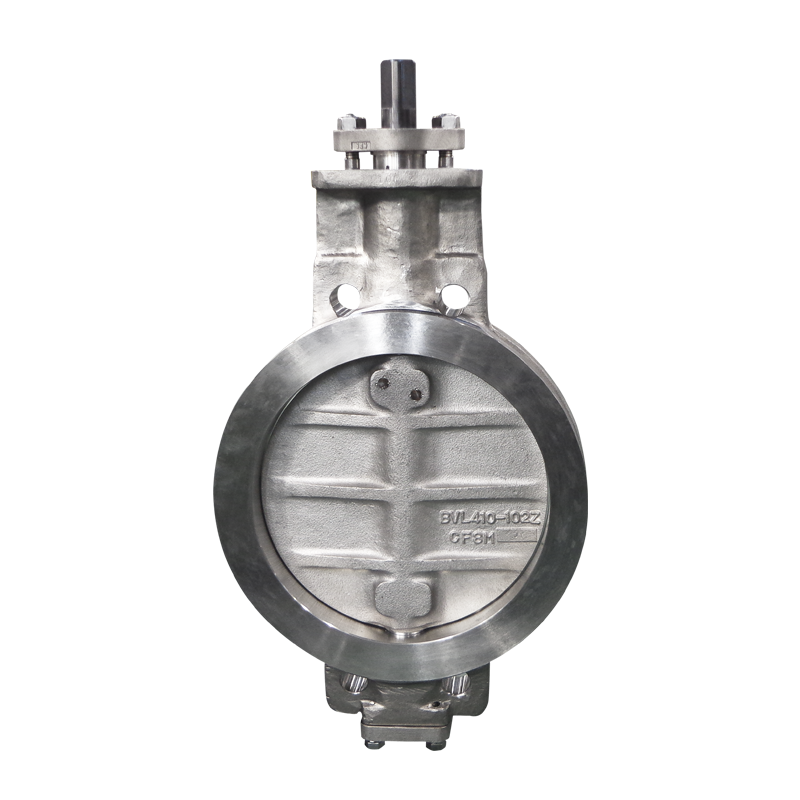

KOSO 600B / 600S / 610S Damper Type Butterfly Control Valves
Butterfly control valves for large ducts and pipelines: 600B duty damper (to 60", Class 900), 600S light duty damper (to 128") and 610S ring-seal type, up to +750 °C.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
KOSO damper type butterfly valves combine low seating force with good shut-off and resistance to very high temperatures; the thermal expansion of the seat ring with fluid temperature makes them well suited to hot gas and air service.
The 600B duty damper covers 3" to 60" up to ASME Class 900, the 600S light duty damper goes up to 128", and the 610S ring-seal version adds stainless steel or Inconel seal rings for lower leakage.
Key features
- Very large sizes up to 128"
- Temperatures up to +750 °C
- Low seating force
- Ring-seal option for reduced leakage
- Wafer or flanged bodies
Standard specification
| Body type | 600B / 600S / 610S |
|---|---|
| Body size | 3"(80A) to 60"(1500A) / 3"(80A) to 128"(3200A) / 6"(150A) to 36"(900A) |
| Body rating | ANSI Class 150 to 900, JIS 5K to 63K / ANSI Class 125, JIS 2K to 10K / ANSI Class 125, JIS 2K to 10K |
| Fluid temperature | -45 to +600°C / -45 to +750°C |
| Connections | Wafer type / Flanged (RF) |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc. / SS400, SUS304, SUS316. etc. / SUS304, SUS316 etc. |
| Disc materials | SCS14A/CF8M |
| Rangeability | 60° Opening/15:1 90° Opening/30:1 / 100:1 to 150:1 |
| Flow characteristics | Approximate Eq% (Inherent Characteristics) |
| Seal ring materials | - / - / SUS316 or Inconel |
| Seat Leakage | Standard / 90°Cv × 2.5 to 0.5% / 90° Cv × 5.0 to 1.5% / 90°Cv × 2.5 to 0.1% |
| 15° seal | - / 90° Cv × 0.5 to 0.2% / - |
| Back seat | - / 90° Cv × 2.0 to 1.0% / - |
| Actuator combination | 6300RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator 3500RB, 3600RB: Solid State Electronic Actuator 5200TA: Pneumatic Diaphragm Actuator |
Applications
Large flow control and shut-off of gases, steam and liquids in power, oil and gas, petrochemical, steel and water treatment plants.
Documentation
The manufacturer brochure is available in the attachments. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
KOSO-600B
Data sheet
- Manufacturer series
- 600B / 600S / 610S
- Product type
- Damper type butterfly control valve
- Size range
- 3 in to 128 in
- Origin
- KOSO group
- Rating / output
- ASME 125 to 900
