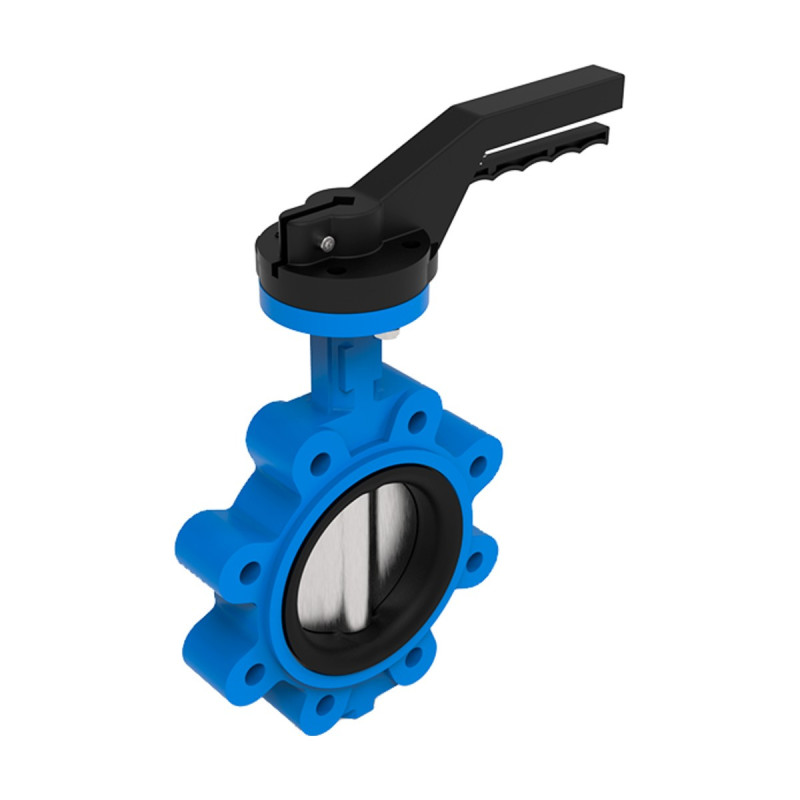

BVALVE Lug Butterfly Valve BV12008L, Ductile Iron PN10 / PN16 / Class 150 (DN40 to DN1200)
Lug butterfly valve with ductile iron body, CF8M stainless steel disc and NBR, EPDM or FKM seat, PN10 / PN16 or ASME Class 150, DN40 to DN1200, with lever, gearbox, pneumatic or electric operation. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The BVALVE BV12008L series is a lug butterfly valve with a ductile iron body, a CF8M stainless steel disc and a resilient seat in NBR, EPDM or FKM. It is available with lever, gearbox, pneumatic or electric operation.
Key features
- Lug body pattern
- Ductile iron EN-GJS-400-15 body
- CF8M stainless steel disc
- Choice of NBR, EPDM or FKM seat
- Lever, gearbox, pneumatic (spring return or double acting) or electric operation
Technical data
| Model series | BV12008L |
| Size range | DN40 to DN1200 (lever DN40 to DN200) |
| Pressure rating | PN10 / PN16 (EN 1092-2) or ASME Class 150 (B16.5) |
| Temperature range | Depends on seat material, on request |
| Body material | Ductile iron EN-GJS-400-15 (EN 1563) |
| Disc | Stainless steel CF8M |
| Seat | NBR, EPDM or FKM |
| End connection | Lug type |
| Operation | Lever BV12008L (DN40 to DN200); gearbox BV12008LGB, pneumatic spring return BV12008LSA, double acting BV12008LDA, electric BV12008LELE (DN40 to DN1200) |
Materials
- Body: ductile iron EN-GJS-400-15 (EN 1563)
- Disc: stainless steel CF8M
- Seat: NBR, EPDM or FKM
Applications
- Water and general service pipelines
- Industrial process lines (seat selected to suit the medium)
Standards and certification
Designed for flanges to EN 1092-2 PN10 / PN16 or ASME B16.5 Class 150, with body material to EN 1563, according to the manufacturer. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV12008L
Data sheet
- Size range
- DN40 to DN1200
- Pressure rating
- PN10 / PN16 / ASME Class 150
- Body material
- Ductile iron EN-GJS-400-15
- Valve type
- Lug butterfly valve
- Disc material
- Stainless steel CF8M
- Seat material
- NBR / EPDM / FKM
