PANAM Head Mounted Temperature Transmitters PTT-402 (Smart, ATEX and Universal Versions)
Head mounted temperature transmitters, 4 to 20 mA: PTT-402-04/05 smart dual channel with HART, ±0.1%, SIL2/SIL3 and Ex ia versions; PTT-402-06 Pt100; PTT-402-07 Pt/Ni with ATEX II 1G Ex ia IIC T6; PTT-402-08 Pt100/Ni100; PTT-402-09 universal RTD and TC input.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

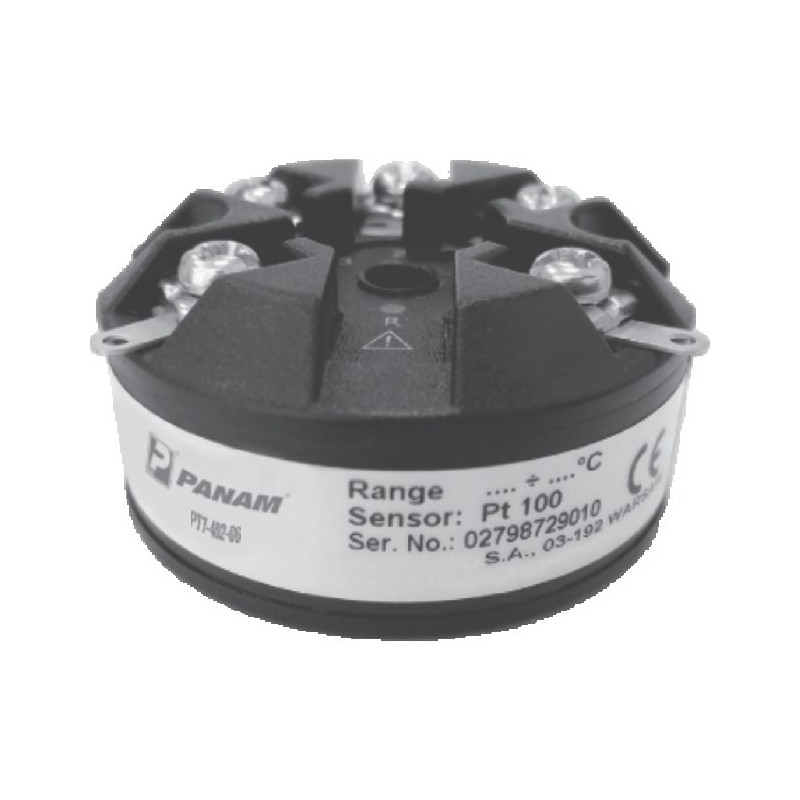

The PANAM PTT-402 family fits inside the connection head of a temperature sensor and converts RTD resistance or thermocouple voltage into a 4 to 20 mA signal. The smart PTT-402-04 (and PTT-402-05 with ATEX certificate) offers two channels, HART protocol, galvanic insulation, auto diagnostics and SIL2/SIL3 safety versions.
Simpler models cover dedicated needs: PTT-402-06 for Pt100 2 or 3 wire with failure LED, PTT-402-07 for Pt100, Pt500, Pt1000 and Ni100 with ATEX certificate II 1G Ex ia IIC T6, PTT-402-08 for Pt100 or Ni100, and the universal PTT-402-09 for thermocouples J, L, U, T, E, K, N, S, R, B and Pt/Ni sensors. Parameters can be set by PANAM and printed on the label.
Key features
- Mounting in sensor connection head
- Smart versions with HART, dual channel and SIL2/SIL3
- Intrinsic safe versions (Ex ia IIC T4/T5 Ga, Ex ia IIIC T105°C Da on PTT-402-04/05)
- ATEX certificate II 1G Ex ia IIC T6 on PTT-402-07 and PTT-402-09 (GIX-22-2 version)
- Line resistance compensation and sensor break alarm
- Ambient temperature -40 to +85 °C
Standard specification
| Output | 4...20 mA (HART on PTT-402-04/05) |
|---|---|
| PTT-402-04/05 | TC and RTD inputs, ±0.1%, supply 10...36 V DC |
| PTT-402-06 | Pt100 2/3 wire, -195 to +845 °C, accuracy ±0.2 °C ±0.05% of reading |
| PTT-402-07 | Pt100/Pt500/Pt1000/Ni100, ±0.2%, supply 8...30 V DC |
| PTT-402-08 | Pt100/Ni100, ±0.1%, supply 7.5...30 V DC |
| PTT-402-09 | TC J, L, U, T, E, K, N, S, R, B and Pt, Ni; supply 8...35 V DC |
| Ambient temperature | -40 to +85 °C |
PTT-402 models
| Model | Inputs | Output | Certificates |
|---|---|---|---|
| PTT-402-04 | RTD and TC, dual channel | 4-20 mA + HART | SIL2/SIL3 option |
| PTT-402-05 | RTD and TC, dual channel | 4-20 mA + HART | ATEX Ex ia, SIL option |
| PTT-402-06 | Pt100 2/3 wire | 4-20 mA | None stated |
| PTT-402-07 | Pt100, Pt500, Pt1000, Ni100 | 4-20 mA | ATEX II 1G Ex ia IIC T6 |
| PTT-402-08 | Pt100, Ni100 3 wire | 4-20 mA | None stated |
| PTT-402-09 | TC J/L/U/T/E/K/N/S/R/B, Pt, Ni | 4-20 mA | ATEX II 1G Ex ia IIC T6 (GIX-22-2) |
The code gives model (402), transmitter type (04 to 09), SIL level, sensor type, simplex or duplex, wiring, range and alarm signal, using the same structure as the catalogue example PTT-401-01-0-01-1-2-0~50-H.
Applications
Temperature transmitters for sensor heads on pipelines, vessels, furnaces and machinery in process, power and offshore plants.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-TT-402
Data sheet
- Manufacturer series
- PTT-402
- Product type
- Head mounted temperature transmitter
- Size range
- Head mount
- Pressure rating
- NA
- Material
- Head mount module
- Origin
- India
