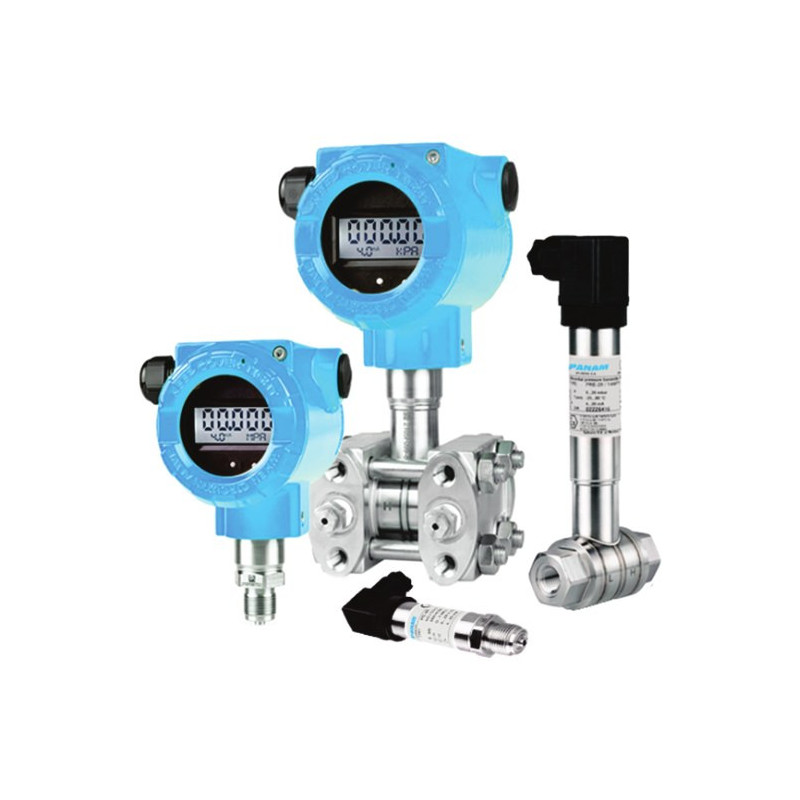

PANAM Pressure Transmitter PPT-103 (Compact Type, NACE Compatible)
Compact analog pressure transmitter for gauge, absolute and vacuum pressure, piezoresistive silicon sensor, zero and span potentiometers (±10%), 304SS or aluminium housings IP65 to IP68, wide choice of threaded and flush process connections, NACE compatibility option.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM PPT-103 pressure transmitter measures gauge pressure, absolute pressure and vacuum. The active sensing element is a piezoresistive silicon sensor separated from the medium by a diaphragm and a specially selected manometric liquid. The electronics sit in a casing with a degree of protection from IP65 to IP68 depending on the electrical connection.
Potentiometers can shift the zero and the range by up to ±10% without altering the settings (not possible with aluminium casing or the SS 304 IP68 cable version). An aluminium housing with local display and DIN 43650 connector is available for the 4...20 mA version.
Key features
- Compact design for direct mounting
- Zero and span potentiometers, adjustment up to ±10%
- Housings IP65, IP66, IP67 or IP68 depending on electrical connection
- Aluminium housing with local display (4...20 mA version)
- Process connections including G1/4", 1/4" NPT, G1/2" with radiator and flush diaphragm
- NACE compatibility and Exia/Exd certificate options
Standard specification
| Measured variable | Gauge pressure, absolute pressure, vacuum |
|---|---|
| Sensor | Piezoresistive silicon sensor with separating diaphragm |
| Adjustment | Zero and span potentiometers, ±10% |
| Housing | 304SS (IP65 to IP68) or aluminium with local display (IP65) |
| Electrical connection | DIN EN 175301-803, M12x1, packing gland, cable, DIN 43650 |
| Output (ordering code) | 4 to 20 mA with HART, Modbus or 4 to 20 mA two wires |
| Accuracy | Depends on selected range (see catalogue); ±0.15% option |
| Wetted parts | 304 SS / 316L SS |
The PPT code is built as: model (101, 102 or 103), housing material (AL aluminium, S4 SS304, S6 SS316), range code (01 to 26, custom ranges on request), output (1: 4 to 20 mA with HART, 2: Modbus, 3: 4 to 20 mA two wires), thermal compensation range, accuracy, wetted parts material, process connection, electrical connection, certificates (Exia, Exd, SIL 1/2/3, NACE MR-01-75), IP rating, test certificates, display and accessories (mounting brackets, 2 valve manifolds, needle valves, syphon, flushing rings, monoflange, sunshade, surge arrester). Select model 103. Catalogue example (model 101 shown): PPT-101-AL-09-1-0-0-5-00-1-00-1-1-1-00 (aluminium housing, range 09 = -0.5 to 0.5 bar, 4 to 20 mA with HART, standard thermal compensation, ±0.075% accuracy, SS316L wetted parts).
Applications
Oil and gas production, refineries, petrochemical and chemical plants, power generation, offshore installations and general process industries.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-PT-103
Data sheet
- Manufacturer series
- PPT-103
- Product type
- Compact pressure transmitter
- Size range
- Up to 1000 bar
- Pressure rating
- 1000 bar
- Material
- SS304 or aluminium housing
- Origin
- India
