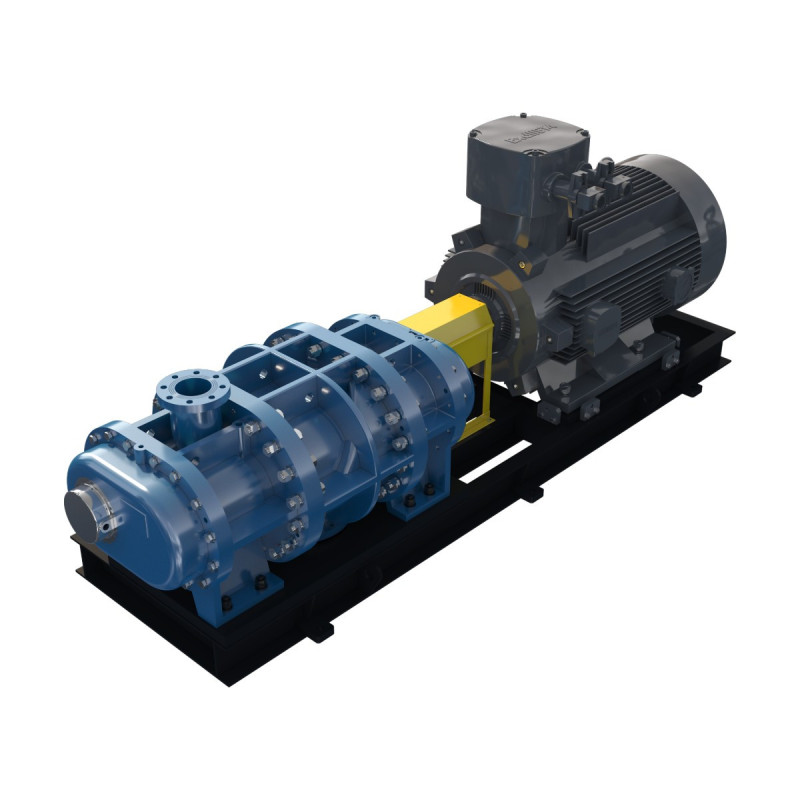

COLOSSUS KLY Screw Steam Compressor for Low Pressure Steam Recovery
Screw steam compressor that raises the pressure of low grade steam so it can be reused in process steam equipment, avoiding much of the energy spent on condensing, boosting and reheating. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Screw steam compressor that raises the pressure of low grade steam so it can be reused in process steam equipment, avoiding much of the energy spent on condensing, boosting and reheating. Positive displacement: the volume flow is almost independent of discharge pressure and efficiency stays high over a wide range. Works on saturated steam, two-phase steam, liquid and superheated water, and gives high grade heat with less energy than a boiler. Few parts and wearing parts, compact, shipped fully assembled.
Key features
- Simple structure, few wearing parts, long service life
- Small, light, small footprint
- Positive displacement: flow nearly independent of discharge pressure
- High efficiency over a wide operating range
- Recovers process vent steam, large energy savings
- Factory assembled
Technical data
| Model | KLY |
| Inlet to discharge pressure difference (single stage) | Below 1 MPa |
| Compression ratio (single stage) | Below 4 |
| Max displacement | 320 m³/min |
| Max discharge temperature | 250 °C |
Applications
- Petroleum and petrochemical
- Paper and brewing
- Food and pharmaceutical
- Iron, steel and metallurgy
- Water treatment
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-KLY
Data sheet
- Machine type
- Screw steam compressor
- Compression ratio
- Below 4 per stage
- Max displacement
- 320 m³/min
- Max discharge temperature
- 250 °C
