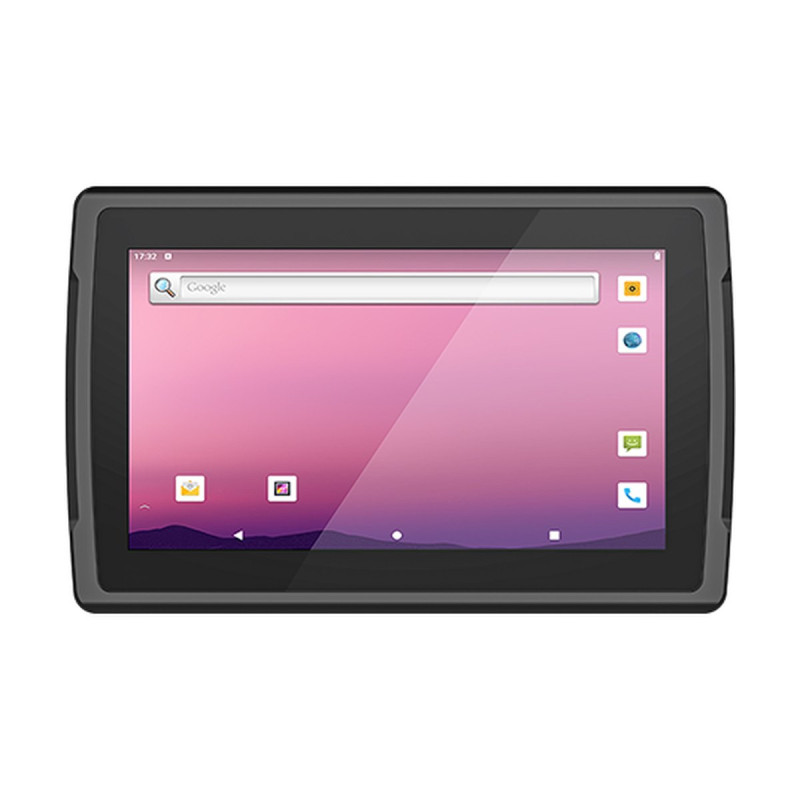

Emdoor EM-V12R 10.1 inch Android+Linux Vehicle PC
10.1″ Android + Linux vehicle PC for fleet management and in-vehicle applications.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Emdoor Vehicle PC V12R features a RK3568 Processor, Android 12+Linux Dual-System, WiFi 5, BT 5.0, optional 4G, GPS/GLONASS/Beidou, various interfaces, 6V-36V input, and IP67 rating.
Key features
- CPU: RK3568
- GPU: Mali-G52-2EE
- Operating system: Android 12 + Linux Dual-System
- Resolution: 800*1280
- Screen size: 10.1 inches
Specifications
| Basic parameters | |
|---|---|
| Dimensions | 282*181*31mm |
| Machine weight | 1150g |
| Machine color | Black |
| Display | 10.1-inch MIPI HD 16:10, resolution 1280*800,700nits |
| Touch screen | 5-Point Capacitive Screen |
| Camera | / |
| I/O Interface | SIM Card Slot: MICRO-SIM *1 TF Card Slot: MICRO-SD*1 Standard USB-A Port /Data Transfer:USB 2.0 *1, USB A Port,HOST Data Transfer Video Input: AHD*4, GX12 4-Pin Connector*4 Antenna Interfaces(Optional): TNC*2, SMA*2 26-PIN Deutsch Interfaces (Optional inthe Solution) |
| Power adapter | / |
| Wireless Communications | |
| WIFI | WIFI 802.11(aac)2.4G+5.0G(5.1/b/g/n/G+5.8G) Dual-band WIFI |
| Bluetooth | BT 5.0 |
| 2G/3G/4G/5G | 4G |
| GNSS | GPS，GLONASS，Beidou |
| Performance parameters | |
| CPU | RK3568 |
| GPU | Mali-G52-2EE |
| Operating system | Android 12 + Linux Dual-System |
| Memory | 4GB |
| Storage capacity | 64GB |
| Battery Performance | |
| Battery | Built in 2032 RTC dry battery |
| Data collection | |
| NFC | No |
| 1D | No |
| 2D | No |
| Fingerprint | No |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified |
| Drop height | 1.2m drop resistance |
Specifications may change without notice. Final configuration, certifications and lead time are confirmed in our quotation.
