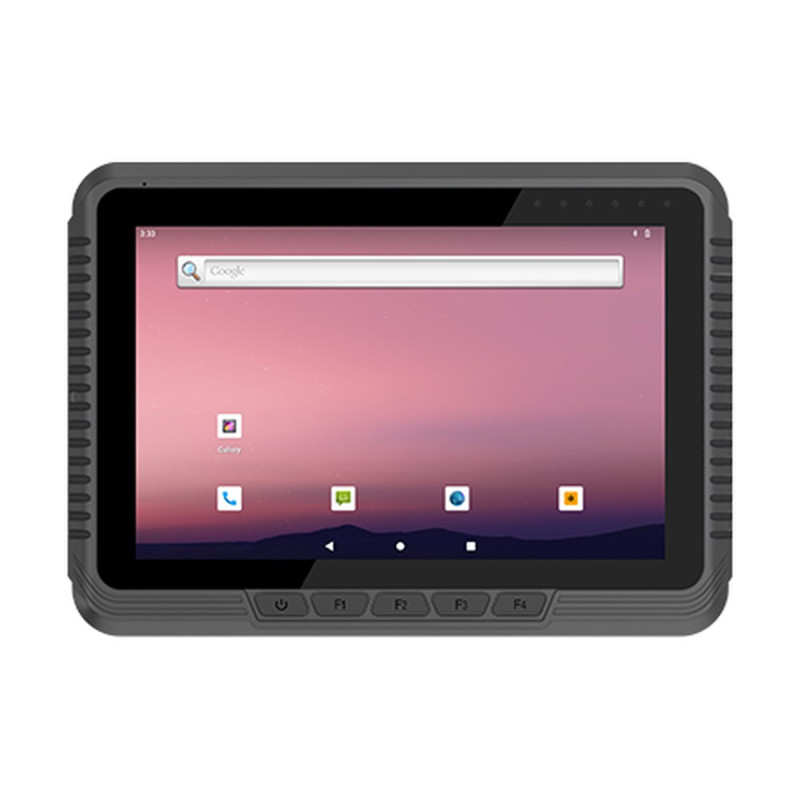

Emdoor EM-V80T 8 inch Android 12 (GMS) Vehicle-mount Tablet
8″ Android 12 GMS vehicle-mount tablet for mobile fleet management.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Emdoor V80T 8" Vehicle PC: MT 6789 processor delivers enhanced power for in-vehicle operations. Designed specifically for vehicle-based applications.
Key features
- CPU: MT 6789
- GPU: ARM G57 MC2
- Operating system: Android 12
- Resolution: 800*1280
- Screen size: 8 inches
Specifications
| Basic parameters | |
|---|---|
| Dimensions | 218.1*154.5*23.0mm |
| Machine weight | 611g |
| Machine color | Black |
| Display | 8-inch HD 16:10, resolution 800×1280, 700nits |
| Touch screen | 5 points Capacitive |
| Camera | / |
| I/O Interface | SIM card slot MICRO-SIM*1 Standard USB-A port/Data transmission Powerinterface Dcinput (Input: 12V) PORT1(M12-12)(optional) 100M network port PORT2(M12-12)(optional) RS232*1+RS232/RS485(standard)*1 PORT3(M12-12)(optional) USB 2.0*2+USB 2.0 (Default)/CAN*1 USB2.0 standard interface *3;Optional CAN for customer debugging |
| Power adapter | 12V 4A DC φ4.0 Adapter |
| Wireless Communications | |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.0G (5.1G+5.8G) |
| Bluetooth | BT 5.2 isochronous channels feature ▪ BLE_125K -104 dBm |
| 2G/3G/4G/5G | 4G |
| GNSS | Support GPS（L1 1.575GHz C/A code），Beidou（B1 1.561GHz），GLONASS(L1 1.602GHz) |
| Performance parameters | |
| CPU | MT 6789 |
| GPU | ARM G57 MC2 |
| Operating system | Android 12（GMS） |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | 2000mAh/3.7V / Built in polymer lithiumion battery |
| Data collection | |
| NFC | Optional |
| 1D | No |
| 2D | No |
| Fingerprint | No |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified, MIL-STD-810H certified |
| Drop height | 1.22m drop resistance |
Specifications may change without notice. Final configuration, certifications and lead time are confirmed in our quotation.
