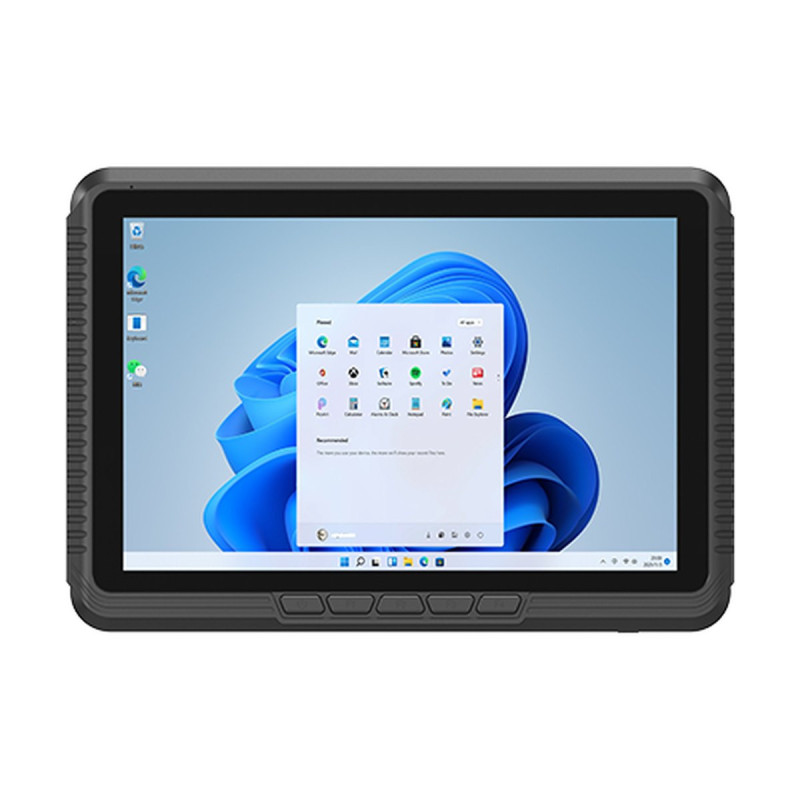

Emdoor EM-V10J 10.1 inch Windows 11 Vehicle-Mount Tablet Intel Celeron N5100
10.1″ Windows 11 vehicle PC with Intel Celeron N5100 for in-vehicle computing.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Emdoor V10J 10.1" Vehicle PC: Intel® 11th Gen Celeron® N5100 processor delivers enhanced power for in-vehicle operations. Designed specifically for vehicle-based applications.
Key features
- CPU: Intel JASPER LAKE N5100
- GPU: Intel® HD Graphics Gen 11 LP
- Operating system: Windows 10 Home
- Resolution: 800*1280
- Screen size: 10.1 inches
Specifications
| Basic parameters | |
|---|---|
| Dimensions | 264.5*184.1*23.0 mm |
| Machine weight | 834g |
| Machine color | Black |
| Display | 10.1-inch HD 16:10, resolution 800×1280, 1000nits |
| Touch screen | 10-point capacitive touch screen |
| Camera | / |
| I/O Interface | · Micro SIM ×1 · USB 3.0 (Type-A) ×1 · M12-8 (input: 12-24V) · Optional M12-12 (1000Mbps Ethernet RJ45) x 1 · Optional M12-12 (RS232 x 1 + RS485 x 1) Optional M12-12 (RS232 x 2) · Optional M12-12 (USB2.0 x 3) Optional M12-12 (USB2.0 x 2 + CAN x 1) |
| Power adapter | Optional: PWR 12V/4A DC / ADP 12V/4A DC |
| Wireless Communications | |
| WIFI | Wi-Fi 5 dual-band (2.4GHz / 5GHz) |
| Bluetooth | Bluetooth 5.1 |
| 2G/3G/4G/5G | 4G(Optional) |
| GNSS | GNSS module |
| Performance parameters | |
| CPU | Intel JASPER LAKE N5100 |
| GPU | Intel® HD Graphics Gen 11 LP |
| Operating system | Windows 11 Home / Optional Windows 11 Pro |
| Memory | 8GB |
| Storage capacity | 128GB |
| Battery Performance | |
| Battery | Optional Li-ion battery, 7.4V, 1000mAh; supports battery-free mode |
| Data collection | |
| NFC | NFC 13.56MHz reader (Optional) |
| 1D | No |
| 2D | No |
| Fingerprint | No |
| Product reliability | |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 95%, no condensation |
| Protection level | IP65 certified |
| Drop height | 1.22m drop resistance |
Specifications may change without notice. Final configuration, certifications and lead time are confirmed in our quotation.
