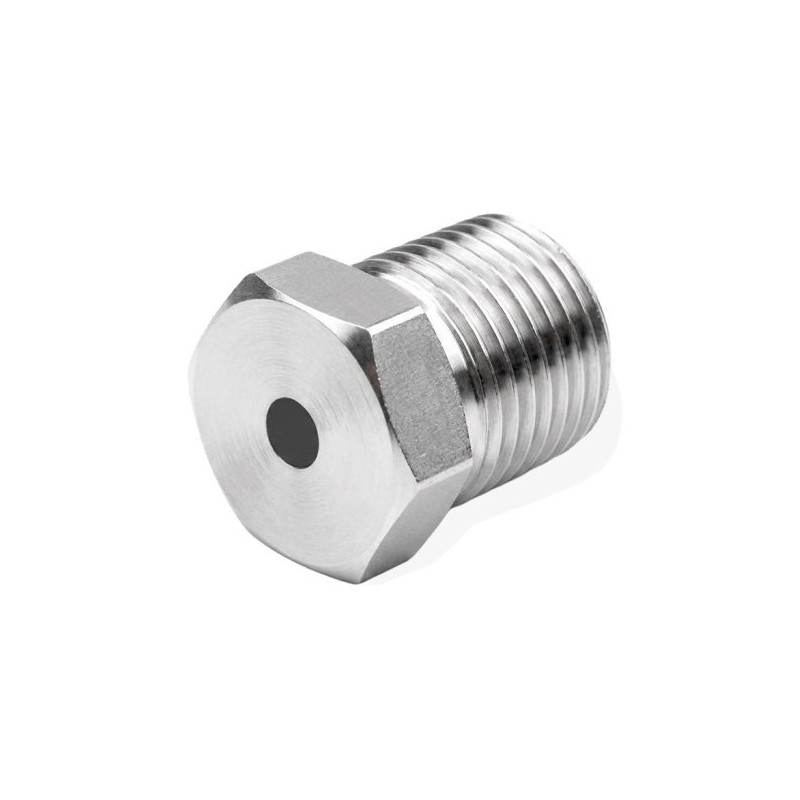

PANAM Fusible Plugs PFP Series (Eutectic Alloy, 71 to 138 °C)
SS 316 fusible plugs filled with eutectic alloy, melting points 160, 212, 255 or 281 °F (71, 100, 124 or 138 °C), tested to 500 psig (34.4 bar). 1/4", 3/8" or 1/2" NPT, BSPT, BSPP or tube stub. Liquid and gas service.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
A PANAM fusible plug is a temperature actuated pressure relief device made of a body filled with a eutectic alloy of defined melting point. When exposed to a temperature equal to or higher than the melting point, the alloy melts and discharges pressure to atmosphere, preventing system overpressure.
Plugs have an SS 316 (or SS 316L) body, are suitable for liquid and gas service, and are offered with pipe thread or tube stub ends in four temperature ratings. Fusible plugs are non-reusable devices.
Every fusible plug is factory tested up to its maximum pressure rating for no detectable leakage, cleaned and packaged to PANAM standard, and complies with NACE MR0175 and MR0103 with heat code traceability.
Key features
- SS 316 body filled with eutectic alloy
- Four melting points: 160, 212, 255 and 281 °F (71, 100, 124 and 138 °C)
- Tested to 500 psig (34.4 bar)
- Suitable for liquid and gas service
- Pipe thread or tube stub end connections
- Body marked with the melting point designator
Standard specification
| Function | Thermally actuated, non-reusable pressure relief device |
|---|---|
| Melting points | 160 °F (71 °C), 212 °F (100 °C), 255 °F (124 °C), 281 °F (138 °C) |
| Maximum operating pressure | Tested to 500 psig (34.4 bar) |
| Sizes | 1/4", 3/8", 1/2" |
| End connections | NPT, BSPT, BSPP male thread or tube stub |
| Materials | Body SS 316 or SS 316L, eutectic alloy fill |
| Testing | Factory tested to maximum pressure rating, no detectable leakage |
Range
| End connection | Sizes | Example part number |
|---|---|---|
| NPT | 1/4", 3/8", 1/2" | PFP-4N-SS-160 |
| BSPT | 1/4", 3/8", 1/2" | PFP-6R-SS-212 |
| BSPP | 1/4", 3/8", 1/2" | PFP-8G-SS-255 |
| Tube stub | 1/4", 3/8", 1/2" | PFP-4T-SS-281 |
Ordering code: P + FP, connection size (4, 6, 8), connection type (N = NPT, R = BSPT, G = BSPP, T = tube stub), material (SS, SSL) and melting point designator (160, 212, 255, 281). Example: PFP-4N-SS-160 = 1/4" NPT fusible plug, SS 316, 160 °F (71 °C).
Applications
Overtemperature and fire protection of pressurized instrument, pneumatic and gas systems, in liquid or gas service, in oil and gas, chemical and power plants.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-FP
Data sheet
- Manufacturer series
- PFP
- Product type
- Fusible plug
- Size range
- 1/4 in to 1/2 in
- Pressure rating
- 500 psig
- Material
- SS 316
- Origin
- India
