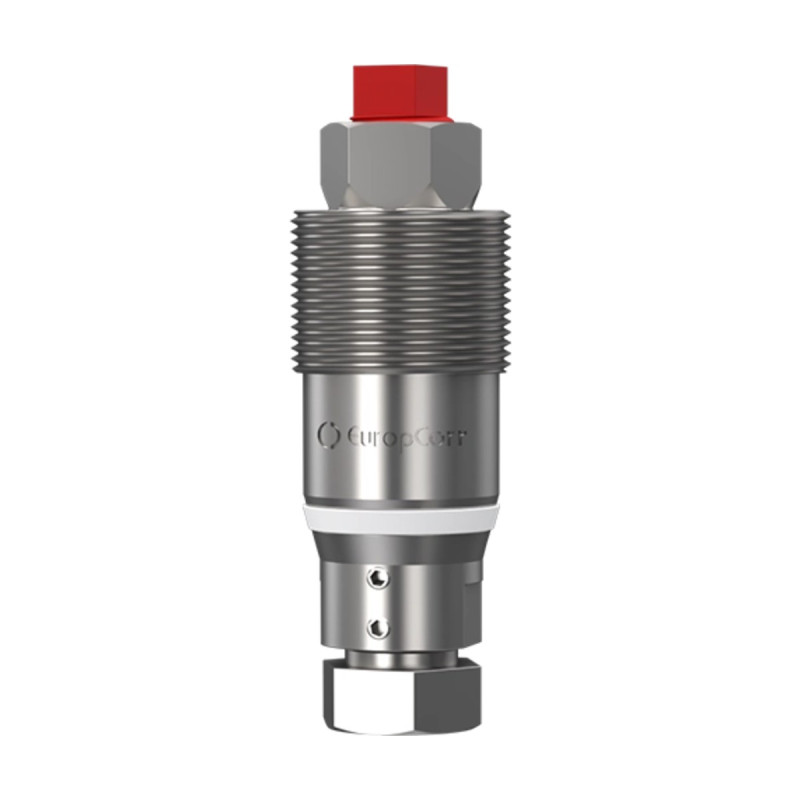

EuropCorr Mechanical Hollow Plug Assembly

The Mechanical Hollow Plug is the internal part of the Mechanical Access Fitting. It seals in the line pressure and acts as the retrievable carrier for ER probes, LPR probes, hydrogen probes and any other sensor requiring a cable connection. The plug threads can be PTFE coated on request to reduce the risk of galling.

Part of the EuropCorr Mechanical Access System, the traditional and economical assembly giving access to pipelines and vessels under full operating pressure without shutdown. The assembly is made of a Mechanical Access Fitting, a Solid or Hollow Plug and a Heavy Duty or Pressure Retaining Cover, and allows corrosion coupons, probes and chemical injection or sampling devices to be inserted and retrieved with the Mechanical Retrieval Tool Kit (installation under pressure with the Hot Tap Tool Kit).

Components and spare parts

• Hollow plug body, AISI 316L (Part No. 220004)
• Primary packing, 25% glass-filled PTFE (320001)
• Hollow plug nut, AISI 316L (320007)
• Hollow plug sealing nut, AISI 316L (320008)
• Probe packing, PTFE (350001)
• Set screw M5x5, SIS 2343 (A4) (320005)
• Pipe plug, plastic (300003)

Specifications

Special materials are available on request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
