EuropCorr Low Pressure Retractable Strip Coupon System
Retractable strip coupon system for lines up to 103 bar, through a 1" full-port ball valve; flanged or NPT. Coupon 76 x 13 x 1.6 mm.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

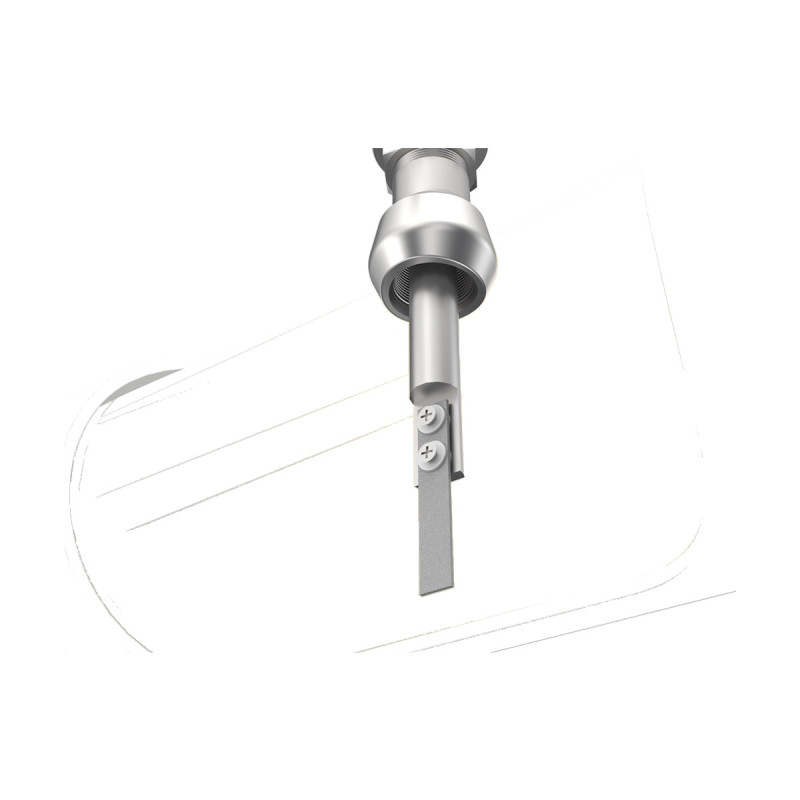

The low pressure strip coupon holder carries a single strip coupon in the desired monitoring position. Retractable strip coupons measure 76 x 13 x 1.6 mm with two mounting holes and an exposed area of 20.5 cm²; holders are supplied with mounting hardware.
The EuropCorr Low Pressure Retractable System allows safe insertion and removal of probes, coupons and injection or sampling equipment in process systems up to 1,500 psi (103 bar) without shutdown. Access is through a standard 1" NPT full-port ball valve, and a packing gland with PTFE packing ensures the pressure seal; a safety clamp and safety locking nut secure the assembly. Standard systems mount on a 1" NPT threadolet or a 1" flange (ASTM A105N); a 1-1/2" NPT access fitting assembly is available on request.
Weight loss coupons are the simplest and longest established method of estimating corrosion losses; the corrosion rate is calculated according to NACE RP0775. Coupons are insulated from the holder, individually serial-numbered and certified (weight to four decimal places, dimensions, material), and packed in moisture-resistant inhibited envelopes with a one-year shelf life.
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Maximum pressure | 1,500 psi (103 bar) |
| Maximum temperature | 450 °F (232 °C) |
| Access | 1" NPT full-port ball valve, AISI 316L |
| Mounting | 1" NPT threadolet or 1" flange (1-1/2" NPT on request) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156 |
| Main parts | |
|---|---|
| Item | Part No. |
| Strip coupon holder, AISI 316L | 540001 |
| 1" strip coupon, AISI 1018 | 540003 |
| Insulators kit, 25% glass-filled PTFE | 540007 |
| Bolt / nut / washer M5 | 540005 / 540006 / 540013 |
| Packing gland 20, AISI 316L | 500001 |
| Packing set 20, 25% glass-filled PTFE | 500003 |
| Locking nut 20 / safety locking nut 20 | 500005 / 500006 |
| Safety clamp, AISI 316L | 500007 |
Please state the flanged or NPT version, insertion length and coupon material in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-540001
