EuropCorr Low Pressure Retractable Scale Coupon System
Retractable scale coupon system for lines up to 103 bar, through a 1" full-port ball valve, to evaluate scaling tendency without shutdown.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

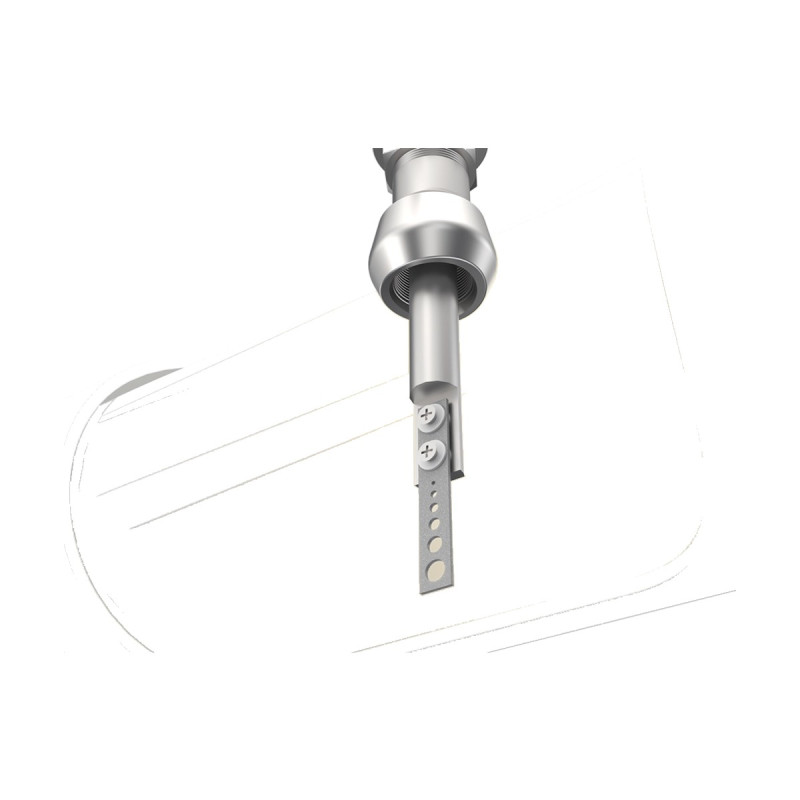

The scale coupon has a series of machined holes of different sizes: scale forms first in the smallest holes, and the largest hole that has accumulated scale shows the scaling tendency of the fluid. It is mounted on the low pressure strip coupon holder.
The EuropCorr Low Pressure Retractable System allows safe insertion and removal of probes, coupons and injection or sampling equipment in process systems up to 1,500 psi (103 bar) without shutdown. Access is through a standard 1" NPT full-port ball valve, and a packing gland with PTFE packing ensures the pressure seal; a safety clamp and safety locking nut secure the assembly. Standard systems mount on a 1" NPT threadolet or a 1" flange (ASTM A105N); a 1-1/2" NPT access fitting assembly is available on request.
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Maximum pressure | 1,500 psi (103 bar) |
| Maximum temperature | 450 °F (232 °C) |
| Access | 1" NPT full-port ball valve, AISI 316L |
| Mounting | 1" NPT threadolet or 1" flange (1-1/2" NPT on request) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156 |
| Main parts | |
|---|---|
| Item | Part No. |
| 1" scale coupon, AISI 1018 | 540012 |
| Strip coupon holder, AISI 316L | 540001 |
| Insulators kit | 540007 |
| Bolt / nut / washer M5 | 540005 / 540006 / 540013 |
| Packing gland 20, AISI 316L | 500001 |
| Packing set 20, 25% glass-filled PTFE | 500003 |
| Locking nut 20 / safety locking nut 20 | 500005 / 500006 |
| Safety clamp, AISI 316L | 500007 |
Please state the flanged or NPT version, insertion length and coupon material in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-540012
