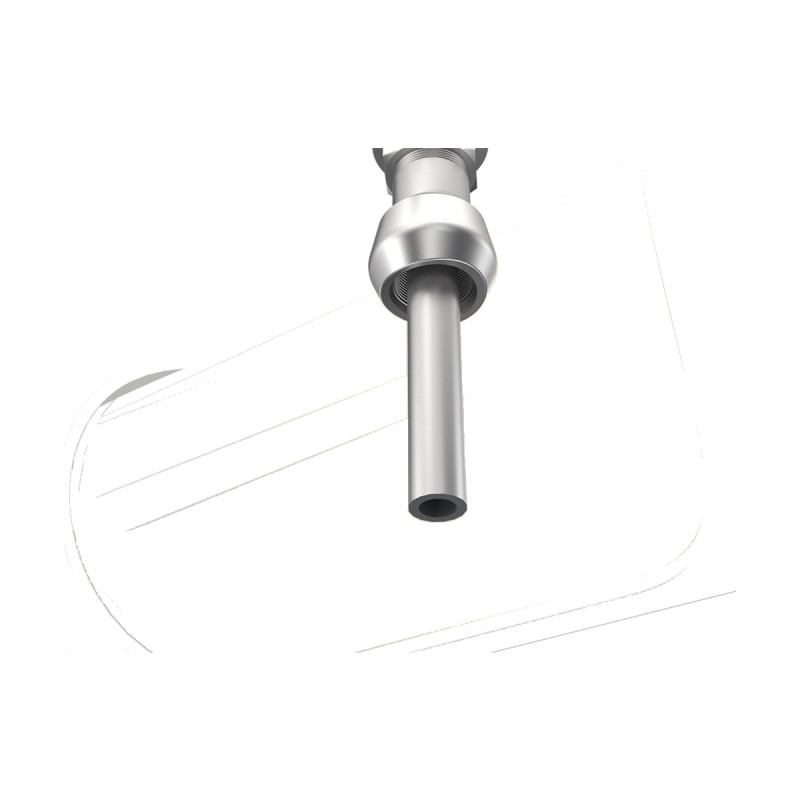

EuropCorr Low Pressure Retractable Sampling Tube System
Retractable open sampling tube for lines up to 103 bar, through a 1" full-port ball valve, with ball or needle valve on the sampling side.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The retractable open sampling tube takes representative process samples from the desired position in the line, and can be withdrawn without shutdown. The sampling side is fitted with a ball or needle valve (AISI 316L).
The EuropCorr Low Pressure Retractable System allows safe insertion and removal of probes, coupons and injection or sampling equipment in process systems up to 1,500 psi (103 bar) without shutdown. Access is through a standard 1" NPT full-port ball valve, and a packing gland with PTFE packing ensures the pressure seal; a safety clamp and safety locking nut secure the assembly. Standard systems mount on a 1" NPT threadolet or a 1" flange (ASTM A105N); a 1-1/2" NPT access fitting assembly is available on request.
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Maximum pressure | 1,500 psi (103 bar) |
| Maximum temperature | 450 °F (232 °C) |
| Access | 1" NPT full-port ball valve, AISI 316L |
| Mounting | 1" NPT threadolet or 1" flange (1-1/2" NPT on request) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156 |
| Main parts | |
|---|---|
| Item | Part No. |
| Sampling tube open, AISI 316L | 560007 |
| Packing gland 21, AISI 316L | 500002 |
| Packing set 21, 25% glass-filled PTFE | 500004 |
| Locking nut 21 | 500013 |
| Packing shaft 21 | 500024 |
Please state the flanged or NPT version, insertion length and connection sizes in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-560007
