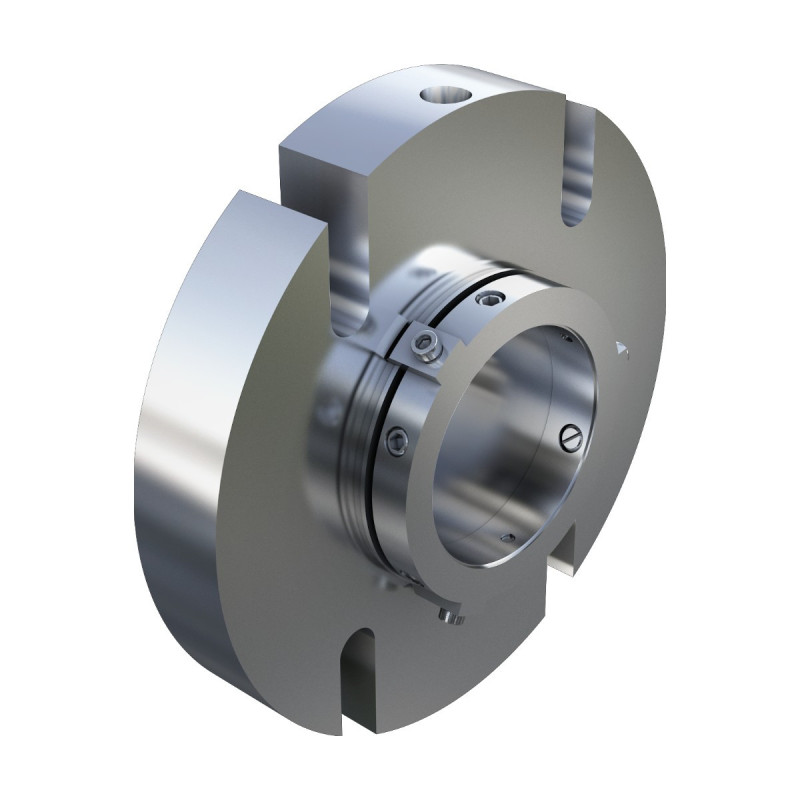

COLOSSUS CK300 Multi-Spring Cartridge Mechanical Seal (ANSI / DIN pumps)

Balanced cartridge seal with external multiple springs. Installation dimensions fit ANSI and DIN process pumps, in metric and inch sizes. The rotating face design was optimized by finite element analysis and validated by testing for low face emissions, and a reverse balance structure withstands short back pressure. Wide choice of materials.

Key features

• Cartridge design: removes installation errors
• Fits ANSI and DIN process pump seal chambers, metric and inch series
• Quick positioning pin drive
• Reverse balance: withstands momentary back pressure
• Balanced design, wide pressure range
• External multiple springs: uniform face load, less clogging

Technical data

Materials

• Seal faces: Graphite or resin-impregnated graphite against silicon carbide
• Springs: Hastelloy C or austenitic stainless steel
• Metal parts: Cr-Ni-Mo steel
• Secondary seals: FKM (Viton), NBR or FFKM

Other material combinations are available on request for specific media.

Applications

• Oil and gas
• Chemical and pharmaceutical
• Power and metallurgy
• Steel
• Water treatment and papermaking
• Mining

Standards

Reference standards listed by the manufacturer: API Std 682, JB/T 4127. Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
