PANAM Bleed Valves PBLV Series (Bonnet Type, up to 10,000 psig)
Bonnet type bleed valves to relieve pressure trapped between a shut-off valve and an instrument, 1/4", 3/8" or 1/2" male NPT, BSPT or BSPP. FKM packing to 6,000 psi (414 bar), PTFE or Grafoil packing to 10,000 psi (689 bar), up to 648 °C. SS 316 standard, alloys on request.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

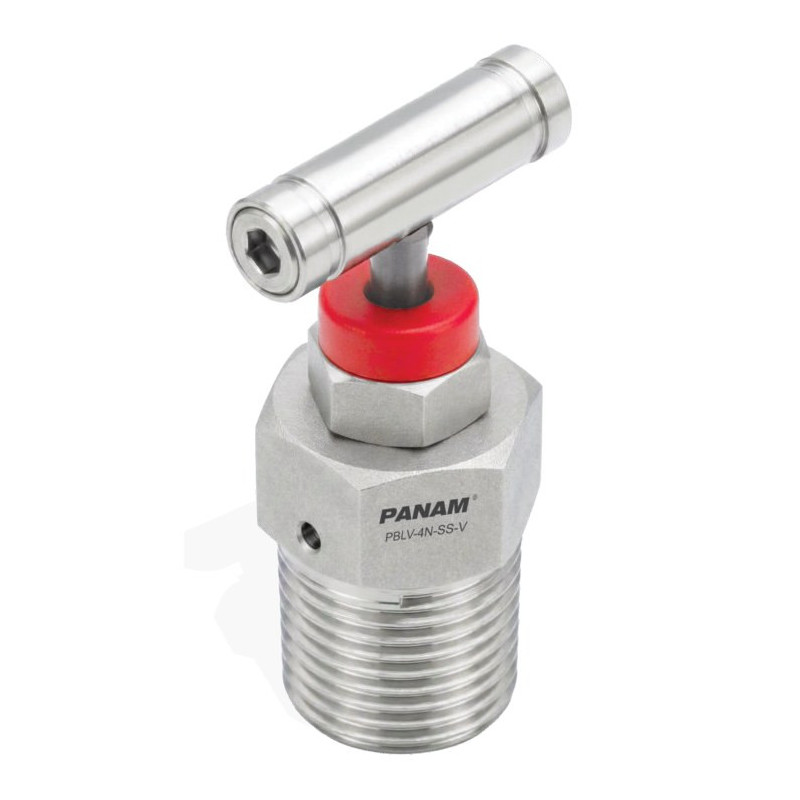

PANAM bleed valves provide a convenient means to relieve process pressure trapped between a shut-off valve and the instrument. They use the same bonnet assemblies as the PANAM mini valves on an integrated single threaded body that screws into the vent port.
Three bonnet versions are available: FKM O-ring packing (V) rated to 6,000 psi (414 bar), and PTFE (T) or Grafoil (HT) packing bonnets with spindle, check nut and thrust washer, rated to 10,000 psi (689 bar) with the 10K option. Grafoil packing extends the temperature range to 648 °C (1198 °F).
Every bleed valve is factory tested up to its maximum pressure rating for no detectable leakage, cleaned and packaged to PANAM procedure PWI/5.7/21, and complies with NACE MR0175 and MR0103 with heat code traceability.
Key features
- Relieves pressure trapped between shut-off valve and instrument
- Mini valve bonnet assembly on an integral single threaded body
- FKM, PTFE or Grafoil stem packing options
- Up to 10,000 psi (689 bar) with PTFE or Grafoil packing
- Standard body material SS 316, alloys on request
- NACE option (SG), factory tested for no detectable leakage
Standard specification
| Bonnet types | V: FKM packing; T: PTFE packing; HT: Grafoil packing |
|---|---|
| Sizes | 1/4", 3/8", 1/2" |
| Inlet connection | Male NPT, male BSPT or male BSPP |
| Working pressure | 6,000 psi (414 bar) with FKM; 10,000 psi (689 bar) with PTFE or Grafoil (10K option, T and HT only) |
| Temperature | FKM -26 to 230 °C (-14.8 to 446 °F), PTFE -54 to 232 °C (-65 to 450 °F), Grafoil -40 to 648 °C (-40 to 1198 °F) |
| Materials | Body, handle, spindle, retainer SS 316; SS 316L, carbon steel, Hastelloy C276, Inconel 625, Inconel 825 on request |
| Testing | Factory tested to maximum pressure rating, no detectable leakage |
Configurations
| Bonnet | Code | Max pressure | Example part number |
|---|---|---|---|
| FKM packing bonnet | V | 6,000 psi (414 bar) | PBLV-4N-SS-V |
| PTFE packing bonnet | T | 10,000 psi (689 bar) with 10K | PBLV-6N-SS-T-10K |
| Grafoil packing bonnet | HT | 10,000 psi (689 bar) with 10K | PBLV-8R-SS-HT |
Ordering code: P + BLV, connection size (4, 6, 8), connection type (N = NPT, R = BSPT, G = BSPP), material (SS, SSL, CS, HC, INC625, INC825), configuration (V, T, HT) and options (SG = NACE, 10K = 10,000 psig for T and HT only). Example: PBLV-4N-SS-V-SG.
Applications
Venting of instrument impulse lines, gauge and transmitter connections and valve vent ports before maintenance in oil and gas, chemical processing and power generation.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-BLV
Data sheet
- Manufacturer series
- PBLV
- Product type
- Bleed valve
- Size range
- 1/4 in to 1/2 in
- Pressure rating
- 6000 psi or 10000 psi
- Material
- SS 316 standard (alloys on request)
- Origin
- India
