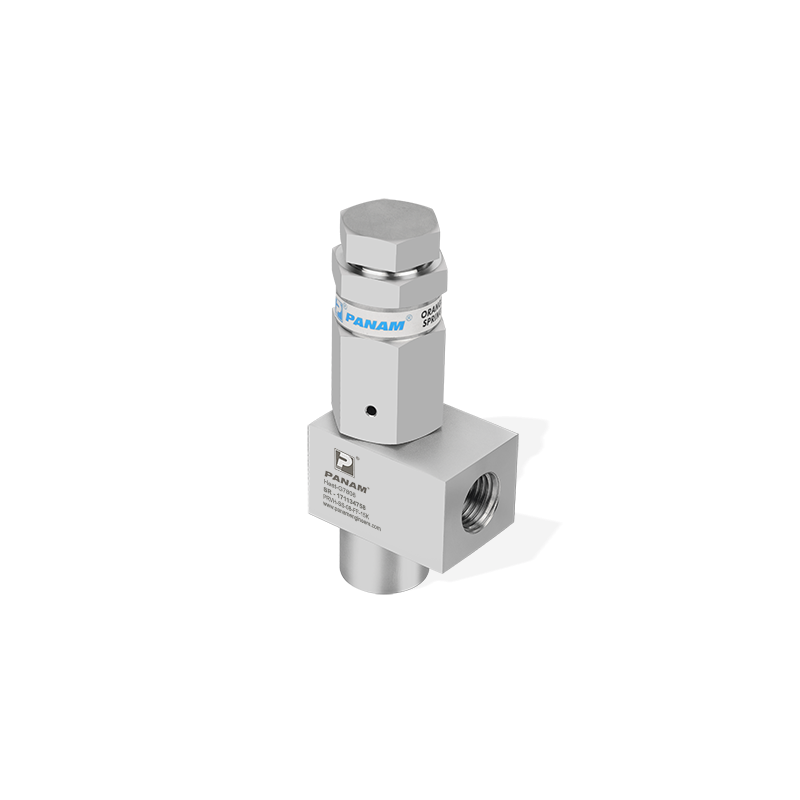

PANAM Relief Valve RVH-10K and RVH-15K Series (up to 15,000 psi)
Ultra high pressure relief valves with bar stock SS 316 body and 1.5 mm (0.06") orifice: RVH-10K set 5,000 to 10,000 psi (345 to 689 bar), RVH-15K set 7,500 to 15,000 psi (517 to 1034 bar). 1/4", 3/8", 1/2" or M20x1.5, male x female or female x female, NPT, BSPT or BSPP.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM RVH-10K and RVH-15K series are ultra high pressure relief valves for process and instrumentation equipment, with working pressures up to 10,000 psi (689 bar) and 15,000 psi (1034 bar) respectively.
Both versions use a bar stock SS 316 body, a 1.5 mm (0.06") orifice, a 17-4 PH stem and a single spring covering the full set pressure range: pink spring I (5,000 to 10,000 psi) for the 10K version and red spring J (7,500 to 15,000 psi) for the 15K version. Cracking pressure is adjusted externally and a lock wire secures the setting.
Every valve is factory tested for set and reseal performance, cleaned and packaged to PANAM procedure PWI/5.7/21. Valves can be supplied to meet NACE MR0175 (option SG) and oxygen cleaned (OXY).
Key features
- Working pressure up to 10,000 psi (RVH-10K) or 15,000 psi (RVH-15K)
- Bar stock SS 316 body construction
- One spring for the full set pressure range
- Cracking pressure adjustable externally, lock wire to secure the setting
- FKM O-rings standard, NBR, EPDM or Kalrez on request
- Options: NACE MR0175, oxygen cleaning; spare spring and seal kits
Standard specification
| Working pressure | RVH-10K: 10,000 psi (689 bar); RVH-15K: 15,000 psi (1034 bar) |
|---|---|
| Set pressure range | RVH-10K: 5,000 to 10,000 psi (345 to 689 bar); RVH-15K: 7,500 to 15,000 psi (517 to 1034 bar) |
| Orifice | 1.5 mm (0.06") |
| Sizes | 1/4", 3/8", 1/2", M20x1.5 |
| End connections | Male x female (MF) or female x female (FF); NPT, BSPT or BSPP |
| Seals / seat | FKM (standard), Buna-N (NBR), EPDM or Kalrez (FFKM) |
| Materials | Body and internal parts ASTM A479 SS316, stem ASTM A564 (17-4 PH), spring steel spring; SS 316L body option |
| Testing | Factory tested for set and reseal performance |
Versions
| Series | Spring | Set pressure | Example part number |
|---|---|---|---|
| RVH-10K | I (pink) | 5,000 to 10,000 psi (345 to 689 bar) | PRVH-SS-04-MF-10K-KZ-SG |
| RVH-15K | J (red) | 7,500 to 15,000 psi (517 to 1034 bar) | PRVH-SS-08-FF-15K |
Ordering code: PRVH, body material (SS, SSL), connection size (04, 06, 08, 20M), thread type (blank = NPT, R = BSPT, G = BSPP), connection type (MF, FF), spring (10K or 15K), seal and seat material (blank = FKM, NB, EPDM, KZ) and options (SG, OXY). Example: PRVH-SS-04-MF-10K-KZ-SG = 1/4" NPT male x female, 10,000 psi, Kalrez seals, NACE.
Applications
Overpressure protection of ultra high pressure lines, wellhead control and chemical injection systems, test benches and hydraulic circuits in oil and gas and process industries.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-RV-RVH-UHP
Data sheet
- Manufacturer series
- RVH-10K and RVH-15K
- Product type
- Ultra high pressure relief valve
- Size range
- 1/4 in to 1/2 in
- Pressure rating
- 10000 psi or 15000 psi
- Material
- SS 316
- Origin
- India
