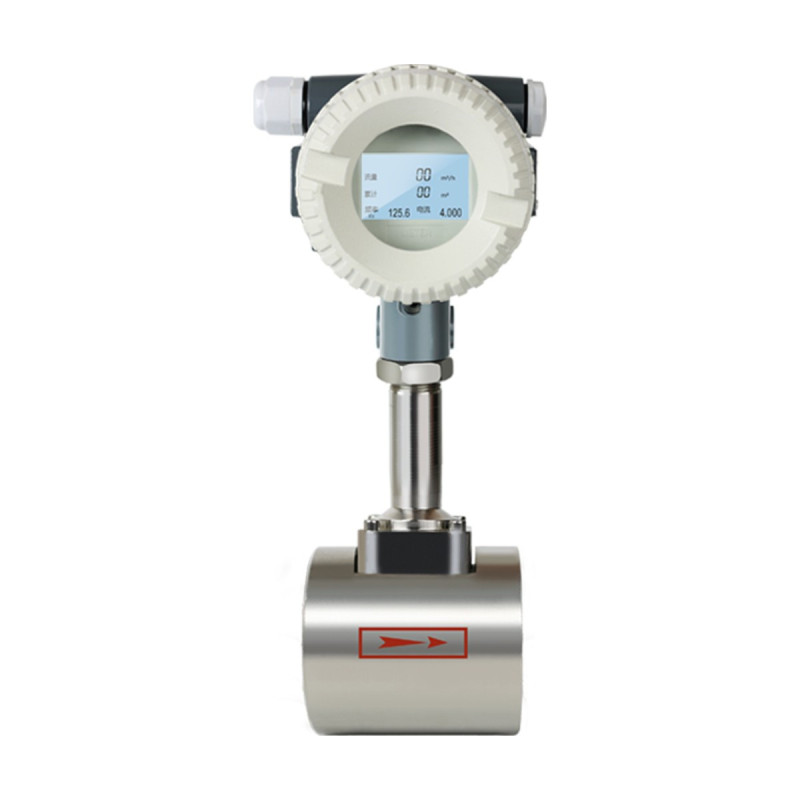

Vortex Flow Meter (DN15 to DN300, up to 350 °C, liquid / gas / steam)
Vortex flow meter for liquids, gases and steam, DN15 to DN300 flange or wafer, ±1.0 % (liquid) / ±1.5 % (gas and steam), up to 350 °C, 4 to 20 mA / pulse, optional temperature and pressure compensation.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The vortex flow meter measures the flow of liquids, gases and steam based on the Karman vortex street principle: the frequency of vortices shed by a bluff body is proportional to the flow velocity. With no moving parts, it is a robust choice for steam and utility metering.
Signal processing with differential detection, shielding and filtering gives good immunity to vibration and noise. Versions with integrated temperature and pressure compensation provide mass or standard volume flow.
Key features
- No moving parts, low maintenance
- One meter type for liquid, gas and steam
- Compact and remote versions; flange or wafer connection
- Pulse, 2-wire 4 to 20 mA or 4 to 20 mA / pulse with local display
- Optional temperature and pressure compensation
- Optional RS485 Modbus or HART and battery supply
Technical data
| Model | AG-FLW-103 series (N: pulse; A: 2-wire 4 to 20 mA; V/D: local display) |
| Nominal size | DN15 to DN300 (1/2" to 12") |
| Media | Liquid, gas, saturated and superheated steam |
| Accuracy | Liquid ±1.0 % of rate; gas and steam ±1.5 % of rate |
| Turndown | 10:1 standard |
| Process temperature | -20 to +70 °C / -20 to +250 °C / -20 to +350 °C (T1 / T2 / T3) |
| Pressure rating | PN25 (DN15 to DN80), PN16 (DN100 to DN200), PN10 (DN200 to DN300); others on request |
| Process connection | Flange or wafer; EN 1092-1, ASME 150 lb RF, JIS 10K / 20K |
| Materials | Body SS304 (others on request); converter housing polyurethane-coated die-cast aluminium |
| Output | Pulse / scaled pulse, 4 to 20 mA (2-wire or 3-wire) |
| Communication | RS485 Modbus or HART (optional) |
| Power supply | 24 V DC; 12 V DC or 3.6 V battery versions |
| Protection | IP67 |
| Ambient temperature | -10 to +55 °C |
| Straight runs | 10 DN upstream, 5 DN downstream (minimum) |
Applications
- Saturated and superheated steam metering for boilers and heat exchangers
- Compressed air, nitrogen, oxygen and fuel gas distribution
- Water, low-viscosity oils, solvents and liquid ammonia
- Energy management and HVAC systems
Hazardous areas
Explosion-proof versions (flameproof converter housing) are declared by the manufacturer; the exact Ex marking is not stated in the documentation. Certificates (ATEX / IECEx where applicable) are provided on request with the quotation.
Supplied on quotation and configured to your process data (range, process connection, materials, output, options). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-FLW-103
Data sheet
- Accuracy
- ±1.0 % liquid; ±1.5 % gas and steam
- Output
- 4 to 20 mA / pulse; RS485 or HART option
- Process connection
- Flange or wafer DN15 to DN300
- Protection
- IP67
- Measuring principle
- Vortex (Karman)
- Max. temperature
- 350 °C
