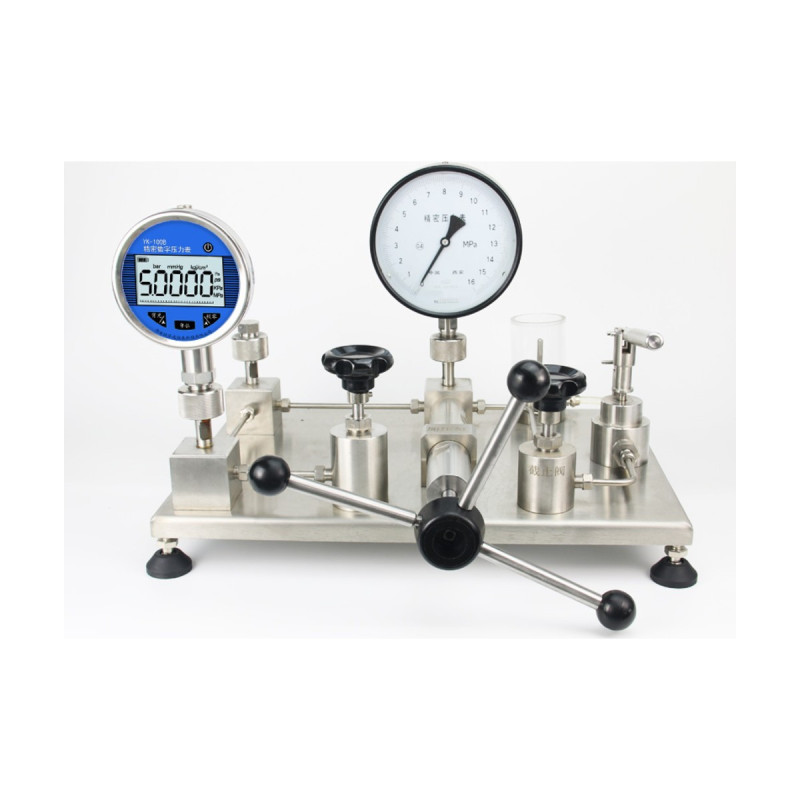

Desk-Top Hydraulic Pressure Calibration Pump (up to 250 MPa)
Bench-top hydraulic pressure source AG-CAL-104 with screw pressurisation, hard seals and fine adjustment. Six models from 0 to 30 MPa up to 0 to 250 MPa, two M20 x 1.5 quick-connect outputs.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The AG-CAL-104 desk-top hydraulic pressure calibration pump is a pressure source for calibrating pressure and differential pressure transmitters, precision and standard pressure gauges, and pressure sensors. It reaches up to 250 MPa.
The unit uses a rigid pressure module with hard core seals to prevent leakage, and is built in stainless steel. It accepts various transmission media (water, alcohol, aviation hydraulic oil, edible oil), and its open structure simplifies cleaning and maintenance.
Key features
- Screw-type pressure increase and release for stable pressure and easy descending checks
- Hard seals for long life without leakage
- Ultra-fine adjustment of the pressure
- Two output ports (more on request) with quick-union connection, no spanner needed
- Open structure for easy cleaning and maintenance
- Pre-loading handle, shut-off valve, relief valve, filter and oil cup
Technical data
| Model | AG-CAL-104-2003A / B / C / D / E / F |
| Pressure ranges | A: 0 to 30 MPa; B: 0 to 60 MPa; C: 0 to 100 MPa; D: 0 to 160 MPa; E: 0 to 200 MPa; F: 0 to 250 MPa |
| Medium | Hydraulic oil (A to D); castor oil (E and F); other liquids possible |
| Output ports | 2 x M20 x 1.5 quick union; adapters on request |
| Min. controllable adjustment | 0.2 MPa |
| Reservoir volume | 700 ml |
| Material | Stainless steel |
| Dimensions | 410 x 310 x 180 mm |
| Weight | 10 kg |
Applications
- Calibration of pressure and differential pressure transmitters
- Verification of precision and industrial pressure gauges
- Testing of pressure sensors and switches
- Workshop and laboratory calibration in process industries
Hazardous areas
For use in workshops and laboratories (safe area).
Supplied on quotation and configured to your requirements (range, medium, adapters, number of outputs). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-CAL-104
Data sheet
- Hazardous area
- Laboratory use (safe area)
- Output
- Pressure source (no indication)
- Process connection
- 2 x M20 x 1.5 quick union
- Measuring principle
- Hydraulic screw pressure source
- Max. pressure
- 250 MPa
