Fully Automatic Pressure Calibrator / Controller (gas and hydraulic, up to 250 MPa)
Fully automatic pressure controller for gas (-0.095 to 6 MPa) and hydraulic ranges up to 250 MPa, with external digital pressure gauge module and RS485 interface.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

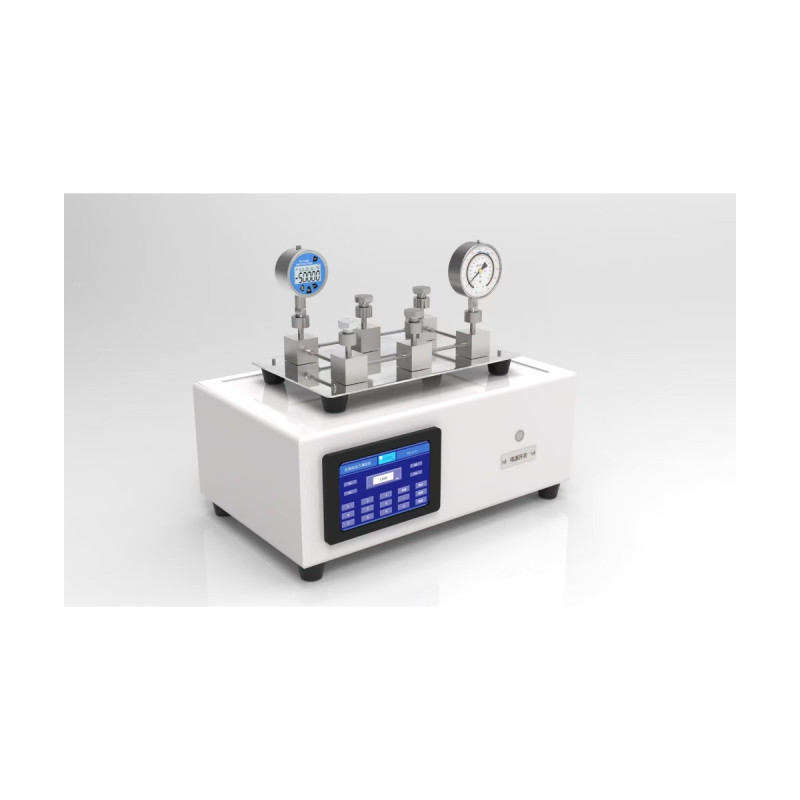

The automatic pressure controller is a fully automatic pressure calibrator for gas and hydraulic systems. It generates and controls pressure automatically, reducing manual intervention during calibration and improving throughput and repeatability.
An external module with digital pressure gauge provides an RS485 interface for data transfer and remote monitoring.
Key features
- Fully automatic pressure generation and control
- Gas and hydraulic versions; micro-pressure version on request
- External digital pressure gauge module
- RS485 communication for data transmission and remote monitoring
Technical data
| Model | Automatic pressure controller (model on request) |
| Gas pressure range | -0.095 to 6 MPa (range selectable) |
| Hydraulic pressure ranges | 0 to 6 MPa; 0 to 60 MPa; 0 to 100 MPa; 0 to 160 MPa; 0 to 250 MPa |
| Micro pressure | On request |
| Reference | External digital pressure gauge module |
| Communication | RS485 |
| Operation | Fully automatic |
Applications
- Pressure calibration of industrial instruments
- Pressure testing in oil and gas, chemical and metallurgical industries
- Laboratories and research
Hazardous areas
For use in workshops and laboratories (safe area).
Supplied on quotation and configured to your requirements (medium, range, reference module, software). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-CAL-109
Data sheet
- Hazardous area
- Laboratory use (safe area)
- Output
- RS485 via digital gauge module
- Measuring principle
- Automatic pressure controller
- Max. pressure
- 250 MPa (hydraulic)
