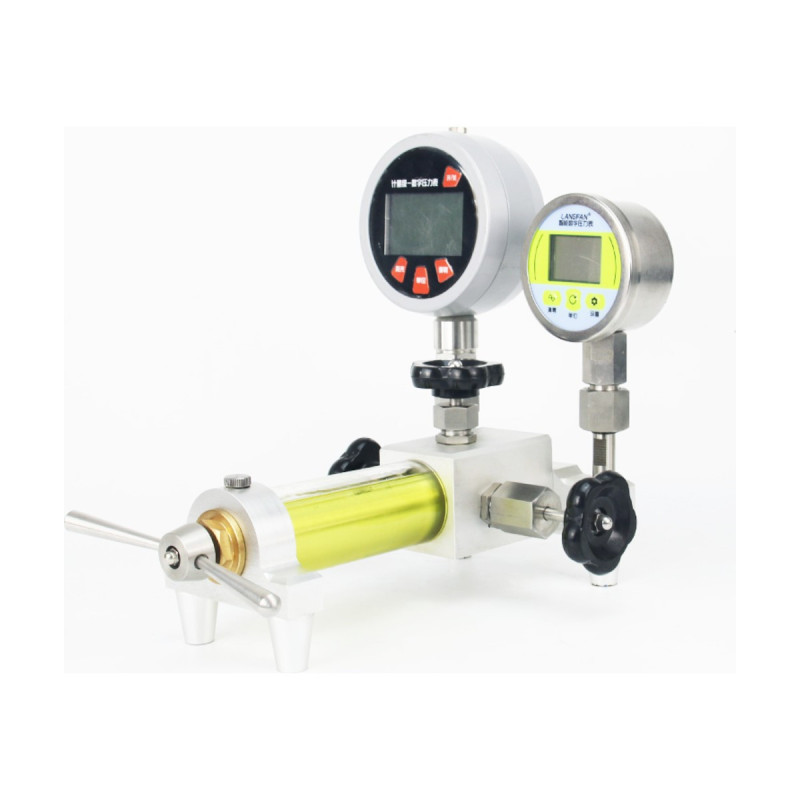

Portable Hydraulic Pressure Calibrator (-0.09 to 60 MPa)
Portable manual hydraulic pressure source AG-CAL-106 for on-site calibration: -0.09 to 60 MPa with water or hydraulic oil, 10 kPa fine adjustment, two M20 x 1.5 outputs.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The AG-CAL-106 is a portable manual hydraulic pressure calibrator designed for on-site work, where bench-top pressure sources and piston gauges are too bulky. It is simpler and less tiring to operate than hand-clamp type pumps.
Combined with a digital pressure calibrator of suitable range, it is used to calibrate pressure and differential pressure transmitters and pressure gauges in the field.
Key features
- Simple structure and low operating effort
- Compact and easy to carry, leak-resistant, easy to maintain
- Works with pure water or hydraulic oil; tolerant of dirt and humidity
- Generates vacuum and pressure from -0.09 to 60 MPa
- Compatible with digital pressure calibrators of various ranges
- Filling port, pre-load handwheel, suction valve, regulating valve and pressurising handwheel
Technical data
| Model | AG-CAL-106 |
| Pressure range | -0.09 to 60 MPa |
| Medium | Pure water or 46# hydraulic oil |
| Min. adjustment | 10 kPa |
| Output ports | 2 x M20 x 1.5 |
| Dimensions (L x W x H) | 290 x 150 x 110 mm |
| Operation | Manual, handwheel pressurisation |
Applications
- Calibration of pressure and differential pressure transmitters
- Verification of precision and industrial pressure gauges
- Testing of pressure sensors and switches
- On-site calibration in plants and at field instruments
Hazardous areas
Standard version for safe areas. Ask us for hazardous-area options.
Supplied on quotation and configured to your requirements (medium, adapters, reference calibrator). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-CAL-106
Data sheet
- Hazardous area
- Safe area (options on request)
- Output
- Pressure source (no indication)
- Process connection
- 2 x M20 x 1.5
- Measuring principle
- Manual hydraulic pressure source
- Max. pressure
- 60 MPa
