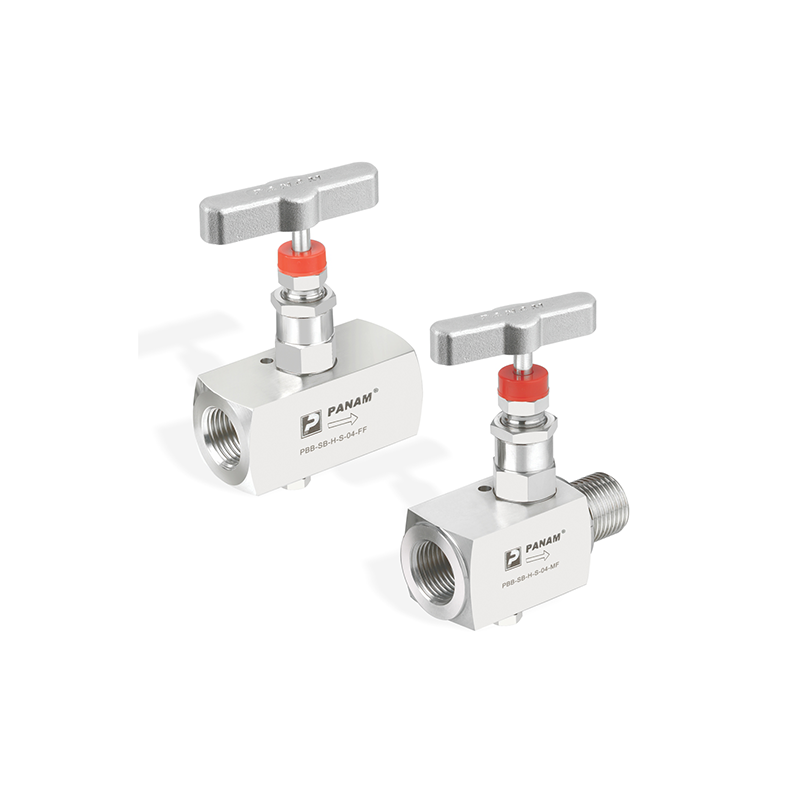

PANAM Needle Valve SB Series (Square Body, up to 10,000 psi)
Square body needle valves and block and bleed valves, 1/8" to 1", 6 mm to 25 mm OD and M20x1.5, hard or soft seat, 6,000 psi (414 bar) or 10,000 psi (689 bar). SS 316 standard, CS, Monel 400, Hastelloy C276, Inconel 625/825, duplex and super duplex. NACE MR0175 / ISO 15156.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM Needle Valves SB Series are square body valves designed for connecting gauges and other instruments to process lines carrying hazardous and corrosive media at pressures up to 10,000 psi (689 bar). They allow easy blocking and bleeding of pressure during maintenance and calibration of pressure transmitters or gauges. The range includes needle valves (PNV) and block and bleed valves (PBB), with hard seat (non-rotating V tip or ball tip) or soft seat construction.
Valves are precision machined and available with PANAM tube fitting ends (inch or metric), male, female, male x female, tube socket weld and pipe socket weld connections, in NPT, BSPT, BSPP and metric threads. The product complies with NACE MR0175 / ISO 15156 with heat code traceability, and all materials are supplied in compliance with ASTM specifications.
Each valve is hydrostatically tested in accordance with MSS-SP-99 at 1.5 times the maximum working pressure, with seat leakage test at 1.1 times, and is also tested with nitrogen gas at 1,000 psi (6.9 MPa) for seat, seal and shell leakage. Vibration, temperature and helium tests are available on request.
Key features
- Non-rotating V tip or ball tip forming a bearing joint with the stem, preventing scoring and galling of the seat
- Safety bonnet lock preventing accidental disassembly
- Stem threads rolled and hard plated; mirror finish stem (16 RMS) for long packing life
- Adjustable packing below stem threads, isolating threads from process media
- Safety back seating providing a secondary stem seal in full open position
- Metal to metal body to bonnet seal and dust cap protecting the bonnet assembly
- Options: locking arrangement, anti-tamper key, regulating stem, oxygen cleaning, low temperature, Grafoil packing for high temperature
Standard specification
| Valve types | Needle valve (PNV), block and bleed valve (PBB) |
|---|---|
| Seat | Hard seat (V tip or ball tip); soft seat Delrin (std), PCTFE or PEEK; soft tip PEEK (std), PTFE or PCTFE |
| Maximum working pressure | 6,000 psi (414 bar) or 10,000 psi (689 bar) |
| Connection sizes | 1/8" to 1", 6 mm to 25 mm OD, M20x1.5 |
| End connections | PANAM tube fitting, male x male, female x female, male x female, tube socket weld, pipe socket weld |
| Threads | NPT, BSPT, BSPP, metric |
| Body material | SS 316 (A479-316) standard; CS A105N, Monel 400, Hastelloy C276, Inconel 625, Inconel 825, duplex F51, super duplex F53/F55, 6MO |
| Stem packing | PTFE (std), PCTFE, Grafoil |
| Temperature (PTFE packing) | -54 to 232°C (-65 to 450°F) |
| Temperature (PCTFE packing) | -60 to 149°C (-76 to 300°F) |
| Temperature (Grafoil packing) | -40 to 648°C (-40 to 1198°F) |
| Testing | MSS-SP-99 hydrostatic test, nitrogen gas test at 1,000 psi |
Configurations
| Type | Seat | Ends | Sizes | Example part number |
|---|---|---|---|---|
| Needle valve | Hard | PANAM tube fitting (inch) | 1/8" to 1" | PNV-SB-H-S-04-OD |
| Needle valve | Hard | PANAM tube fitting (metric) | 6 mm to 25 mm | PNV-SB-H-S-M12-OD |
| Needle valve | Hard | Male x Male | 1/8" to 1", M20x1.5 | PNV-SB-H-S-08-MM |
| Needle valve | Hard | Female x Female | 1/8" to 1", M20x1.5 | PNV-SB-H-S-04-FF |
| Needle valve | Hard | Male x Female | 1/8" to 1", 3/4" x 1/2" | PNV-SB-H-S-08-MF |
| Block and bleed | Hard | Male x Male / Female x Female / Male x Female | 1/8" to 1", M20x1.5 | PBB-SB-H-S-08-MF |
| Needle valve | Soft | Male x Male / Female x Female / Male x Female | 1/4" to 1", M20x1.5 | PNV-SB-S-S-08-MM |
| Block and bleed | Soft | Male x Male / Female x Female / Male x Female | 1/4" to 1", M20x1.5 | PBB-SB-S-S-12-FF |
The part number is built as valve type (PNV needle, PBB block and bleed), series (SB square body), seat (H hard, S/S1/S2 soft seat, ST/ST1/ST2 soft tip), material, connection size, thread type (blank NPT, R BSPT, G BSPP), connection type, options and working pressure (blank 6,000 psi, 10K 10,000 psi). Example: PNV-SB-H-S-08G-FF-SG-10K = needle valve, square body, hard seat, SS 316, 1/2" BSPP female x female, NACE MR0175, 10,000 psi.
Applications
Connecting pressure gauges, switches and transmitters to process lines, isolation and bleed during instrument maintenance and calibration, sour gas service (NACE option). Instrumentation and process lines in oil and gas, refineries, petrochemical and chemical plants, power generation and offshore installations.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-NV-SB
Data sheet
- Manufacturer series
- SB Series
- Product type
- Instrumentation needle valve
- Size range
- 1/8 in to 1 in
- Pressure rating
- 10000 psi
- Material
- SS 316 standard (alloys on request)
- Origin
- India
